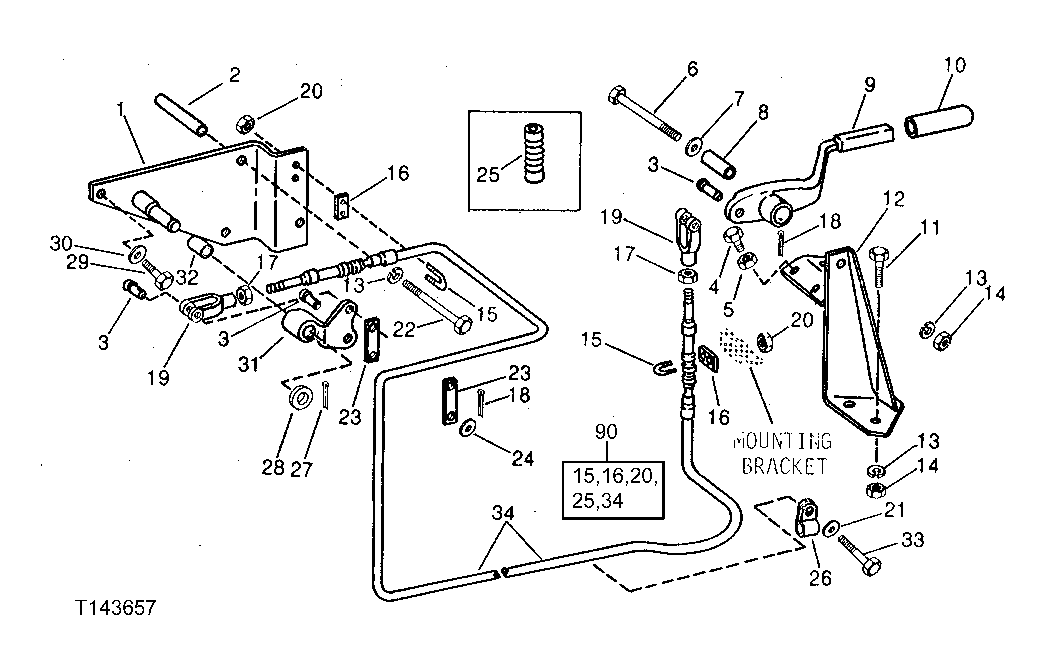

MAIN WINCH CONTROL LEVER AND LINKAGE (WHEN AT46669 KIT HAS BEEN INSTALLED AS A REPLACEMENT PART) (SERIAL NO. -218191) [02I13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( AT37527 USE IF AVAILABLE)
2	T25569	2	BUSHING	-
3	P46404	5	Pin Fastener	-
4	19H1648	1	Cap Screw	3/8" X 3/4"
5	14H732	1	Nut	3/8"
6	19H3057	1	Cap Screw	1/2" X 2-3/4"
7	24H1254	1	Washer	17/32" X 1-1/8" X 0.105"
8	H23248	1	BUSHING	-
9	T37057	1	LEVER	-
10	T37058	1	GRIP	-
11	19H2898	3	Cap Screw	1/2" X 1-1/4"
12	AT37532	1	SUPPORT	-
13	12H301	6	Lock Washer	1/2"
14	14H1040	4	Nut	1/2", (SUB FOR 14H809)
15	T13988	2	U-BOLT	(B)
16	T15021	2	STRAP	(B)
17	14H649	2	Nut	1/4"
18	11M7079	4	Cotter Pin	2.500 X 12 MM
19	T184870	2	YOKE	(SUB FOR T38708)
20	14H826	4	Nut	(B) 1/2"
21	12H304	1	Lock Washer	3/8"
22	19H2211	2	Cap Screw	1/2" X 5"
23	T38710	2	ADJUSTING STRAP	-
24	24H1136	2	Washer	11/32" X 11/16" X 0.065"
25	T48413	2	BOOT	(B) (USE WITH AT43015)
26	T24958	1	Clip	-
27	11M7082	1	Cotter Pin	2.500 X 25 MM
28	24H1181	1	Washer	13/16" X 1-1/8" X 0.060"
29	19H2633	1	Cap Screw	3/8" X 1-1/2"
30	24H1682	1	Washer	13/32" X 7/8" X 0.120"
31	T38709	1	LEVER	-
32	T13742	1	BUSHING	-
33	19H1726	1	Cap Screw	3/8" X 2-1/4"
34	AT151408	1	PUSH PULL CABLE	(B) (SUB FOR AT43015 AND AT83372)
..	AT46669	1	KIT	AUXILIARY WINCH (CONTAINS ALL PARTS IDENTIFIED BY (B) AND ONE AND PAGES IN FOOTNOTE ON PAGE SEAT SUPPORT M
