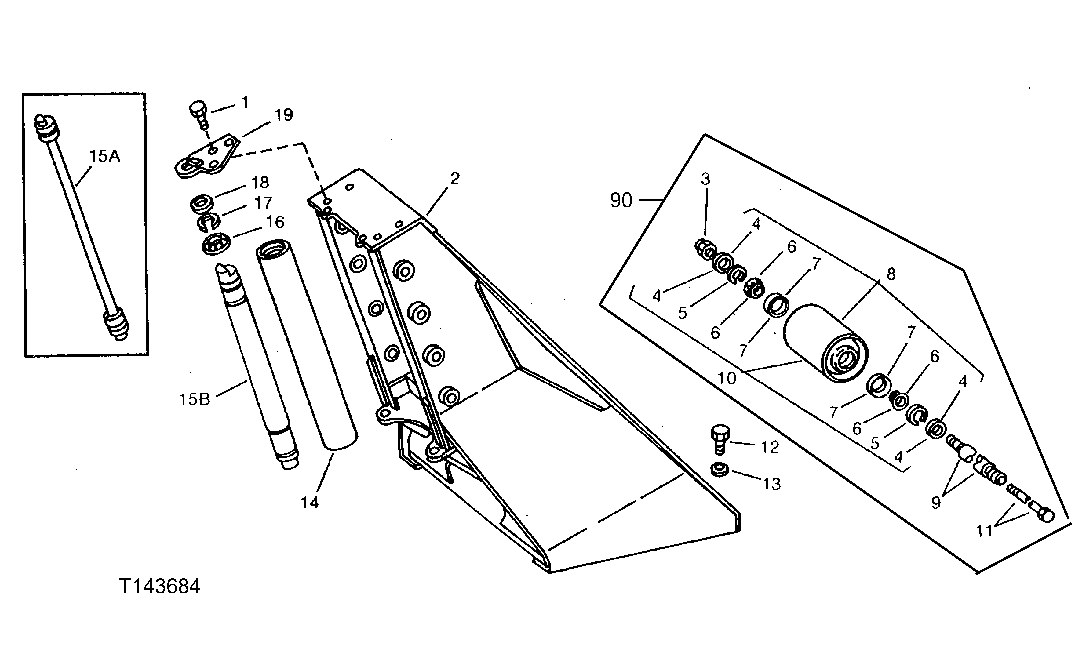

LOG ARCH AND FAIRLEAD (SERIAL NO. 218109- ) [02G21]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1346	6	CAP SCREW	5/8" X 1-5/8"
2	-	1	Part 2	( AT36250 - NO LONGER AVAILABLE)
3	T38248	1	Lock Nut	(A) (1 USED WITH MAIN WINCH, 2 USED WITH AUX. WINCH)
4	AT43762	1	SEAL	(A) (2 USED WITH MAIN WINCH, 4 USED WITH AUXILIARY WINCH)
5	T44932	2	Snap Ring	(A) 4.27 MM (.168") THICKNESS
5	T44934	2	Snap Ring	(A) 4.37 MM (.172") THICKNESS
5	T44935	2	Snap Ring	(A) 4.45 MM (175") THICKNESS
5	T44933	2	Snap Ring	(A) 4.52 MM (.178") THICKNESS
5	T44936	2	Snap Ring	(A) 4.60 MM (.181") THICKNESS
5	T44937	2	Snap Ring	(A) 4.68 MM (.184") THICKNESS
5	T44931	2	Snap Ring	(A) 4.78 MM (.188") THICKNESS
6	JD9058	1	Bearing Cone	(A) (2 USED WITH MAIN WINCH, 4 USED WITH AUX. WINCH)
7	JD9121	1	Bearing Cup	(A) (2 USED WITH MAIN WINCH, 4 USED WITH AUX. WINCH)
8	AT43761	1	ROLL	(A) (1 USED WITH MAIN WINCH, 2 USED WITH AUXILIARY WINCH)
9	T44930	1	SHAFT	(A) (1 USED WITH MAIN WINCH, 2 USED WITH AUXILIARY WINCH)
10	AT43760	1	ROLLER	(A) (1 USED WITH MAIN WINCH, 2 USED WITH AUXILIARY WINCH)
11	T37466	1	BOLT	(A) (1 USED WITH MAIN WINCH, 2 USED WITH AUXILIARY WINCH)
12	19H1707	8	CAP SCREW	3/4" X 2-3/4"
13	T25922	8	WASHER	(USE IF AVAILABLE)
13	T151797	8	Washer	(SUB FOR T25922 OR T134960)
14	T37460	2	ROLLER	(SUB T47834, T47829 AND (2) JD8656)
14	T47834	2	ROLLER	-
16	JD9435	4	Ball Bearing	-
16	JD8656	4	BALL BEARING	-
17	H26262	4	RING	-
18	24H1569	4	Washer	1-25/32" X 2-1/4" X 0.036"
19	AT36251	1	BRACKET	LEFT (ILLUSTRATED)
19	AT36252	1	BRACKET	RIGHT (NOT ILLUSTRATED)
90	-	1	Part 32	( AT40858 - NO LONGER AVAILABLE) (UNIT MUST BE EQUIPPED WITH 98.3 CM3 (6.00 CUBIC-INCH) (HYDRAULIC PUMP) (CONTAINS ALL PARTS IDENTIFIED BY (A) ON THIS AND PAGES LISTED IN FOOTNOTE ON PAGE TITLED LOG ARCH AND FAIRLEAD (SERIAL NO. -218
15A	T37461	2	SHAFT	(SUB T47829, T47834 AND (2) JD8656)
15A	T47829	2	SHAFT	(SUB T77677)
15B	T77677	2	SHAFT	-

LOG ARCH AND FAIRLEAD (SERIAL NO. 218109- ) [02G21]
