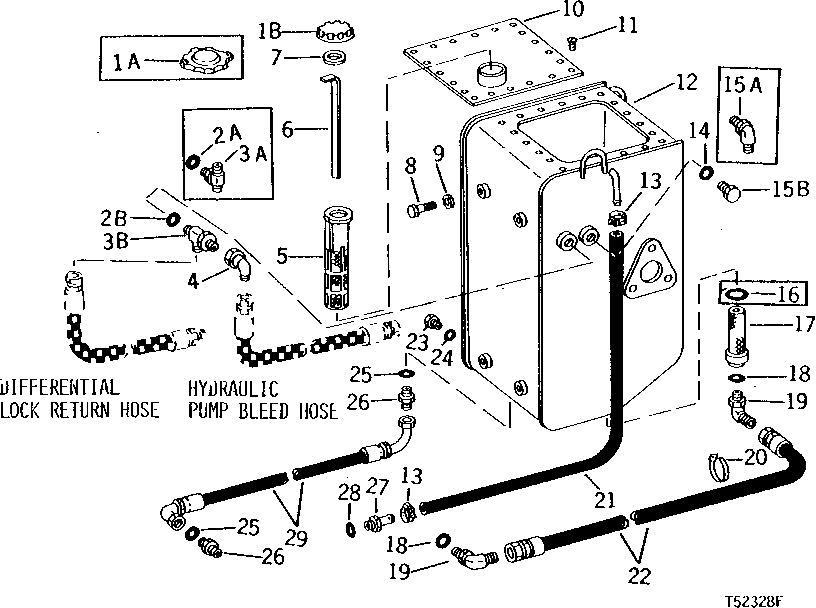

HYDRAULIC SUMP TANK AND HOSES [02C24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	AT58158	1	ELBOW FITTING	90°
5	AT161638	1	Strainer	(SUB FOR AT36652)
6	T39050	1	DIPSTICK	-
7	T103461	1	Sealing Washer	(SUB FOR T25551)
8	19H2472	4	Cap Screw	HS, SAE 8, 1/2" X 1"
9	12H301	4	Lock Washer	1/2"
10	AT36495	1	COVER	-
11	37H5	20	SCREW	1/4" X 3/8"
12	AT54665	1	HYDRAULIC RESERVOIR	-
12	AT38636	1	HYDRAULIC RESERVOIR	(SUB AT54665)
13	AR21837	2	Clamp	(SUB FOR T20164)
14	R26448	1	O-Ring	-
16	-	1	Part 22	( H35256 NO LONGER AVAILABLE)
17	-	1	Part 23	( T37784, AT39264, AT32674 NOT AVAILABLE)
18	U13639	2	O-Ring	-
19	X20C5OX-S	2	Elbow Fitting	(SUB FOR AT35600) 90°
20	H77698	2	Tie Band	(SUB FOR AT30417 AND T44946)
21	T38283	1	HOSE	13 MM X 1 308 MM (1/2" X 51-1/2")
22	AT36496	1	HYDRAULIC HOSE	1-5/8" X 978 MM (38-1/2") X 1-5/8"
23	R27175	1	Drain Plug	-
24	U12547	1	O-Ring	(SUB FOR F3171R)
25	R29936	2	O-Ring	-
26	T26767	2	Fitting	(SUB FOR T37560)
27	T38282	1	Hose Fitting	-
28	R26375	1	O-Ring	-
29	AT36497	1	HYDRAULIC HOSE	1-5/16" X 1 304 MM (51-1/4") X 1-5/16"
30	PM38655	1	Sealant	60 ML (2 OZ.) (USE FOR HYD. SUMP TANK COVER) (MAKES SEVERAL GASKETS) (NOT ILLUSTRATED) (SUB FOR T43514) (SUB FOR AT26340)
1A	T25552	1	CAP	(SUB T50842)
1B	T47251	1	FILLER CAP	(SUB FOR T40435)
1B	T50842	1	FILLER CAP	(SUB FOR T40435 AND T47251)
2A	R26448	1	O-Ring	-
2B	R26448	1	O-Ring	-
3A	AT37518	1	Tee Fitting	-
3B	AT37518	1	Tee Fitting	-
15A	AT35121	1	Elbow Fitting	90°
15B	R27218	1	Fitting Plug	-
