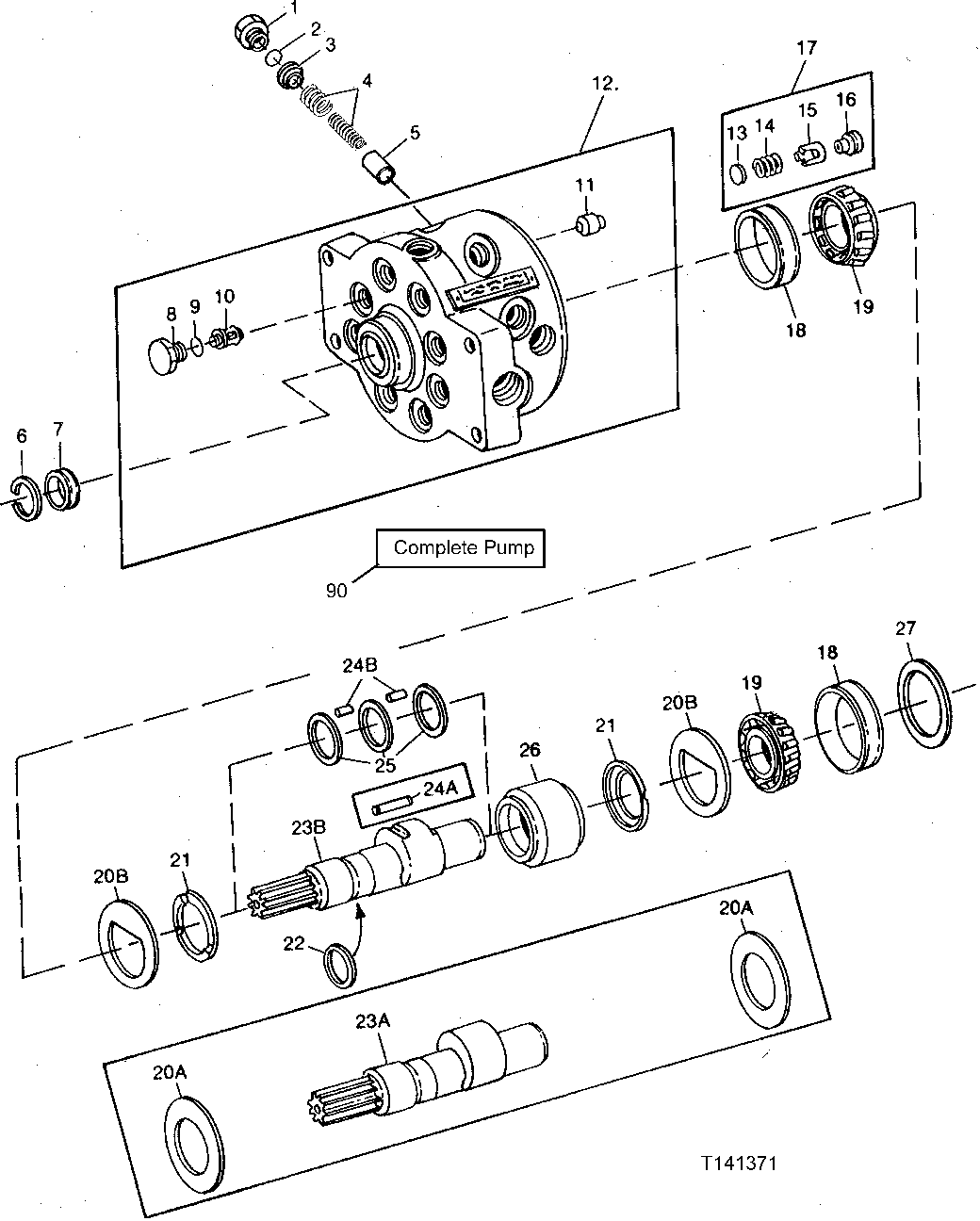

HYDRAULIC PUMP - MODEL JD1 65 CM3 (4 IN.3) (REPLACEMENT PUMP WITH SERIAL PLATE) [02B16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R70648	8	DRAIN PLUG	-
2	R56751	8	O-Ring	-
3	AR101237	1	SHIELD	(SET OF 8)
4	AR96408	1	SPRING	(SET OF 16)
5	R70976	8	PISTON	-
6	R26137	1	Snap Ring	-
7	RE28790	1	SEAL	(SUB FOR AR52224)
8	R78293	8	FITTING	-
9	R27149	8	O-Ring	-
10	AR53301	8	VALVE	(INLET)
11	R105583	8	Valve Seat Insert	-
12	RE11811	1	HOUSING	(MODEL TE1) (MARKED R74914)
13	R49297	8	DISK	-
14	R39228	8	SPRING	-
15	R48738	8	GUIDE	-
16	R83508	8	Stop	(SUB FOR R72886)
17	RE23382	8	Valve	(OUTLET) (SUB FOR AR96613)
18	JD8223	2	Bearing Cup	-
19	JD8192	2	BEARING CONE	-
21	R72507	2	Thrust Washer	-
22	R77611	1	SEALING WASHER	(SEALING) (SUB FOR R68252 OR RE11777)
25	R85557	3	WASHER	-
26	R80558	1	Bearing Race	(SUB FOR R72509)
27	R27478	1	SHIM	0.15MM (.006")
27	R27479	1	SHIM	0.25MM (.010")
90	AR101288	1	HYDRAULIC PUMP	-
20A	R77903	2	WASHER	(SUB FOR R45425)
20B	R79151	2	Lock Washer	(USE WITH R79154)
23A	R71599	1	SHAFT	(SUB R79154) (ALSO ORDER (2) R79151)
23B	R79154	1	Shaft	-
24A	R116712	25	Needle Roller	(SUB FOR R45422 AND (3) R85557)
24B	R116713	50	Needle Roller	(SUB FOR R85558)

HYDRAULIC PUMP - MODEL JD1 65 CM3 (4 IN.3) (REPLACEMENT PUMP WITH SERIAL PLATE) [02B16]
