Открытый узел

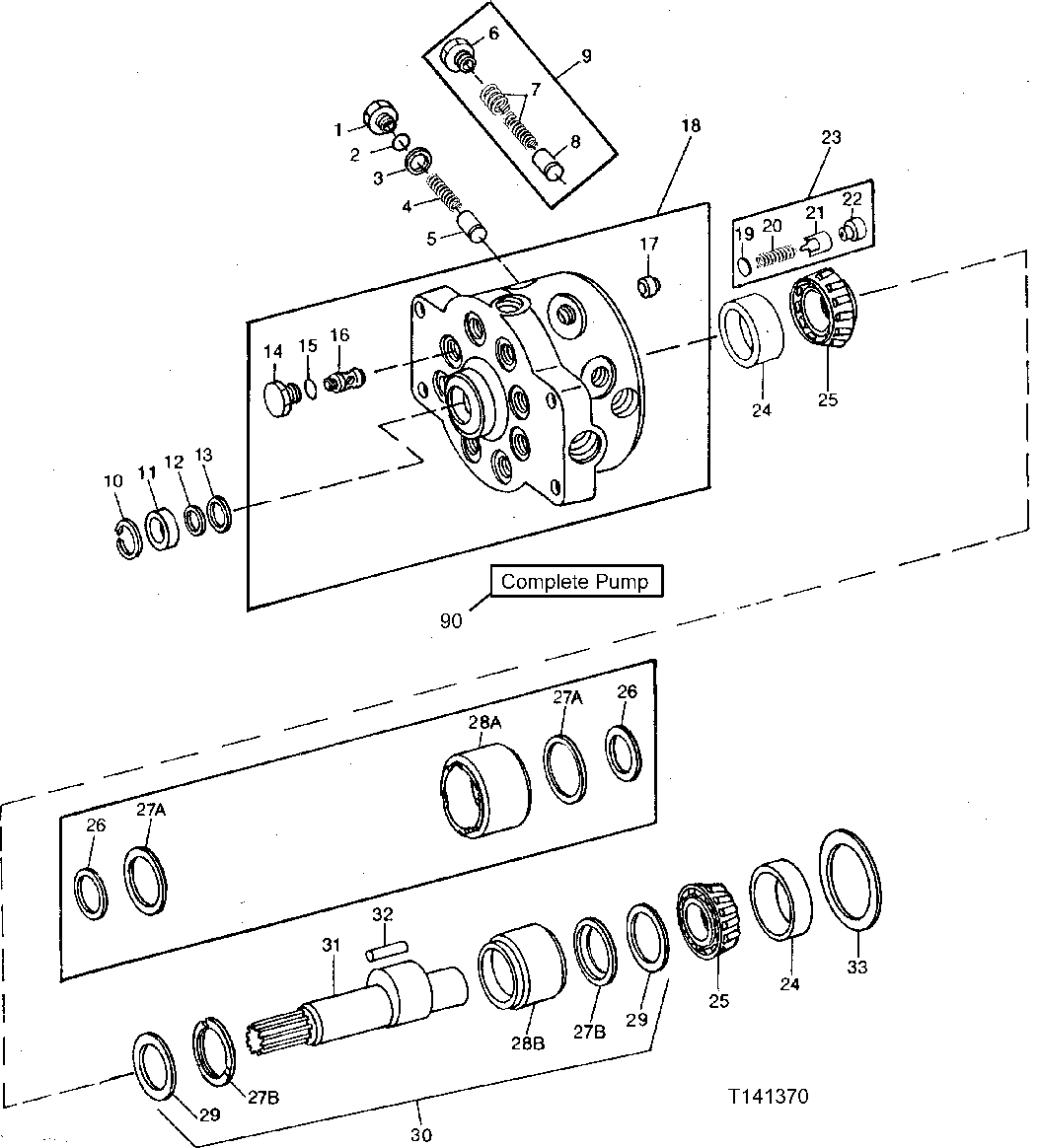

HYDRAULIC PUMP 66 CM3 (4 IN.3) (PUMP LESS SERIAL PLATE) [02B06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R75642	8	Drain Plug	(SUB FOR R44745)
2	U12547	8	O-Ring	(SUB R56751 AND AR101237, THIS APPLICATION) (SUB FOR (8) F3171R)
2	R56751	8	O-Ring	-
3	AR101237	1	SHIELD	(SET OF 8) (SUB FOR R56750)
4	AR55330	1	SPRING	(SET OF 8) (SUB FOR AR47516)
5	R51827	8	PISTON	(SUB RE11814) (SUB FOR R44824)
6	R70648	8	DRAIN PLUG	-
7	AR96408	1	SPRING	(SET OF 16)
8	R70976	8	PISTON	-
9	RE11814	1	NEEDLE BEARING	-
10	R26137	1	Snap Ring	-
11	RE28790	1	SEAL	(SUB FOR AR40398 OR AR52224)
12	R56753	1	SHIM	-
13	R39729	1	O-RING	-
14	R78293	8	FITTING	(SUB FOR R44823)
15	R27149	8	O-Ring	-
16	AR53301	8	VALVE	(INLET)
17	R105583	8	Valve Seat Insert	-
18	AR51070	1	HOUSING	(MARKED R48103) (SUB AR101288) (ALSO ORDER R26906)
19	R49297	8	DISK	(SUB FOR R39074)
20	R39228	8	SPRING	-
21	R48738	8	GUIDE	(SUB FOR R39174)
22	R83508	8	Stop	(SUB FOR R39175, R49298 OR R72886)
23	RE23382	8	Valve	(OUTLET) (SUB FOR AR52785 OR AR96613)
24	JD8223	2	Bearing Cup	-
25	JD8192	2	BEARING CONE	-
26	R45423	2	WASHER	(SUB RE12038) (ALSO ORDER RE11814)
29	R77903	2	WASHER	(SUB FOR R45425)
30	RE12038	1	AXLE KIT	(ALSO ORDER RE11814) (SUB FOR AR95470)
31	R44743	1	SHAFT	(A) (SUB R79156 AND (2) R79151)
32	R116712	25	Needle Roller	(SUB FOR R77904 OR R45422)
33	R27479	1	SHIM	0.25MM (0.010")
33	R27478	1	SHIM	0.15MM (0.006")
90	AR99845	1	HYDRAULIC PUMP	(SUB AR101288) (ALSO ORDER R26906) (SUB FOR AR52952)
90	AR52952	1	HYDRAULIC PUMP	(SUB AR101288) (ALSO ORDER R26906)
27A	R72429	2	WASHER	(BRONZE) (SUB RE12038) (ALSO ORDER RE11814) (SUB FOR R45424)
27B	R72507	2	Thrust Washer	-
28A	R44744	1	BEARING RACE	(SUB RE12038) (ALSO ORDER RE11814)
28B	R80558	1	Bearing Race	(SUB FOR R72509)

HYDRAULIC PUMP 66 CM3 (4 IN.3) (PUMP LESS SERIAL PLATE) [02B06]

Нет текстового описания
