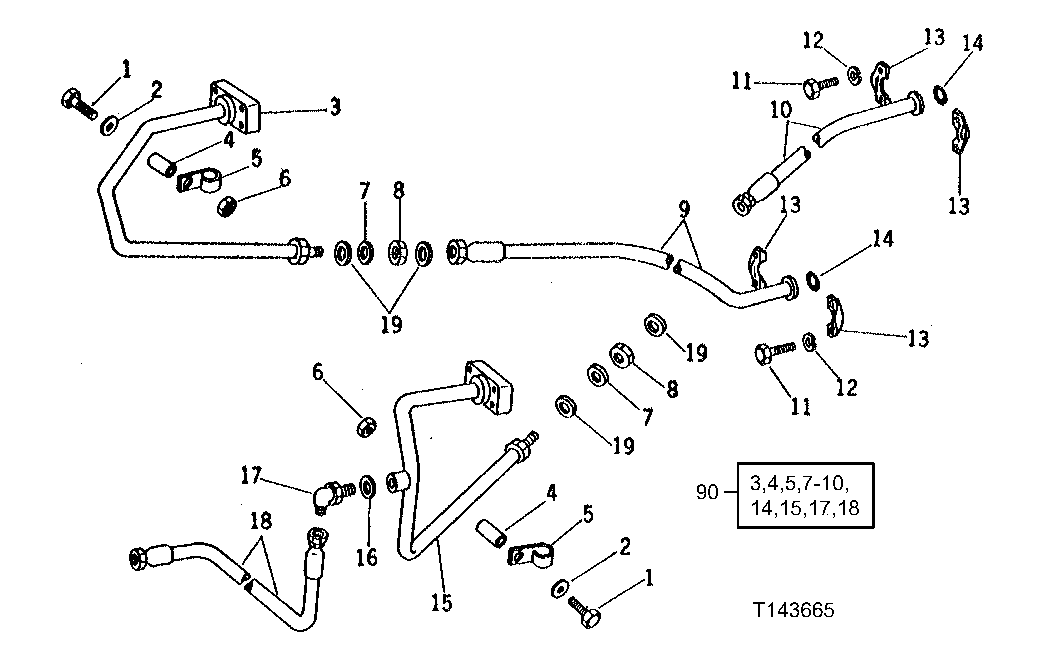

AUXILIARY WINCH PRESSURE AND RETURN LINES [02J15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2855	2	Cap Screw	3/8" X 3-1/4"
2	24H1682	2	Washer	13/32" X 7/8" X 0.120"
3	AT36619	1	LINE	(SUB AT39991, R36619 AND (2) 24H1518)
3	AT39991	1	LINE	(A)
4	T31274	2	Spacer	(A)
5	F2114R	2	CLIP	(A)
6	14H812	2	NUT	3/8"
7	-	2	Part 8	(A) ( C3146E NO LONGER AVAILABLE)
8	R36619	2	NUT	(A)
9	AT36632	1	HYDRAULIC HOSE	(A) 1-5/16" X 1 295 MM (51") X 1"
10	AT36631	1	HYDRAULIC HOSE - FABRICATE	(A) 1-5/16" X 1 245 MM (49") X 1"
11	19H3239	8	Cap Screw	3/8" X 1-1/4"
12	12H304	8	Lock Washer	3/8"
13	H61354	4	Flange Fitting	(SUB FOR R29844)
14	U12037	2	O-Ring	(A)
15	AT36617	1	LINE	(SUB AT39990, R36619 AND (2) 24H1518)
15	AT39990	1	LINE	(A)
16	R26448	1	O-Ring	-
17	AT35121	1	Elbow Fitting	(A) 90°
17	R27218	1	Fitting Plug	(USE WITH JOHN DEERE WINCH)
18	AT37543	1	HYDRAULIC HOSE - FABRICATE	(A) 9/16" X 483 MM (19") X 9/16"
19	24H1518	4	WASHER	1-13/32" X 2-3/4" X 0.060"
90	AT40858	1	WINCH	(UNIT MUST BE EQUIPPED WITH 100 CM3 (6.00 CU. IN.) HYDRAULIC PUMP) (NO LONGER AVAILABLE) (CONTAINS ALL PARTS IDENTIFIED BY (A) ON THIS AND PAGES LISTED IN FOOTNOTE ON PAGE TITLED LOG ARCH AND FAIRLEAD (SERIAL NO. -218
