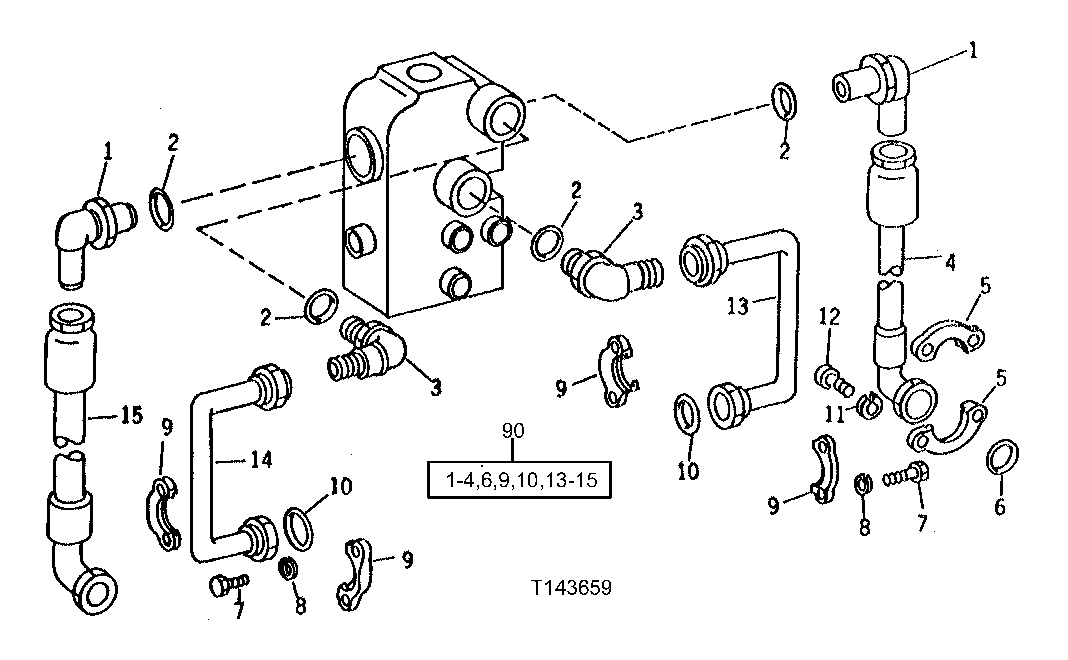

AUXILIARY WINCH CONTROL VALVE REEL LINES AND PRESSURE AND RETURN HOSES [02J17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT36607	2	ELBOW FITTING	(A) 90°
2	U13639	4	O-Ring	(A)
3	X20C5OX-S	2	Elbow Fitting	(A) (SUB FOR AT35600) 90°
4	AT36618	1	HYDRAULIC HOSE	(A)
5	H61354	4	Flange Fitting	(SUB FOR R29844)
6	U12037	2	O-Ring	(A)
7	19H2993	8	Cap Screw	1/2" X 1-1/2"
8	12H301	8	Lock Washer	1/2"
9	X51H-24	8	Flange Fitting	(A) (SUB FOR R29422 OR T47649)
10	B3690R	2	O-Ring	(A)
11	12H304	8	Lock Washer	3/8"
12	19H3239	8	Cap Screw	3/8" X 1-1/4"
13	AT36614	1	LINE	(A) REEL IN
14	AT36615	1	LINE	(A) REEL OUT
15	AT36620	1	HYDRAULIC HOSE	(A)
90	AT40858	1	WINCH	(UNIT MUST BE EQUIPPED WITH 100 CM3 (6.00 CU. IN.) HYDRAULIC PUMP) (NO LONGER AVAILABLE) (CONTAINS ALL PARTS IDENTIFIED BY (A) ON THIS AND PAGES LISTED IN FOOTNOTE ON PAGE TITLED LOG ARCH AND FAIRLEAD (SERIAL NO. -218

AUXILIARY WINCH CONTROL VALVE REEL LINES AND PRESSURE AND RETURN HOSES [02J17]
