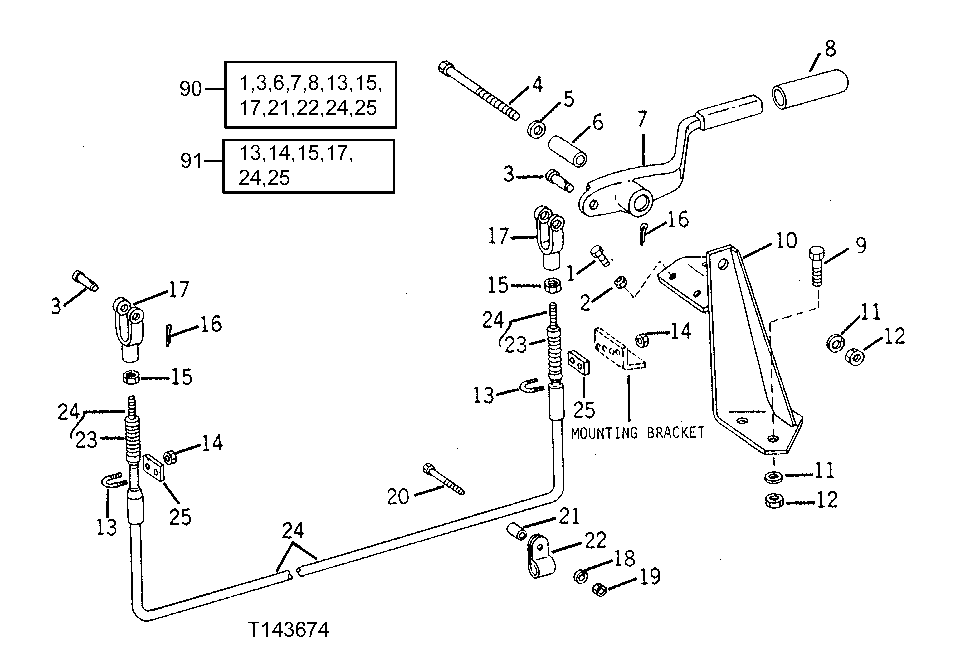

AUXILIARY WINCH CONTROL LEVER AND LINKAGE (SERIAL NO. 218192- ) [02J02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2676	1	Cap Screw	(A) 3/8" X 1"
2	14H732	1	Nut	3/8"
3	P46404	2	Pin Fastener	(A)
4	19H3544	1	Cap Screw	1/2" X 4-1/2"
5	24H1254	1	Washer	17/32" X 1-1/8" X 0.105"
6	H23248	1	BUSHING	(A)
7	T37884	1	LEVER	(A)
8	T37058	1	GRIP	(A)
9	19H2898	3	Cap Screw	1/2" X 1-1/4"
10	AT37532	1	SUPPORT	-
11	12H301	4	Lock Washer	1/2"
12	14H1040	4	Nut	1/2", (SUB FOR 14H809)
13	T13988	2	U-BOLT	(A) (B)
14	14H786	4	Nut	(B) 1/4"
15	14H882	2	Nut	(A) (B) 5/16"
16	11M7079	2	Cotter Pin	2.500 X 12 MM
17	L299T	2	Yoke	(A) (B)
18	12H304	1	Lock Washer	3/8"
19	14H812	1	NUT	3/8"
20	19H1726	1	Cap Screw	3/8" X 2-1/4"
21	N52528	1	Bushing	(A) (SUB FOR T24380)
22	T24958	1	Clip	(A)
23	T48414	2	BOOT	-
24	AT46667	1	PUSH PULL CABLE	(A) (B)
25	T15021	2	STRAP	(A) (B)
90	AT40858	1	WINCH	(UNIT MUST BE EQUIPPED WITH 100 CM3 (6.00 CUBIC-INCH) (NO LONGER AVAILABLE) (CONTAINS ALL PARTS IDENTIFIED BY (A) ON THIS AND PAGES LISTED IN FOOTNOTE ON PAGE TITLED LOG ARCH AND FAIRLEAD (SERIAL NO. -218
91	AT46669	1	KIT	AUXILIARY WINCH (CONTAINS ALL PARTS IDENTIFIED BY (B) AND ONE AND PAGES IN FOOTNOTE ON PAGE SEAT SUPPORT M

AUXILIARY WINCH CONTROL LEVER AND LINKAGE (SERIAL NO. 218192- ) [02J02]

Нет текстового описания
