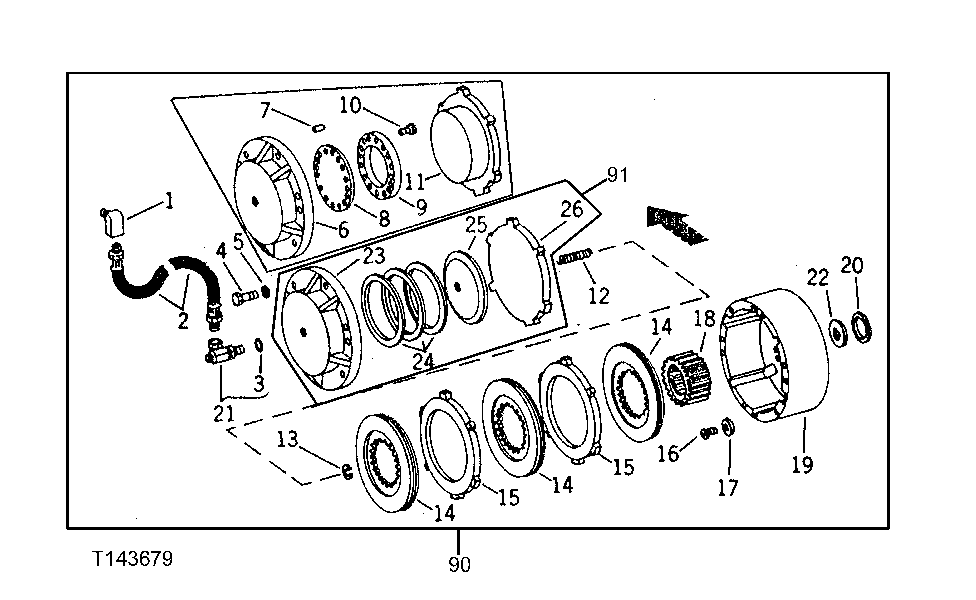

AUXILIARY WINCH BRAKE AND CLUTCH DISK [02J06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T12293	1	FITTING	-
2	AT33835	1	HYDRAULIC HOSE - FABRICATE	-
3	R26286	1	O-Ring	(USED WHEN AT47443 HAS BEEN INSTALLED AS A REPLACEMENT PART)
4	19H2993	6	Cap Screw	1/2" X 1-1/2"
4	19H2473	6	Cap Screw	1/2" X 1-3/4"
5	12H301	6	Lock Washer	1/2"
6	T34717	1	COVER	(SUB AT114208, T53242, AT76095, R27212 AND R26448, THIS APPLICATION) (ALSO ORDER AT47132 AND AH16830)
7	M17T	2	DOWEL PIN	-
8	T34716	1	DIAPHRAGM	(SUB AT114208, T53242, AT76095, R27212 AND R26448, THIS APPLICATION) (ALSO ORDER AT47132 AND AH16830)
9	T34718	1	RING	(SUB AT114208, T53242, AT76095, R27212 AND R26448, THIS APPLICATION) (ALSO ORDER AT47132 AND AH16830)
10	M882T	16	Screw	-
11	T34692	1	CLUTCH PLATE	(SUB AT114208, T53242, AT76095, R27212 AND R26448, THIS APPLICATION) (ALSO ORDER AT47132 AND AH16830)
12	R42762	6	SPRING	-
12	U15753	6	SPRING	-
13	T19810	1	SNAP RING	-
14	AT16844	3	DISK	(USE IF AVAILABLE) MIDDLE, (SUB FOR AT114483)
14	AT142063	3	CLUTCH DISK	(SUB FOR AT16844)
15	T33176	2	DISK	INTERMEDIATE
15	T19615	3	DISK	INTERMEDIATE
16	19H2469	6	Cap Screw	1/2" X 2-1/4"
17	T33177	6	WASHER	-
18	T59151	1	HUB	(SUB FOR T33175)
19	T39506	1	BRAKE DRUM	(SUB T118795, (3) T19615, (6) U15753 AND (6) 19H1777)
19	T58431	1	BRAKE DRUM	(SUB T118795 AND (6) 19H1777)
19	T118795	1	BRAKE DRUM	(SUB FOR T65349)
20	T19803	1	SEAL	-
21	AT47443	1	ELBOW FITTING	(SUB FOR T34719)
21	AT69462	1	SEAL KIT	(INCLUDES T72344) SEAL (USE ONLY WITH FITTING MARKED WITH AN "A")
22	U11021	1	BACK-UP RING	-
23	T53243	1	COVER	(A) (SUB AT114208, T53242, AT76095, R27212 AND R26448, THIS APPLICATION) (ALSO ORDER AT47132 AND AH16830)
24	T54200	3	WASHER	(A)
25	T75404	1	PISTON	(A) (SUB FOR T53241)
26	T53242	1	CLUTCH PLATE	(A)
90	-	1	Part 34	(UNIT MUST BE EQUIPPED WITH 100 CM3 (6.00 CU. IN.) HYDRAULIC PUMP) ( AT40858 NO LONGER AVAILABLE) (CONTAINS ALL PARTS ON THIS PAGE AND PAGES LISTED IN FOOTNOTE ON PAGE TITLED LOG ARCH AND FAIRLEAD (SERIAL NO. -218
91	AT54178	1	SEAL KIT	CLUTCH SEAL, (SUB AT114208, T53242, AT76095, R27212 AND R26448, THIS APPLICATION) (ALSO ORDER AT47132 AND AH16830) (CONTAINS ALL PARTS IDENTIFIED BY (A))

AUXILIARY WINCH BRAKE AND CLUTCH DISK [02J06]
