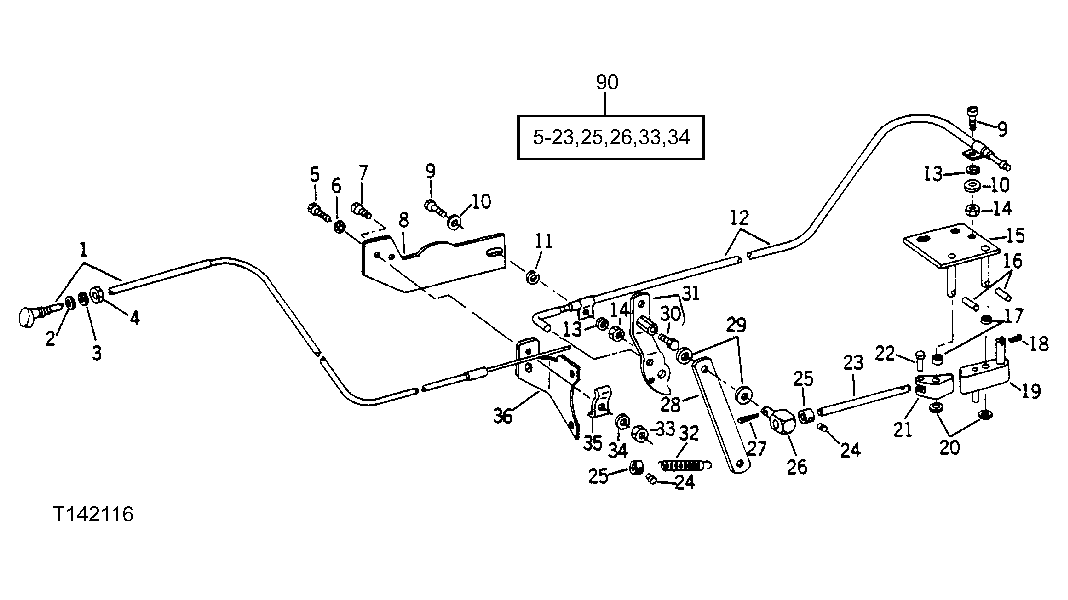

ANEROID CONTROL AND FUEL SHUT-OFF (ENGINE SERIAL NO. 430386-445948) [01E20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR61973	1	PUSH PULL CABLE	(FUEL SHUT-OFF)
2	24M7096	1	Washer	0.413" X 0.709" X 0.063"
3	12H304	1	Lock Washer	3/8"
4	14H774	1	Nut	3/8"
5	21H1319	1	Screw	(A) 0.164" X 7/8"
6	12M7084	1	Lock Washer	(A) 4.300 MM
7	37H44	1	Screw	(A) 0.154" X 3/8"
8	R57841	1	GUIDE	(A)
9	21H1295	2	Screw	(A) 0.190" X 5/8"
10	24H1283	2	Washer	(A) 7/32" X 1/2" X 0.049"
11	12H295	1	Lock Washer	(A) 0.190"
12	AR69541	1	PUSH PULL CABLE	(A)
13	12H246	2	LOCK WASHER	(A) 0.190"
14	14H631	2	Nut	(A) 0.190"
15	AR69539	1	BRACKET	(A)
16	34H228	2	SPRING PIN	(A) 3/32" X 9/16"
17	28H1611	2	Washer	(A) 0.269" X 0.405" X 5/16"
18	11M7077	1	Cotter Pin	(A) 1.600 X 25 MM
19	AR73544	1	BELLCRANK	(A)
20	B1664R	2	SHIM	(A)
21	R60649	1	LATCH	(A)
22	R61758	1	Pin	(A)
23	R61458	1	Shear Pin	(A)
24	R30725	2	SCREW	-
25	R54294	2	SHIFT COLLAR	(A)
26	R42912	1	SWIVEL	(A)
27	11M7079	1	Cotter Pin	2.500 X 12 MM
28	R55065	1	LEVER	-
29	24H1286	2	Washer	9/32" X 1/2" X 1/16"
30	R60921	1	SCREW	-
31	AR63565	1	LEVER	-
32	R26372	1	SPRING	(A)
33	14H605	1	Nut	(A) 0.164"
34	12H315	1	Lock Washer	(A) 0.164"
35	R53300	1	CLIP	-
36	R55066	1	BRACKET	-
90	AR74611	1	KIT	(INCLUDES AR69158) KIT, STARTING FUEL CONTROL (ALSO CAP, ((CONTAINS ALL PARTS IDENTIFIED BY (A))

ANEROID CONTROL AND FUEL SHUT-OFF (ENGINE SERIAL NO. 430386-445948) [01E20]
