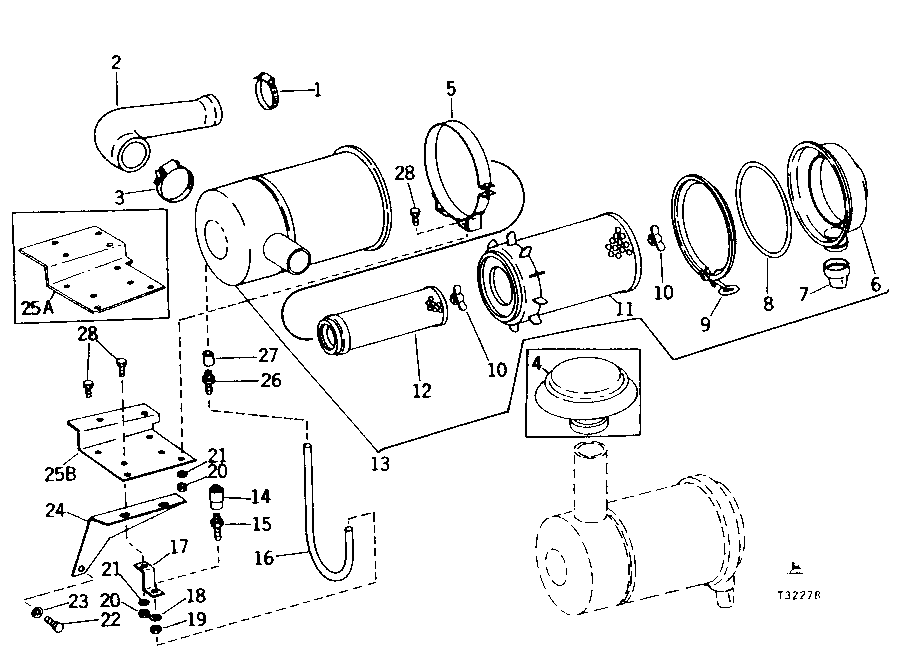

AIR CLEANER AND BRACKET (SERIAL NO. -218116) [01C23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR21841	1	Clamp	(SUB FOR AT38909)
2	T38088	1	HOSE	-
3	C16054	1	Clamp	(SUB FOR AT38908)
4	AT41253	1	EXHAUST CAP	(SUB FOR AT27820)
5	AT27818	2	CLAMP	-
6	AT27825	1	BOWL	-
7	R45096	1	Valve	(SUB FOR T23263, THIS APPLICATION)
8	T29667	1	RING	-
9	AT27826	1	CLAMP	-
10	AH20849	2	Wing Nut	(NO LONGER AVAILABLE)
11	AT27824	1	FILTER ELEMENT	PRIMARY
12	AT31227	1	FILTER ELEMENT	SECONDARY
13	AT36739	1	AIR CLEANER	-
13	AT42556	1	AIR CLEANER	-
14	AT25983	1	Air Restriction Indicator	(SUB FOR AT26536, THIS APPLICATION)
15	T21329	1	HOSE FITTING	-
16	T21328	1	HOSE	558.8 MM (1/4" X 22")
17	T27733	1	BRACKET	-
18	12H293	1	Lock Washer	7/16"
19	14H934	1	Nut	7/16"
20	14H812	6	NUT	3/8"
21	12H304	10	Lock Washer	3/8"
21	12H304	8	Lock Washer	3/8"
22	19H1833	1	Cap Screw	5/8" X 1-1/4"
23	12H294	1	Lock Washer	5/8"
24	T38090	1	SUPPORT	-
26	AT18687	1	HOSE FITTING	-
27	15H73	1	Coupling	1/8" X 1-1/4"
28	19H2284	10	Cap Screw	3/8" X 7/8"
28	19H2284	8	Cap Screw	3/8" X 7/8"
25A	-	1	Part 27	(SUB T38089)
25B	T38089	1	BRACKET	-
