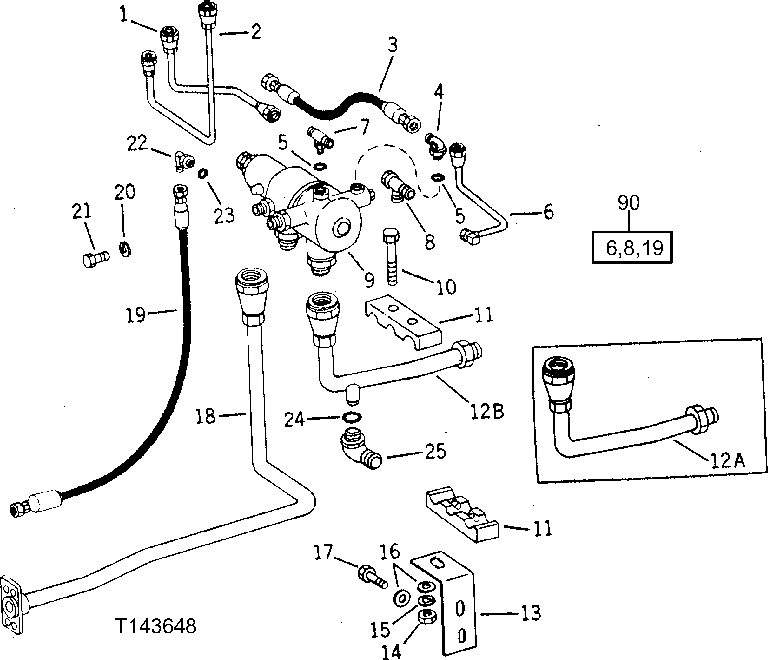

ACCUMULATOR AND PRESSURE CONTROL VALVE OIL LINES [02C16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT37487	1	BRAKE LINE	-
2	AT37490	1	LINE	(SUB AR45235, AT37092, R26286 AND T18891)
3	AT34784	1	HYDRAULIC HOSE - FABRICATE	9/16" X 508 MM (20") X 9/16", (SUB FOR AT37524)
4	AT35601	1	FITTING	-
4	AT35121	1	Elbow Fitting	-
5	R26448	2	O-Ring	-
6	AT37488	1	OIL LINE	(WITHOUT AUXILIARY WINCH)
6	AT37489	1	OIL LINE	(A) (WITH AUXILIARY WINCH)
7	AT36465	1	Tee Fitting	(WITHOUT AUXILIARY WINCH) (SUB FOR AR28997)
8	AT36921	1	Tee Fitting	(A) (WITH AUXILIARY WINCH)
9	-	1	Part 11	( AT36308 - NO LONGER AVAILABLE)
10	19H1820	1	Cap Screw	1/2" X 3"
11	T37099	2	HALF CLAMP	-
13	T38332	1	ANGLE	-
14	14H1040	1	Nut	1/2", (SUB FOR 14H809)
15	12H301	1	Lock Washer	1/2"
16	24H1625	3	Washer	17/32" X 1" X 0.120"
17	19H3385	2	Cap Screw	1/2" X 1-1/8"
18	AT36302	1	OIL LINE	-
19	AT36984	1	HYDRAULIC HOSE - FABRICATE	(A) 1/2" X 889 MM (35") X 1/2"
19	AT34784	1	HYDRAULIC HOSE - FABRICATE	9/16" X 508 MM (20") X 9/16"
20	R42729	3	Washer	-
21	19H2284	3	Cap Screw	3/8" X 7/8"
22	AT37092	1	ELBOW FITTING	-
23	R26286	1	O-Ring	-
24	R26448	1	O-Ring	-
25	AT35121	1	Elbow Fitting	90°
90	AT40858	1	WINCH	UNIT MUST BE EQUIPPED WITH 98 CM3 (6.00 CUBIC INCH) (NO LONGER AVAILABLE) (CONTAINS ALL PARTS IDENTIFIED BY (A) ON THIS AND PAGES LISTED IN FOOTNOTE ON PAGE TITLED LOG ARCH AND FAIRLEAD (SERIAL NO. -218
12A	AT36299	1	LINE	(SUB AT55830, R27218 AND R26448)
12B	AT55830	1	LINE	-
