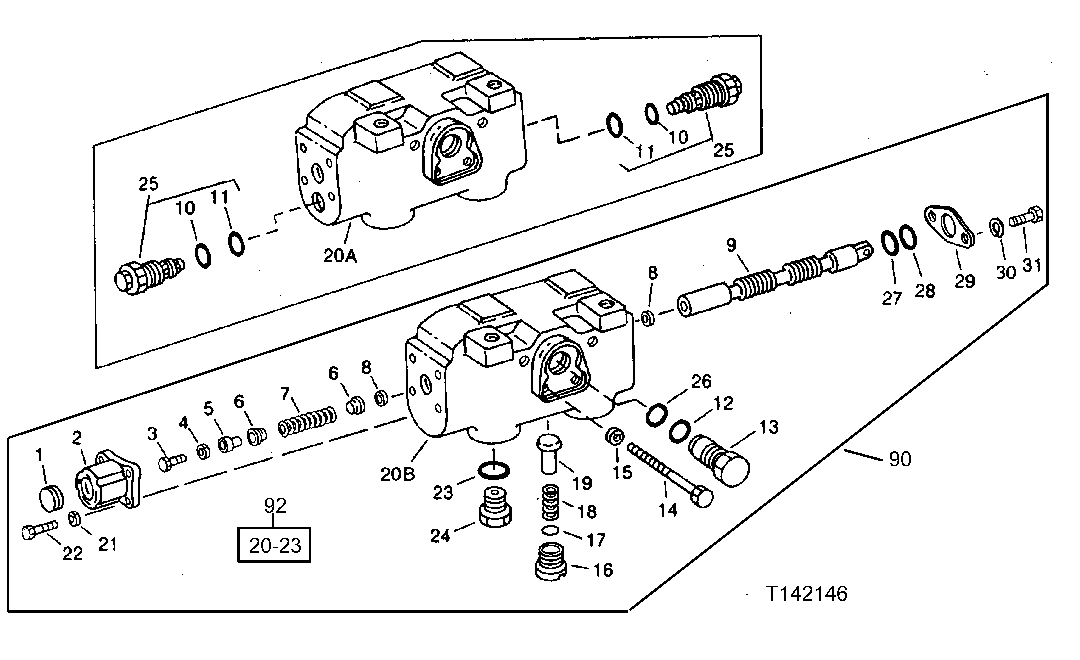

TILT CONTROL VALVE (WITH TRAIL BUILDING BLADE) [02D01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T75985	1	COVER	(SUB FOR U17387)
2	T75985	1	COVER	(SUB FOR U17385)
3	19H3295	1	Screw	(SUB FOR U40662) HS, SAE 8, 3/8" X 3/4"
4	U11298	1	LOCK WASHER	-
5	U17391	1	ROUND RETAINER	-
6	U17395	2	ROUND RETAINER	-
7	T34974	1	SPRING	-
8	T122063	2	O-RING	(USE WITH AT84432) (SUB FOR (2) T27593)
8	T122064	2	O-RING	(USE WITH AT114126) (SUB FOR T106371, THIS APPLICATION)
9	-	1	Part 10	(SUB AT37703)
10	U15242	2	O-RING	-
11	T44948	4	O-Ring	-
12	R29936	1	O-Ring	-
13	T38928	1	FITTING	-
14	19H3404	4	Cap Screw	3/8" X 4"
15	12H331	4	LOCK WASHER	3/8"
16	U17393	1	FITTING	-
17	U17409	1	O-Ring	-
18	U17406	1	SPRING	-
19	U17396	1	POPPET	-
21	12H302	4	Lock Washer	1/4"
22	21H1174	4	SCREW	1/4" X 1"
23	R26906	2	O-Ring	(DUAL CONTROL VALVE WITHOUT TRAIL BUILDING BLADE)
24	R27474	2	Drain Plug	(DUAL CONTROL VALVE WITHOUT TRAIL BUILDING BLADE)
25	AU14302	2	PRESSURE RELIEF VALVE	17 238 KPA (173 BAR) (2500 PSI)
26	U15242	1	O-RING	-
27	T118736	1	SEAL	(USE WITH AT114126)
28	T118737	1	THRUST WASHER	(USE WITH AT114126)
29	T106147	1	PLATE	(USE WITH AT114126)
30	12H302	2	Lock Washer	1/4", (USE WITH AT114126)
31	19H2701	2	SCREW	1/4" X 5/8", (USE WITH AT114126)
90	AT37703	1	VALVE	-
90	AT63352	1	VALVE	(SUB AT84796)
90	AT84432	1	CONTROL VALVE	-
91	AT63351	1	VALVE	TWO SECTION (INCLUDES ALL PARTS ON THIS PAGE AND PAGE 70-19 EXCEPT KEYS 20, 21, 22 AND 23) (SUB AT114126)
91	AT38638	1	CONTROL VALVE	(INCLUDES ALL PARTS ON THIS PAGE AND PAGE 70-19 EXCEPT KEYS 20, 21, 22 AND 23)
20A	-	1	Part 21	(SUB AT37703)
20B	-	1	Part 22	(SUB AT84796)
