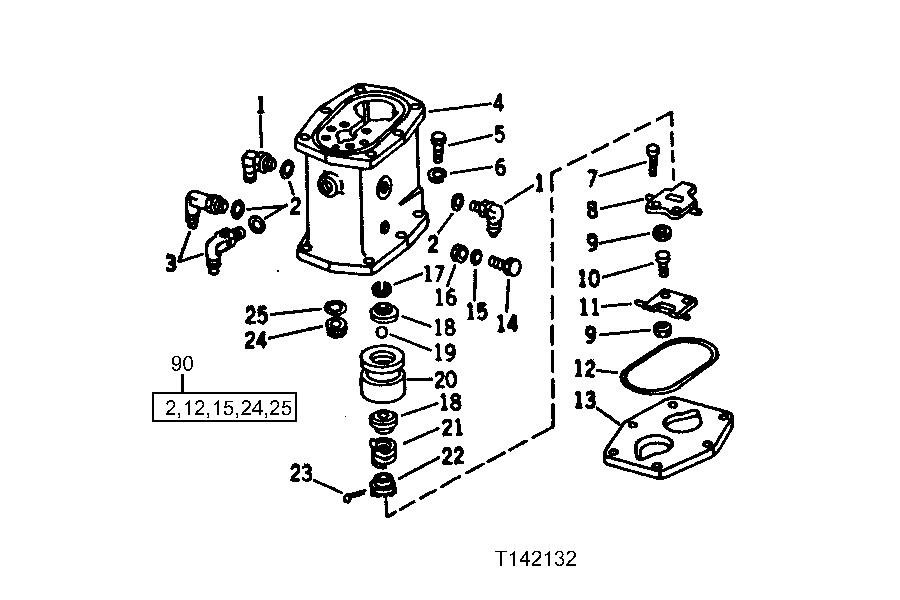

STEERING VALVE HOUSING (LOWER HALF) [01I17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT36771	2	Elbow Fitting	90° ADJUSTABLE
2	R26375	4	O-Ring	(A)
3	AT36322	2	ELBOW FITTING	90° ADJUSTABLE
4	R42115	1	HOUSING	-
5	19H3483	6	Cap Screw	3/8" X 1-1/8"
6	12H304	6	Lock Washer	3/8"
7	R26554	2	SET SCREW	-
8	AR26448	1	LEVER	VALVE OPERATING, LOWER
9	14H649	4	Nut	UNF, 1/4"
10	R31217	2	SCREW	(SUB FOR R26762, THIS APPLICATION)
11	AR26402	1	LEVER	VALVE, OPERATING, UPPER
12	R34733	1	WASHER	(A)
13	R51748	1	COVER	-
14	R40338	2	DRAIN PLUG	-
15	R26286	2	O-Ring	(A)
16	R27296	2	Nut	-
17	R26425	1	SNAP RING	-
18	R40595	2	BEARING RACE	-
19	R26552	13	Ball	-
20	R40757	1	BUSHING	-
21	R40596	1	SPRING	-
22	R40597	1	LOCK NUT	-
23	11M7081	1	Cotter Pin	2.500 X 20 MM
24	R30323	1	BACK-UP RING	(A)
25	P48347	1	O-Ring	(A) (SUB FOR R34404) (SUB FOR R56465, THIS APPLICATION)
90	AT59906	1	KIT	(SUB FOR AR48759, THIS APPLICATION) STEERING VALVE REPLACEMENT (INCLUDES PARTS MARKED (A) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE LOCATED ON PAGE - STEERING CYLINDER HOUSING (65-2))

STEERING VALVE HOUSING (LOWER HALF) [01I17]
