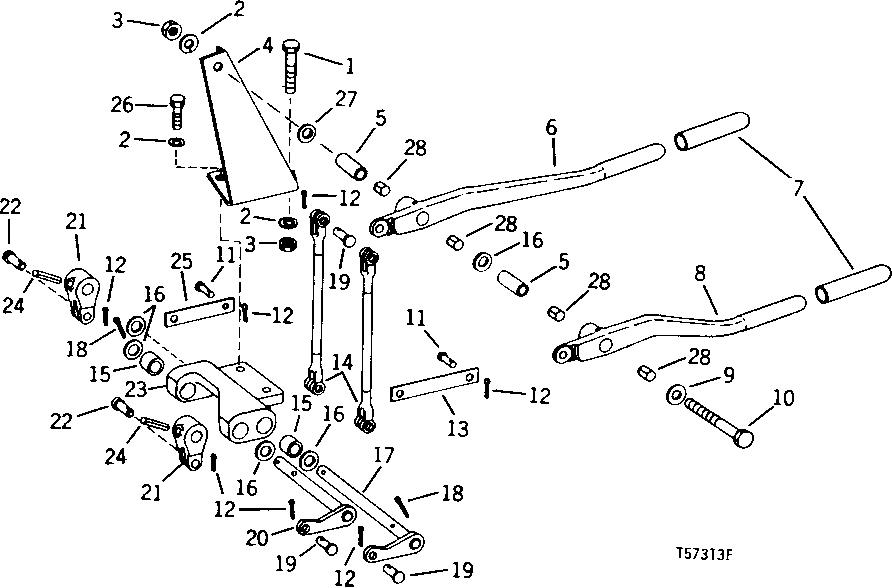

SELECTIVE CONTROL VALVE LINKAGE (SINGLE AND DUAL SELECTIVE CONTROL VALVES) [02C20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3057	3	Cap Screw	1/2" X 2-3/4"
2	12H301	4	Lock Washer	1/2"
3	14H1040	2	Nut	1/2", (SUB FOR 14H809)
4	AT36584	1	SUPPORT	-
5	H23248	1	BUSHING	(1 USED, SINGLE CONTROL VALVE) (2 USED, DUAL CONTROL VALVE)
6	T37057	1	LEVER	(SUB AT52968, THIS APPLICATION)
6	AT52968	1	LEVER	-
7	T37058	1	GRIP	(1 USED, SINGLE CONTROL VALVE) (2 USED, DUAL CONTROL VALVE)
8	T37884	1	LEVER	(DUAL CONTROL VALVE) (SUB AT52969, THIS APPLICATION)
8	AT52969	1	LEVER	-
9	24H1254	1	Washer	17/32" X 1-1/8" X 0.105"
10	19H1974	1	Cap Screw	1/2" X 2-3/4", (SINGLE CONTROL VALVE)
10	19H3544	1	Cap Screw	1/2" X 4-1/2", (DUAL CONTROL VALVE)
11	T19155	1	Pin Fastener	(1 USED, SINGLE CONTROL VALVE) (2 USED, DUAL CONTROL VALVE)
12	11M7079	1	Cotter Pin	2.500 X 12 MM, (4 USED, SINGLE CONTROL VALVE) (8 USED, DUAL CONTROL VALVE)
13	T37885	1	STRAP	(DUAL CONTROL VALVE)
14	AT36589	1	YOKE	(1 USED, SINGLE CONTROL VALVE) (2 USED, DUAL CONTROL VALVE)
15	T37880	1	BUSHING	(1 USED, SINGLE CONTROL VALVE) (4 USED, DUAL CONTROL VALVE)
16	24H1366	1	Washer	21/32" X 1-1/8" X 0.036", (2 USED, SINGLE CONTROL VALVE) (8 USED, DUAL CONTROL VALVE)
17	AT36599	1	SHAFT	(DUAL CONTROL VALVE)
18	11M7015	1	Cotter Pin	3.200 X 25 MM, (1 USED, SINGLE CONTROL VALVE) (2 USED, DUAL CONTROL VALVE)
19	P46404	1	Pin Fastener	(2 USED, SINGLE CONTROL VALVE) (4 USED, DUAL CONTROL VALVE)
20	AT36590	1	SHAFT	-
21	T37881	1	LEVER	(1 USED, SINGLE CONTROL VALVE) (2 USED, DUAL CONTROL VALVE)
22	L4666T	1	PIN	(1 USED, SINGLE CONTROL VALVE) (2 USED, DUAL CONTROL VALVE)
23	T37879	1	SUPPORT	-
24	25H774	1	GROOVE PIN	(SUB FOR (AR) T43721) 1/4" X 1-3/8" (1 USED, SINGLE CONTROL VALVE) (2 USED, DUAL CONTROL VALVE)
25	T37874	1	STRAP	-
26	19H3579	2	Cap Screw	1/2" X 1-3/8"
27	24H1366	1	Washer	21/32" X 1-1/8" X 0.036"
27	24H1254	1	Washer	17/32" X 1-1/8" X 0.105"
28	820148	4	BUSHING	-
