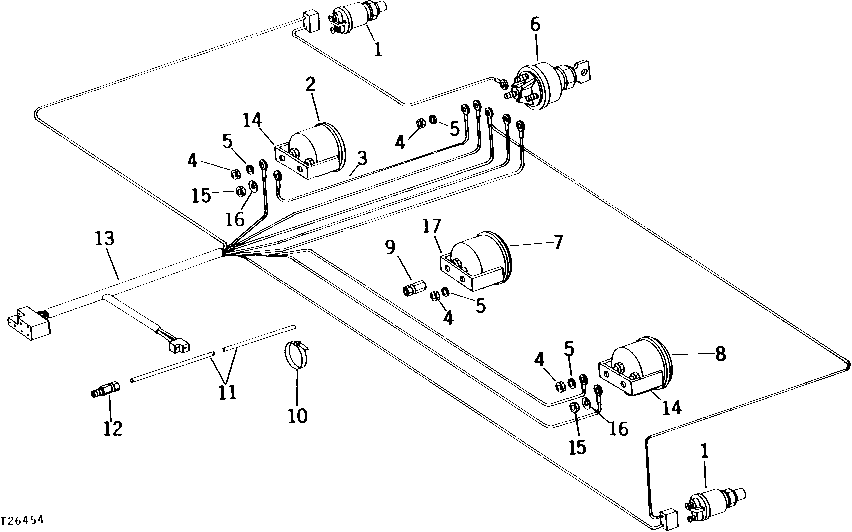

RIGHT-HAND INSTRUMENT WIRING HARNESS [02L03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R39554	2	Switch	STARTER AND HORN, (SUB FOR AR47373)
2	AT148831	1	TEMPERATURE GAUGE	(SUB FOR AT38821) TRANSMISSION OIL
2	AT167692	1	SOCKET	-
2	T151558	1	LAMP	-
3	-	1	Part 5	IGNITION SWITCH TO OIL TEMPERATURE GAUGE (MAKE FROM AR84006 WIRE KIT)
4	14H631	11	Nut	0.190"
5	12H295	11	Lock Washer	0.190"
6	AT145930	1	SWITCH	(SUB FOR AT37390)
7	AT37408	1	GAUGE	-
8	AT39727	1	VOLTMETER	(SUB AT104767 AND T118593 BRACKET. REPLACE HARNESS EYELETS WITH R65595 AND U46370)
8	AT37407	1	AMMETER	-
9	AT62084	1	UNION FITTING	(SUB FOR AT26966, THIS APPLICATION)
10	R44302	1	Tie Band	(SUB FOR T38630 AND T56348) (TUBE TO STEERING PRESSURE LINE)
11	-	1	Part 14	1 270 MM (3/16" X 50") LONG (MAKE FROM T60804, 305M (100') BULK) (SUB FOR T37286)
12	AT62083	1	FITTING	(SUB FOR AM235T, THIS APPLICATION)
13	AT36513	1	WIRING HARNESS	(SUB AT58035, THIS APPLICATION)
14	T39395	1	BRACKET	-
15	14H605	2	Nut	0.164"
16	12M7084	2	Lock Washer	4.300 MM
17	T38594	1	BRACKET	-

RIGHT-HAND INSTRUMENT WIRING HARNESS [02L03]
