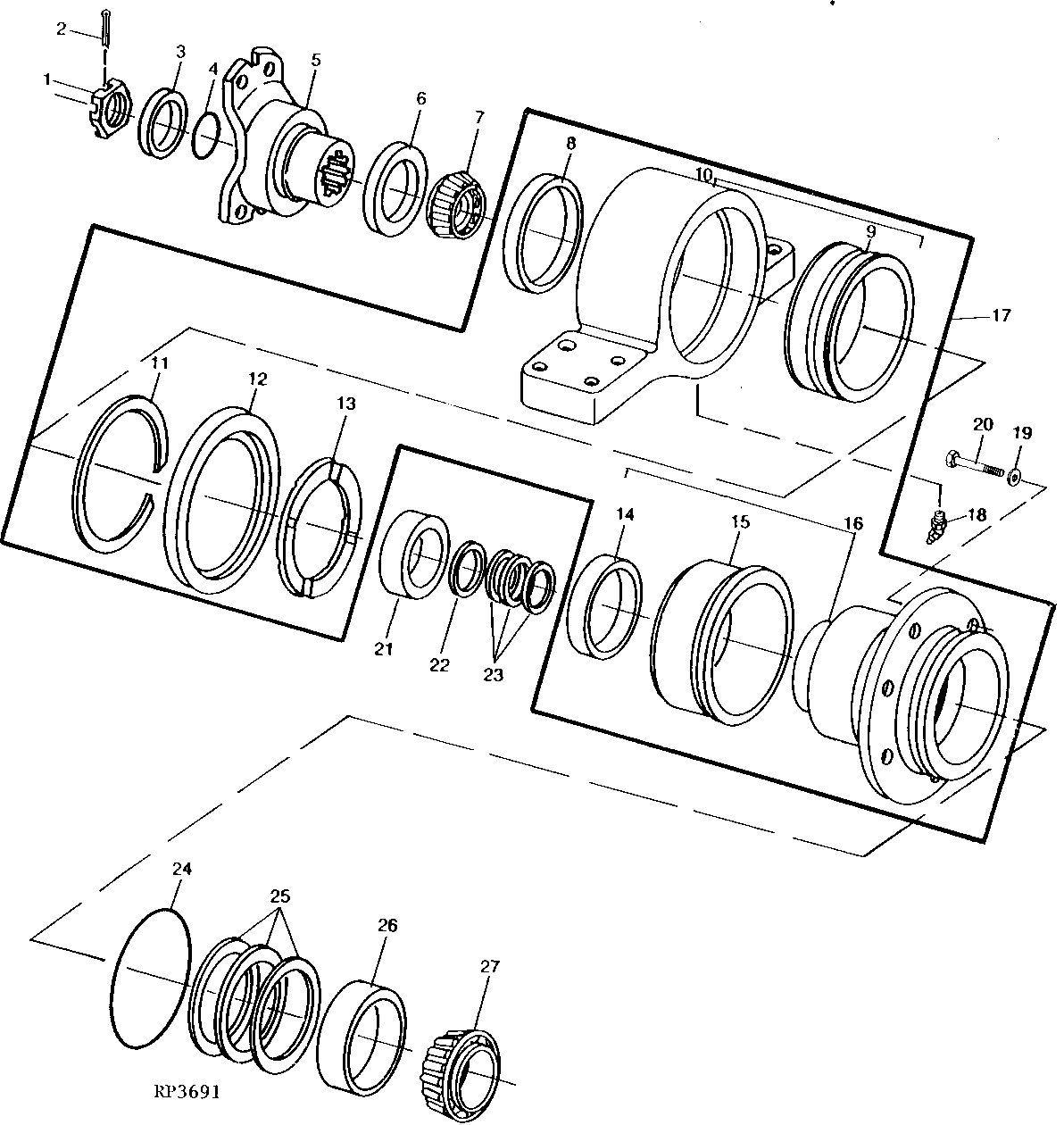

REPLACEMENT FRONT DIFFERENTIAL OSCILLATING SUPPORT AND UNIVERSAL YOKE WITH QUILL [01H03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48776	1	Nut	-
2	11M7032	1	Cotter Pin	5 X 50 MM
3	R48733	1	Washer	-
3	R48734	1	Washer	-
3	R48735	1	Washer	-
4	U10289	1	O-Ring	-
5	R44127	1	UNIVERSAL JOINT YOKE	-
6	R37410	1	Seal	(SUB RE45312)
7	JD8974	1	Bearing Cone	-
8	AR92437	1	Seal	-
9	R70454	1	Bushing	-
10	AR92436	1	SUPPORT	(MARKED R70451)
11	R42227	1	Snap Ring	-
12	AR94169	1	Seal	-
13	R56298	1	Thrust Washer	(SUB FOR R48688)
14	R70453	1	Sleeve	-
15	R70452	1	Sleeve	-
16	AR98736	1	BEARING HOUSING W/O BEARING	-
17	AR98735	1	BEARING HOUSING W/O BEARING	-
18	JD7778	1	Lubrication Fitting	-
19	R47172	11	Washer	-
20	R68206	11	Cap Screw	-
21	JD8240	1	Bearing Cup	-
22	R135535	1	Spacer	(SUB FOR R45201)
23	R45197	1	Shim	0.18MM (.007")
23	R45198	1	Shim	0.25MM (.010")
23	R45199	1	Shim	0.30MM (.012")
23	R45200	1	Shim	0.38MM (.015")
24	R27796	1	O-Ring	-
25	R35365	1	Shim	0.08MM (.003")
25	R35366	1	Shim	0.18MM (.005")
25	R35367	1	Shim	0.25MM (.010")
26	JD8280	1	Bearing Cup	-
27	JD10377	1	Bearing Cone	(SUB FOR JD9004)

REPLACEMENT FRONT DIFFERENTIAL OSCILLATING SUPPORT AND UNIVERSAL YOKE WITH QUILL [01H03]
