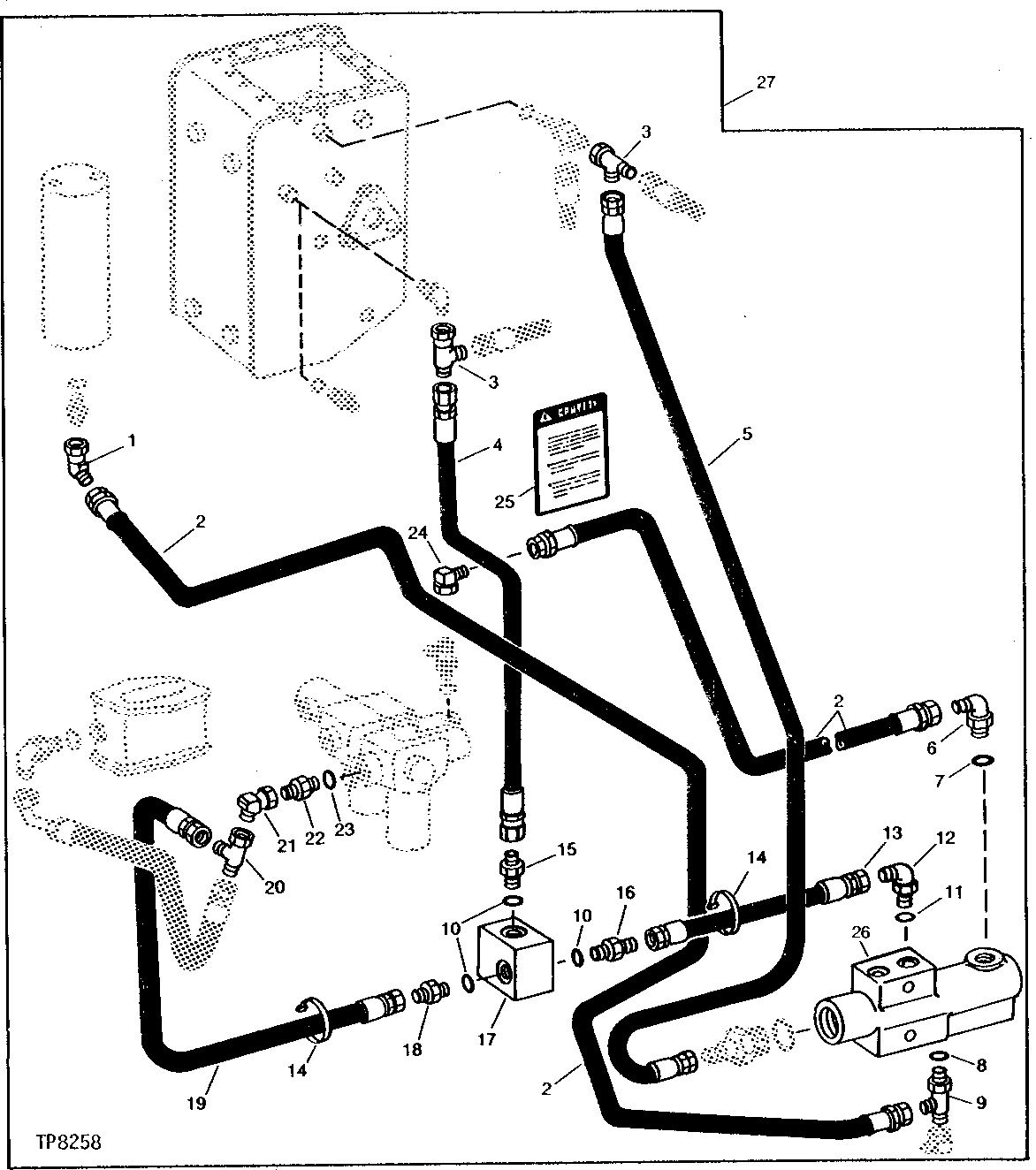

REPLACEMENT EMERGENCY STEERING KIT (SECONDARY STEERING VALVE TO SUMP TANK) [02C15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AU43156	1	Elbow Fitting	-
2	AH80525	2	HYDRAULIC HOSE	9/16" X 1 397 MM (55") X 9/16"
3	AT36921	2	Tee Fitting	-
4	AH94858	1	Hose	9/16" X 978 MM (38-1/2") X 9/16", (SUB FOR AE36985)
5	AT44032	1	HYDRAULIC HOSE - FABRICATE	1/2" X 1 430 MM (56-1/4") X 9/16"
6	AT37092	1	ELBOW FITTING	-
7	R26286	1	O-Ring	-
8	R26448	1	O-Ring	-
9	AT37518	1	Tee Fitting	-
10	R26906	2	O-Ring	-
11	R26375	1	O-Ring	-
12	AT32332	1	Elbow Fitting	-
13	AT74709	1	HYDRAULIC HOSE - FABRICATE	3/4" X 650 MM (25-1/2") X 3/4"
14	H77698	8	Tie Band	(SUB FOR T44946)
15	R28450	1	Fitting	-
16	R31665	1	Fitting	-
17	AT30373	1	PRESSURE RELIEF VALVE	18 616 KPA (186 BAR) (2 700 PSI)
18	T38666	1	Fitting	-
19	AT67184	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 927 MM (36-1/2") X 1-1/16"
20	AT43903	1	TEE FITTING	-
21	R37145	1	Elbow Fitting	(NOT REQUIRED)
22	AT71044	1	CHECK VALVE	-
23	U12547	1	O-Ring	(SUB FOR T44946)
24	AT38127	1	Elbow Fitting	-
25	T56890	1	SAFETY SIGN	-
26	T73789	1	HOUSING	-
27	AT71041	1	STEERING ARM	(ALSO ORDER (4) AR105227 ACCUMULATORS) (SEE OTHER PAGES THIS SECTION FOR REMAINDER OF KIT)

REPLACEMENT EMERGENCY STEERING KIT (SECONDARY STEERING VALVE TO SUMP TANK) [02C15]

Нет текстового описания
