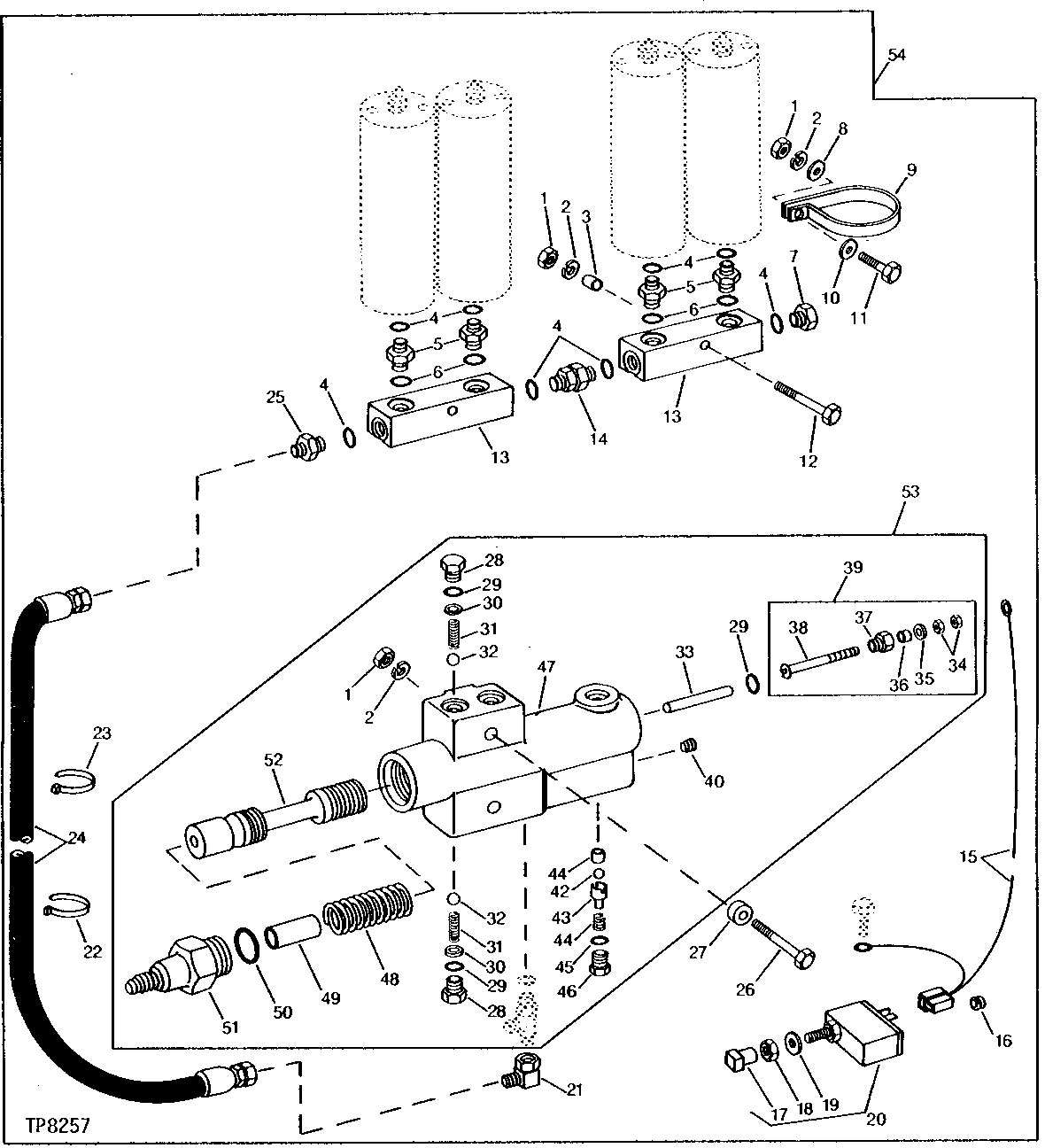

REPLACEMENT EMERGENCY STEERING KIT (SECONDARY STEERING VALVE) [02C13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H812	8	NUT	3/8"
2	12H304	8	Lock Washer	3/8"
3	T30364	2	BUSHING	-
4	R26375	8	O-Ring	-
5	T62843	4	Adapter Fitting	-
6	R26906	4	O-Ring	-
7	R39112	1	Fitting	-
8	24H1305	4	Washer	13/32" X 13/16" X 0.065"
9	R35794	4	Clamp	-
10	24H1219	4	Washer	7/16" X 1" X 0.083"
11	19H3239	4	Cap Screw	3/8" X 1-1/4"
12	19H1912	2	Cap Screw	3/8" X 3-1/2"
13	T75663	2	MANIFOLD	-
14	AN131153	1	Union Fitting	-
15	AT71043	1	WIRING HARNESS	-
16	R27180	1	Grommet	-
17	-	1	Part 17	( T52040 USE IF AVAILABLE)
18	-	1	Part 18	( T52039 USE IF AVAILABLE)
19	T61054	1	LENS	-
20	AT43442	1	AUDIBLE WARNING ALARM	-
21	AE24616	1	Elbow Fitting	-
22	R44302	4	Tie Band	-
23	H77698	4	Tie Band	(SUB FOR T44946)
24	AT48434	1	Hydraulic Hose	9/16" X 1 067 MM (42") X 9/16"
25	R36426	1	Fitting	-
26	19H2458	2	Cap Screw	3/8" X 3"
27	T75190	2	SPACER	-
28	R45010	2	Fitting	-
29	R26448	3	O-Ring	-
30	R60665	10	Shim	-
31	R31320	2	Spring	-
32	405R	2	Ball	-
33	R35003	1	NEEDLE ROLLER	-
34	14H778	2	Nut	0.190"
35	24H1283	1	Washer	7/32" X 1/2" X 0.049"
36	-	1	Part 36	(SUB AU43706)
37	-	1	Part 37	(SUB AU43706)
38	21H1357	1	SCREW	0.190" X 1-1/2"
39	AU43706	1	PLUG	-
40	15H560	1	Pipe Plug	1/16"
41	R48014	1	SEAT	-
42	400R	1	Ball	-
43	R44254	1	GUIDE	-
44	R44256	1	SPRING	-
45	R26287	1	O-Ring	-
46	R27216	1	DRAIN PLUG	-
47	T73789	1	HOUSING	-
48	T73791	1	COMPRESSION SPRING	-
49	28H3380	1	Spacer	0.493" X 0.675" X 1-5/8" 3/8" X 1-5/8"
50	R29936	1	O-Ring	-
51	T73792	1	FITTING	-
52	-	1	Part 52	( T73790 NO LONGER AVAILABLE)
53	AT80269	1	VALVE	(SUB FOR AT71042)
54	AT71041	1	STEERING ARM	(ALSO ORDER (4) AR105227 ACCUMULATORS) (SEE OTHER PAGE THIS SECTION FOR REMAINDER OF KIT)

REPLACEMENT EMERGENCY STEERING KIT (SECONDARY STEERING VALVE) [02C13]

Нет текстового описания
