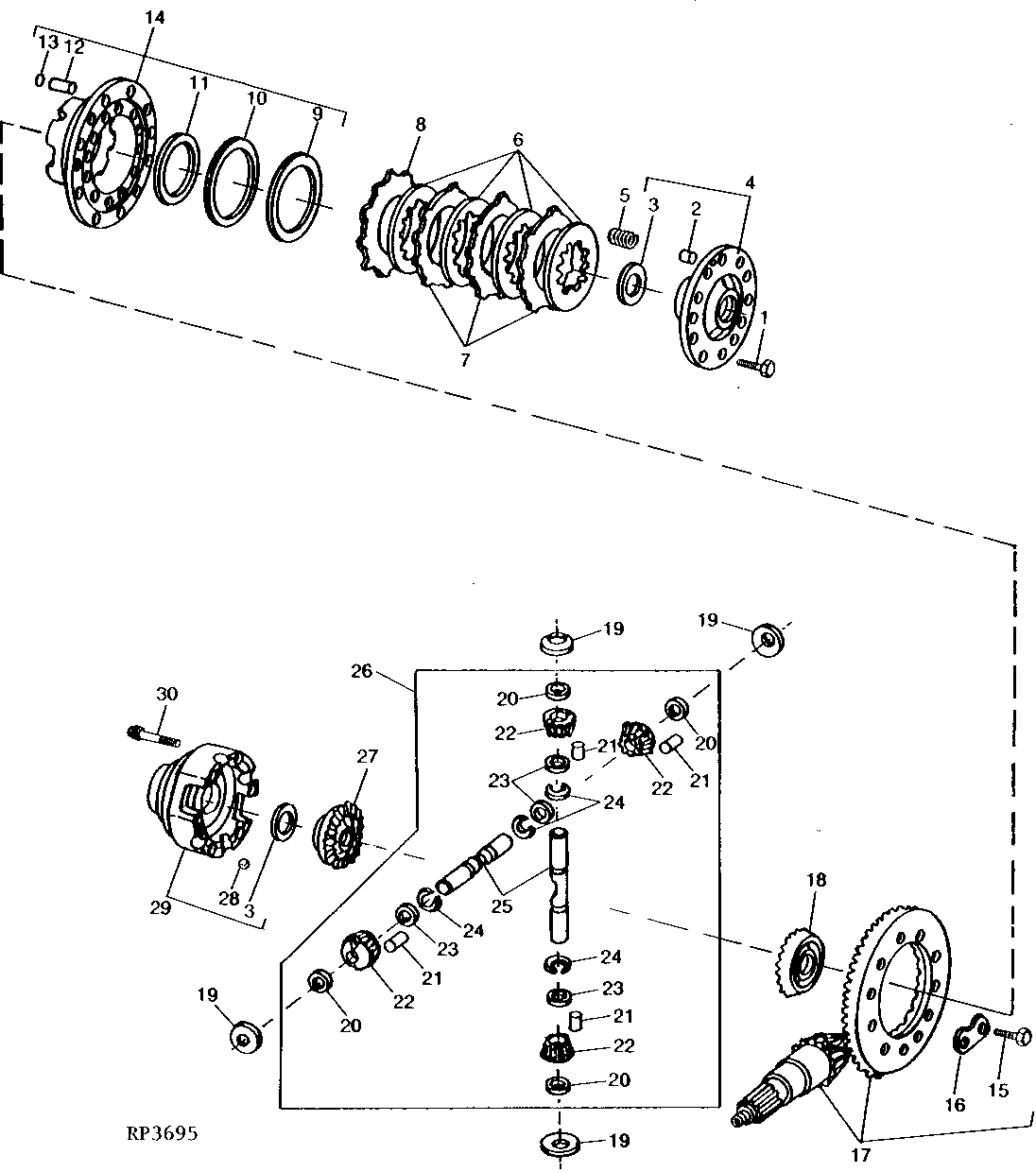

REPLACEMENT DIFFERENTIAL HOUSING [01H09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R116064	12	CAP SCREW	(SUB FOR (12) R40236)
2	34H311	3	Spring Pin	(A) 1/4" X 7/8"
3	R77145	2	WASHER	(A) (SUB FOR R65741)
4	AR90626	1	COVER	(A) (MARKED R68522 OR R98200) (SUB RE36864 AND (3) 34H311)
5	R41770	3	Spring	-
6	AR86454	4	DISK WITH INNER SPLINE	(SUB (4) RE53823, R34857 AND (3) R34858)
7	R34858	3	Clutch Plate	-
8	R34857	1	Clutch Plate	-
9	R58775	1	Piston	(A)
10	R68615	1	O-Ring	(A)
11	R68616	1	Washer	(A)
12	R70532	1	BUSHING	(A)
13	R60038	1	Packing	(A)
14	AR98726	1	HOUSING	(A) (MARKED R70529) (SUB RE53705 AND RE53244)
15	R48787	12	Cap Screw	-
16	R56887	6	PLATE	-
17	AR98733	1	GEAR	FRONT, (GEAR MARKED R63841, SHAFT MARKED R51975)
17	AR98734	1	GEAR	REAR, (GEAR MARKED R64069, SHAFT MARKED R51976)
18	R51970	1	BEVEL GEAR	-
19	R59460	4	Thrust Washer	-
20	R70112	4	Thrust Washer	(A)
21	R70115	104	Needle Roller	(A)
22	R68170	4	PINION	(A)
23	R70113	4	Thrust Washer	(A)
24	R70114	4	Snap Ring	(A)
25	R70111	2	Pinion Shaft	(A)
26	AR91483	1	PINION	(A) (SUB (4) R68170, (2) R70111, (4) R70112, (4) R70113, (4) R70114 AND (104) R70115)
27	R51971	1	BEVEL GEAR	-
28	H871R	1	Ball	(A)
28	400R	1	Ball	(A)
29	RE21029	1	Housing	(A) (MARKED R70528 OR R82197) (SUB FOR AR92878) (SUB RE53244, RE53705, (12) 19H2563 AND (12) T105740)
30	R116211	8	Screw	(SUB FOR R52718)
