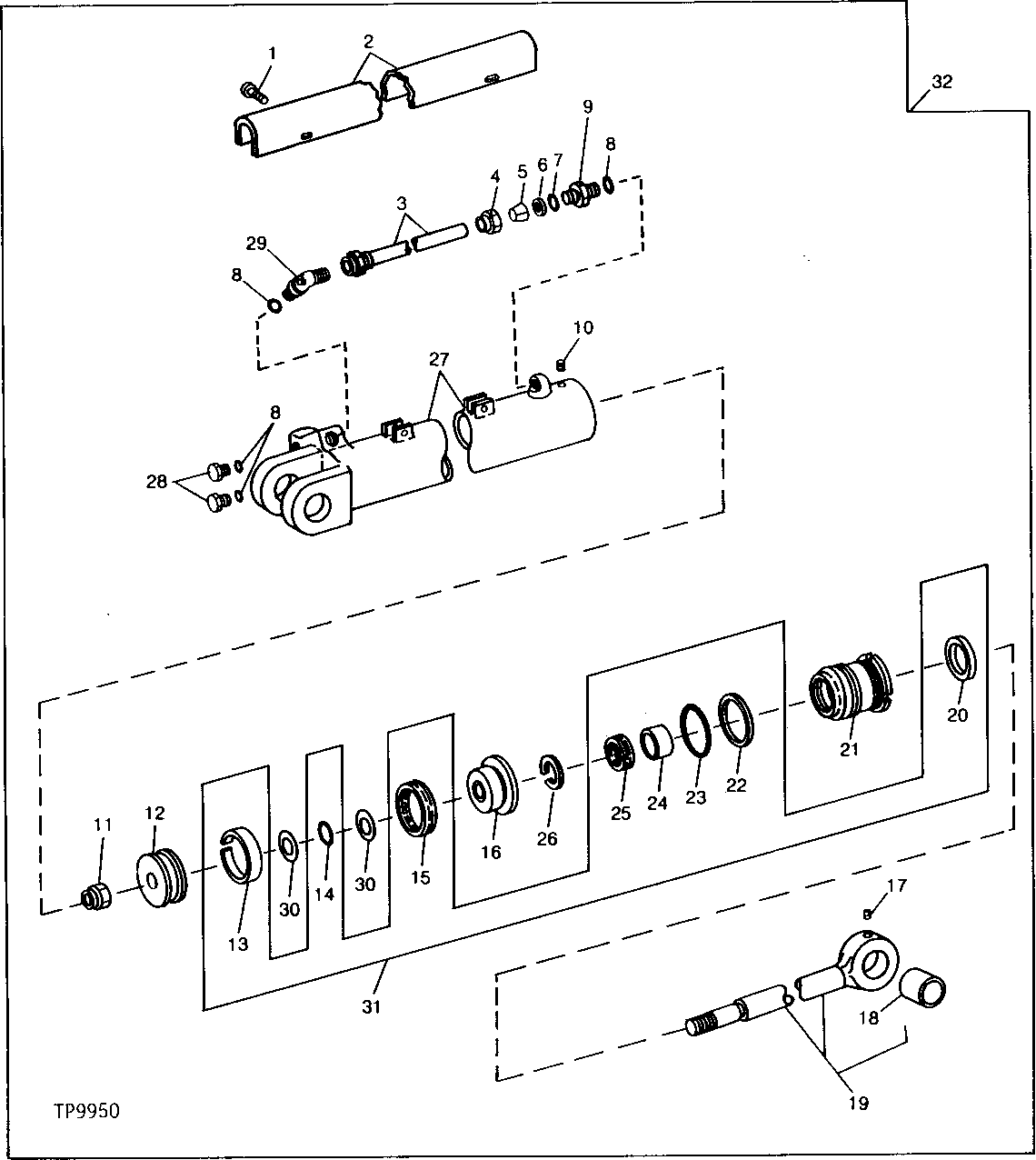

REPLACEMENT BOOM AND ARCH CYLINDERS [02J04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2021	4	Cap Screw	3/8" X 5/8"
2	T42331	1	SHIELD	-
3	AT41297	1	LINE	RETURN
4	-	1	Part 4	SPECIAL, (SUB AU42120)
5	U42972	1	SLEEVE	-
6	U42974	1	BACK-UP RING	BACKUP
7	R375R	1	O-Ring	-
8	R26906	4	O-Ring	-
9	AU42120	1	ADAPTER FITTING	-
10	22H1077	1	SET SCREW	1/4" X 5/16"
11	U10750	1	LOCK NUT	-
12	T42330	1	PISTON	-
13	U46747	1	WEAR RING	-
14	U10289	1	O-Ring	-
15	RE14091	1	SEAL	(SUB FOR R72822 AND T54812)
16	R78947	1	PISTON	(SUB FOR T42329)
17	15H566	1	PIPE PLUG	1/8"
18	T42327	1	BUSHING	-
19	AT41295	1	ROD	PISTON
20	U42734	1	SEAL	WIPER
21	R80942	1	GUIDE	GUIDE, (SUB FOR T42328)
22	R79000	1	BACK-UP RING	(SUB FOR U46746, THIS APPLICATION)
23	R41987	1	O-Ring	-
24	U41578	1	WEAR RING	-
25	R76801	1	PACKING	(SUB FOR T35850)
26	N10193	1	SNAP RING	-
27	AT51967	1	HYDRAULIC CYLINDER BARREL	-
28	R27474	2	Drain Plug	-
29	M48579	1	ELBOW FITTING	90°
30	R78391	2	BACK-UP RING	-
31	AR99786	1	KIT	(SUB FOR AT52864) (SUB RE30817 AND RE17458, THIS APPLICATION)
31	AR105391	1	HYDRAULIC CYLINDER KIT	(SUB FOR AT52864 AND AR99786) (SUB RE30817 AND RE17458, THIS APPLICATION)
32	AT51966	4	HYDRAULIC CYLINDER	BOOM AND ARCH (SUB RE14090 - ORDER COMPONENTS)
32	-	4	Part 34	( RE14090 NO LONGER AVAILABLE - ORDER COMPONENTS)
