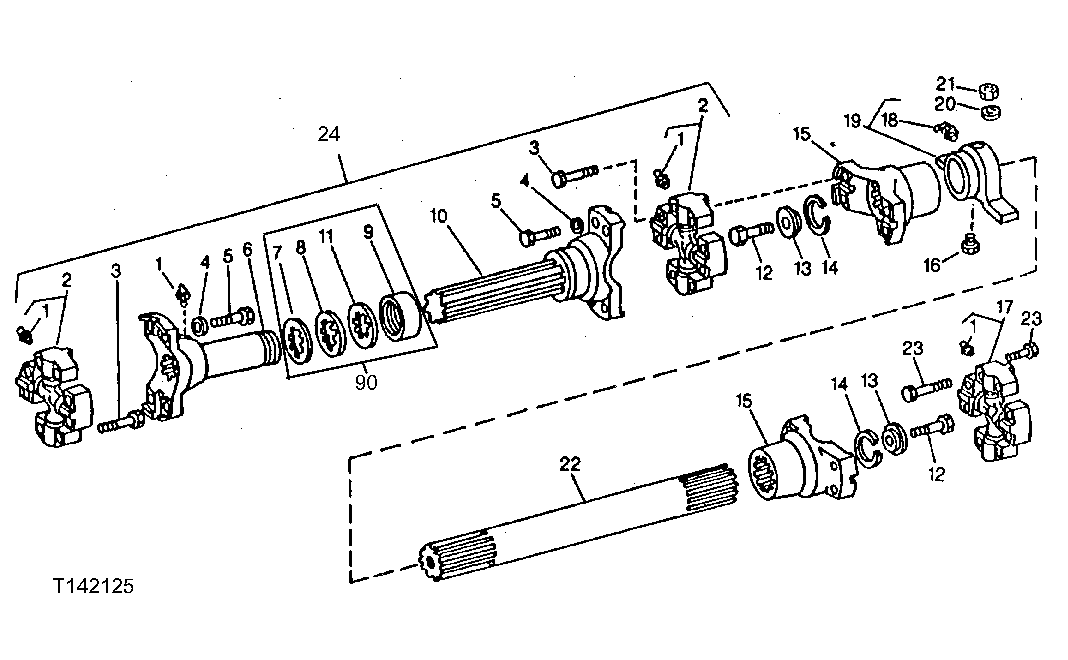

REAR DIFFERENTIAL DRIVE SHAFT (DOUBLE UNIVERSAL) [01H17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R61943	1	FITTING	(USE IF AVAILABLE) 1/4" THREAD X 1-5/8" LONG (SUB FOR T30074) (USE WITH AT27353) (MECHANICS)
1	JD7759	1	Lubrication Fitting	1/8" THREAD X 11/16" LONG (USE WITH AT27353) (ROCKWELL)
1	JD5814	1	Lubrication Fitting	(SUB FOR R61943)
1	JD7782	4	Lubrication Fitting	1/8" THREAD X 1-3/4" LONG (USE WITH AR95974)
1	JD7782	2	Lubrication Fitting	1/8" THREAD X 1-3/4" LONG (USE WITH AR90543)
2	AT36353	2	CROSS AND BEARING ASSEMBLY	(ROCKWELL) (SUB AT57090)
2	AT57090	2	CROSS AND BEARING ASSEMBLY	(MECHANICS) (SUB FOR AT36356)
3	19H3183	8	CAP SCREW	HS, SAE 8, 1/2" X 2-1/8"
4	12H293	8	Lock Washer	7/16"
5	T37605	8	CAP SCREW	(SUB P47707, THIS APPLICATION) (ROCKWELL)
5	P47707	8	CAP SCREW	(MECHANICS)
6	AT36355	1	UNIVERSAL JOINT YOKE	(ROCKWELL) (SUB AT36344)
6	AT36357	1	UNIVERSAL JOINT	(MECHANICS) (SUB AT36344)
7	-	1	Part 14	(A) (ROCKWELL) (SUB AT62180)
7	-	1	Part 15	(A) (MECHANICS) (SUB AT62180)
8	-	1	Part 16	(A) (ROCKWELL) (SUB AT62180)
8	-	1	Part 17	(A) (MECHANICS) (SUB AT62180)
9	T29334	1	Cap	(A)
10	AT36354	1	UNIVERSAL JOINT	(ROCKWELL) (SUB AT36344)
10	AT36358	1	UNIVERSAL JOINT	(MECHANICS) (SUB AT36344)
11	-	1	Part 21	(A) (ROCKWELL) (SUB AT62180)
11	P47710	1	EXHAUST CAP	(MECHANICS) (SUB T29334)
12	19H2710	2	Cap Screw	HS, SAE 8, 5/8" X 1-3/4"
13	T27134	2	WASHER	-
14	T27132	2	SNAP RING	-
15	T59890	2	UNIVERSAL JOINT YOKE	(SUB FOR T29328)
16	T144348	1	Pin Fastener	(SUB FOR T27135)
17	RE40111	1	Cross And Bearing Assembly	(SUB FOR AR95974) (W/O GREASE FITTING)
18	JD7788	1	Lubrication Fitting	45°, 1/4"
19	AT114341	1	BEARING WITH HOUSING	(SUB FOR AT36347)
20	T21242	2	Washer	-
21	14H1040	2	Nut	1/2", (SUB FOR 14H809)
22	T41558	1	DRIVE SHAFT	-
23	19H3011	8	Cap Screw	HS, SAE 8, 1/2" X 2-1/8"
24	AT36344	1	UNIVERSAL JOINT	-
90	AT62180	1	KIT	SEAL (CONTAINS ALL PARTS IDENTIFIED BY (A))

REAR DIFFERENTIAL DRIVE SHAFT (DOUBLE UNIVERSAL) [01H17]
