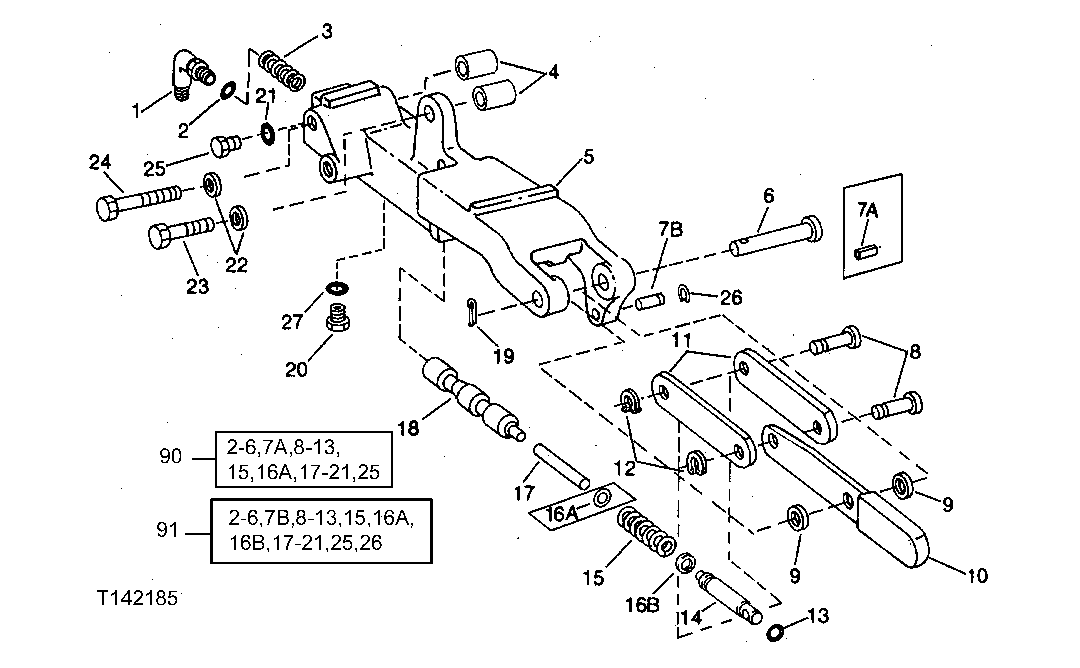

PRESSURE REDUCING VALVE (SERIAL NO. 218192- ) [02K23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT35121	1	Elbow Fitting	ADJUSTABLE, 90°
2	R26448	1	O-Ring	(A) (B)
3	R74418	1	Spring	(A) (B) (SUB FOR R31698, THIS APPLICATION) (ALSO ORDER R79134)
4	R28037	2	SPACER	-
5	R86770	1	HOUSING	(A) (SUB FOR R58529, R64503 AND R79133)
5	R86770	1	HOUSING	(B) (SUB FOR R64503 AND R79133)
6	R46866	1	PIN FASTENER	(A) (B)
8	R26385	2	PIN FASTENER	(A) (B)
9	24H1311	2	Washer	(A) (B) 13/32" X 1-1/4" X 0.220"
10	-	1	Part 12	(A) ( T50804 NO LONGER AVAILABLE)
10	AR82448	1	HANDLE	(B)
11	R79135	2	STRAP	(A) (B) (SUB FOR R46902)
12	R26386	2	SNAP RING	(A) (B)
13	F3353R	1	O-Ring	(A) (B)
14	R86162	1	PLUNGER	(SUB FOR R46863 AND R68648) (ALSO ORDER R55081)
15	F2962R	1	SPRING ASSEMBLY	(A) (B)
17	R43244	1	Needle Roller	(A)
17	R55081	1	Needle Roller	(B)
18	R79134	1	VALVE	(A) (B) (SUB FOR R46855 AND R74417) (ALSO ORDER R74418) (SUB R82134 AND (11) R82133)
18	R82134	1	VALVE	(B) (USE WITH R79133)
18	R85362	1	VALVE	(B) (USE WITH R86770)
19	11M7059	1	Cotter Pin	(A) (B) 3.200 X 20 MM
20	R27216	1	DRAIN PLUG	(A) (B)
21	R26286	1	O-Ring	(A) (B)
22	24H1254	2	Washer	17/32" X 1-1/8" X 0.105"
23	19H3550	1	Cap Screw	1/2" X 4"
24	19H1840	1	CAP SCREW	1/2" X 5-1/2"
25	R27094	1	Drain Plug	(A) (B)
26	F3396R	1	Snap Ring	(B)
27	R26287	1	O-Ring	-
90	AT49391	1	VALVE	(SUB RE26463 IF AVAILABLE) (CONTAINS ALL PARTS IDENTIFIED BY (A))
91	-	1	Part 37	( RE26463 USE IF AVAILABLE) (CONTAINS ALL PARTS IDENTIFIED BY (B))
7A	34H331	1	Spring Pin	(A) 5/16" X 1-1/2"
7B	F3392R	1	PIN	(B)
16A	R82133	1	SHIM	(A) (B) 0.51 MM (.020") (SUB FOR R46901) (USE WITH R68648)
16B	B1664R	1	SHIM	(B) 0,76 MM (.030") (USE WITH R86162)
16B	R82133	1	SHIM	(B) 0.51 MM (.020") (USE WITH R86162)

PRESSURE REDUCING VALVE (SERIAL NO. 218192- ) [02K23]

Нет текстового описания
