Открытый узел

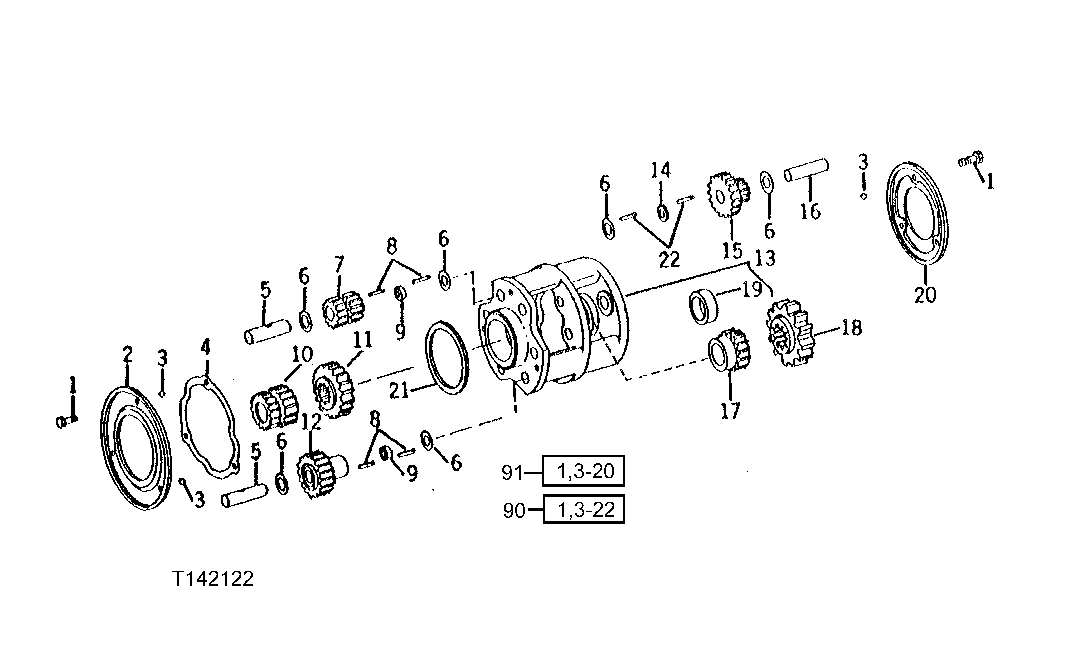

PLANETARY ASSEMBLY [01G06]

PLANETARY ASSEMBLY [01G06]

PLANETARY ASSEMBLY [01G06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

PLANETARY ASSEMBLY [01G06]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R30165	6	Cap Screw	(B) (A)
2	R68155	1	RETAINER	REAR, (SUB FOR R43183)
3	H871R	9	Ball	(B) (A)
4	R98928	1	GASKET	(B) (A) (SUB FOR R51993 AND R68154)
5	R62533	6	PINION SHAFT	(B) (A) THIRD AND FOURTH PLANET, (SUB FOR R43217, THIS APPLICATION) (SUB R65053)
5	R65053	6	PIN	(B) (A) THIRD AND FOURTH PLANET
6	R66197	18	Thrust Washer	(B) (A) (SUB FOR R43216)
7	R66275	3	PINION	(B) (A) THIRD PLANET, (SUB FOR R52000)
7	R70578	3	PINION	(B) (15 TEETH) (USE WITH AR94401)
8	R84261	240	Needle Roller	(B) (A) (SUB FOR R52002 AND R66195)
9	R66145	6	WASHER	(B) (A) (SUB FOR R43218)
10	R51997	1	PINION	(B) (A) FOURTH PLANET SUN, (SUB RE22861 AND RE19415)
10	R64510	1	PINION	(B) FOURTH PLANET SUN, (SUB RE22861 AND RE19415)
10	AR92624	1	PINION	(B) FOURTH PLANET SUN (21 TEETH) (USE WITH AR94401)
11	R51996	1	PLANET PINION	(B) (A) THIRD PLANET SUN
11	R70582	1	PINION	(B) THIRD PLANET SUN (27 TEETH) (USE WITH AR94401)
12	R66276	3	PINION	(B) (A) FOURTH PLANET, (SUB FOR R52001)
12	R70579	3	PINION	(B) FOURTH PLANET (20 TEETH) (USE WITH AR94401)
13	AR85312	1	PLANET PINION CARRIER	(B) (A) (MARKED R65910) (SUB FOR AR56282 MARKED R51992)
13	AR92826	1	PLANET PINION CARRIER	(B) (MARKED R70580) (USE WITH AR94401)
14	R66144	3	WASHER	(B) (A) (SUB FOR R52003)
15	R66274	3	PINION	(B) (A) FIRST AND SECOND PLANET, (SUB FOR R51999)
16	R43217	3	SHAFT	(B) (A)
17	AR56281	1	PINION	(B) (A) SECOND PLANET SUN
18	AR76116	1	PINION	(B) (A) FIRST PLANET SUN, (SUB FOR AR47132, THIS APPLICATION)
19	R48789	1	BUSHING	(B) (A)
20	R43182	1	RETAINER	(B) (A) FRONT
21	R45271	1	WASHER	(B)
22	R66196	120	NEEDLE ROLLER	(B) (A) (SUB FOR R43420)
90	AR81020	1	PLANETARY ASSEMBLY	(SUB FOR AR68342, THIS APPLICATION) (SUB AR94401 AND AR92829)
90	AR85315	1	PLANETARY ASSEMBLY	(SUB AR94401 AND AR92829)
90	AR94401	1	PLANETARY ASSEMBLY	(SUB FOR AR89717, THIS APPLICATION) (ALSO ORDER AR92829) (INCLUDES PARTS MARKED (B) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE ON PAGE FIRST PLANETARY BRAKE(45-24))
91	AR71330	1	PLANETARY ASSEMBLY	(NOT USED IN AR94401) (CONTAINS ALL PARTS IDENTIFIED BY (A))
