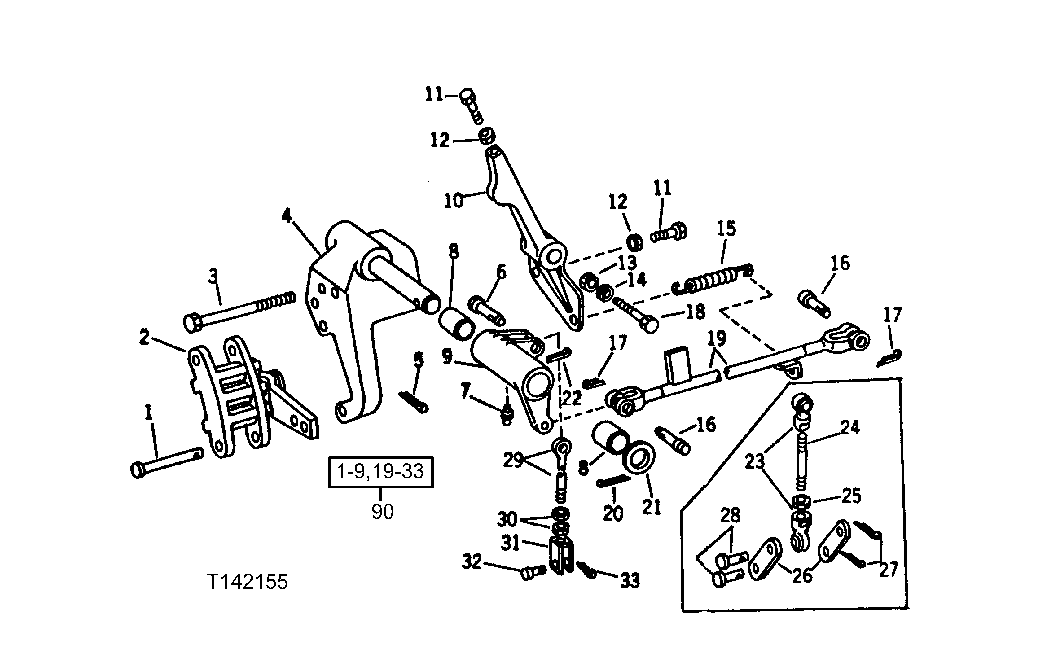

PARKING BRAKE INTERLOCK (SERIAL NO. 210082- ) [02E06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T18536	2	PIN FASTENER	(A)
2	AT134840	1	DISK BRAKE CALIPER ASSY	(A) (SUB FOR AT48109)
3	19H1840	3	CAP SCREW	(A) 1/2" X 5-1/2"
4	AT45370	1	BRACKET	(A)
5	11M7030	2	Cotter Pin	(A) 5 X 40 MM
6	M2479T	1	PIN	(A)
7	JD7759	1	Lubrication Fitting	(A) STRAIGHT, 1/8"
8	T21538	2	BUSHING	(A)
9	T46699	1	BELLCRANK	(A)
10	T66810	1	BELLCRANK	(SUB FOR T37717)
11	19H3239	2	Cap Screw	3/8" X 1-1/4"
12	14H732	2	Nut	3/8"
13	C13041	1	BUSHING	-
14	24H1226	1	Washer	1/2" X 1-1/4" X 0.083"
15	M2260T	1	SPRING	-
16	T14177	2	PIN	-
17	11M7059	2	Cotter Pin	3.200 X 20 MM
18	19H2735	1	Cap Screw	1/2" X 2"
19	AT45371	1	ROD	(A)
20	11M7032	1	Cotter Pin	(A) 5 X 50 MM
21	T17775	1	Washer	(A)
22	11M7015	1	Cotter Pin	(A) 3.200 X 25 MM
23	AT45372	2	BALL JOINT	(A)
24	T46701	1	ROD	(A)
25	14H774	2	Nut	(A) 3/8"
26	T46702	2	LINK	(A)
27	19M7084	2	CAP SCREW	(A) M8 X 15
28	T24669	2	PIN FASTENER	(A)
29	H76787	1	EYEBOLT	(A)
30	14H732	2	Nut	(A) 3/8"
31	P44729	1	CLEVIS	(A)
32	T24669	1	PIN FASTENER	(A)
33	11M7021	1	Cotter Pin	(A) 4 X 25 MM
90	-	1	Part 34	PARKING BRAKE REPAIR ( AT49485 USE IF AVAILABLE) (CONTAINS ALL PARTS IDENTIFIED BY (A) ON THIS PAGE AND THE NEXT PAGE, BRAKE CALIPER (75-12

PARKING BRAKE INTERLOCK (SERIAL NO. 210082- ) [02E06]
