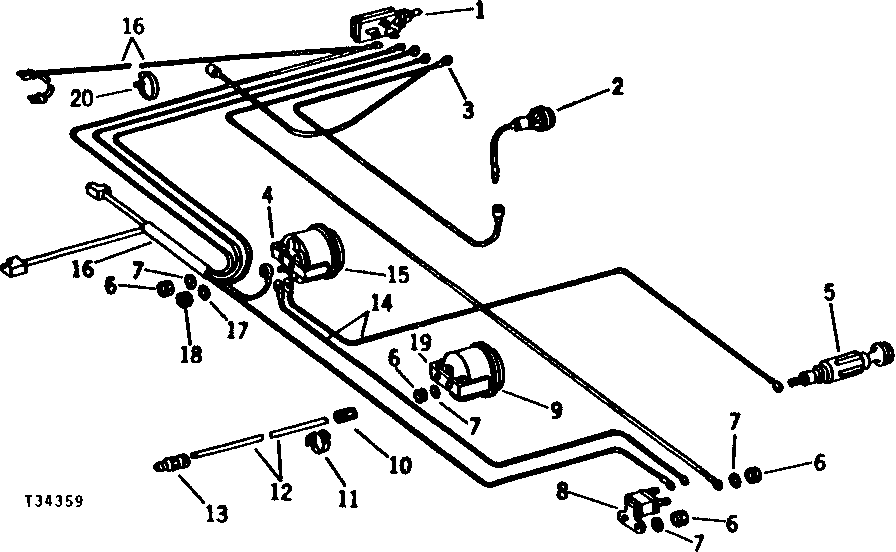

LEFT-HAND INSTRUMENT WIRING HARNESS [02L05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT39726	1	SWITCH	WORK LIGHT LESS KNOB AND NUT, (SUB FOR AT35648)
2	AT25432	1	LAMP	-
2	T28000	1	BULB	-
3	AT36515	1	WIRING LEAD	-
4	T39395	1	BRACKET	-
4	T118593	1	BRACKET	(K)
5	AR48643	1	ELECTRICAL LIGHTER	-
6	14H631	9	Nut	0.190"
7	12H246	9	LOCK WASHER	0.190"
8	AR28403	1	CIRCUIT BREAKER	-
9	AT37411	1	PRESSURE GAUGE	ENGINE OIL
10	AT62084	1	UNION FITTING	(SUB FOR AT26966, THIS APPLICATION)
11	R44302	2	Tie Band	(TUBE TO ENGINE VENT BYPASS TUBE) (SUB FOR T38630 AND T56348)
12	-	1	Part 14	2 073 MM (3/16" X 81-1/2") LONG (MAKE FROM T60804, 150M (500') BULK, (SUB FOR T38252)
13	AT62083	1	FITTING	(SUB FOR AM235T, THIS APPLICATION)
14	-	2	Part 16	(MAKE FROM AR84006 WIRE KIT)
15	-	1	Part 17	WATER TEMPERATURE (STEWART-WARNER) (SUB AT149018) (SUB FOR AT37410) ( AT61467 USE IF AVAILABLE)
15	AT104755	1	TEMPERATURE GAUGE	(K) WATER TEMPERATURE (VDO)
16	AT36514	1	WIRING HARNESS	(USED WITH ELECTRICAL ACCESSORY PACKAGE)
16	AT43192	1	WIRING HARNESS	(USED WITH ELECTRICAL ACCESSORY PACKAGE)
16	AT38976	1	WIRING HARNESS	(USED WITHOUT ELECTRICAL ACCESSORY PACKAGE) (SUB AT58038, THIS APPLICATION)
17	12M7084	1	Lock Washer	4.300 MM
17	12M7084	2	Lock Washer	(K) 4.300 MM
18	14H650	1	Nut	5/16"
18	14M7100	2	Nut	(K)
19	T38594	1	BRACKET	-
20	R44302	7	Tie Band	(SUB FOR T38630)

LEFT-HAND INSTRUMENT WIRING HARNESS [02L05]
