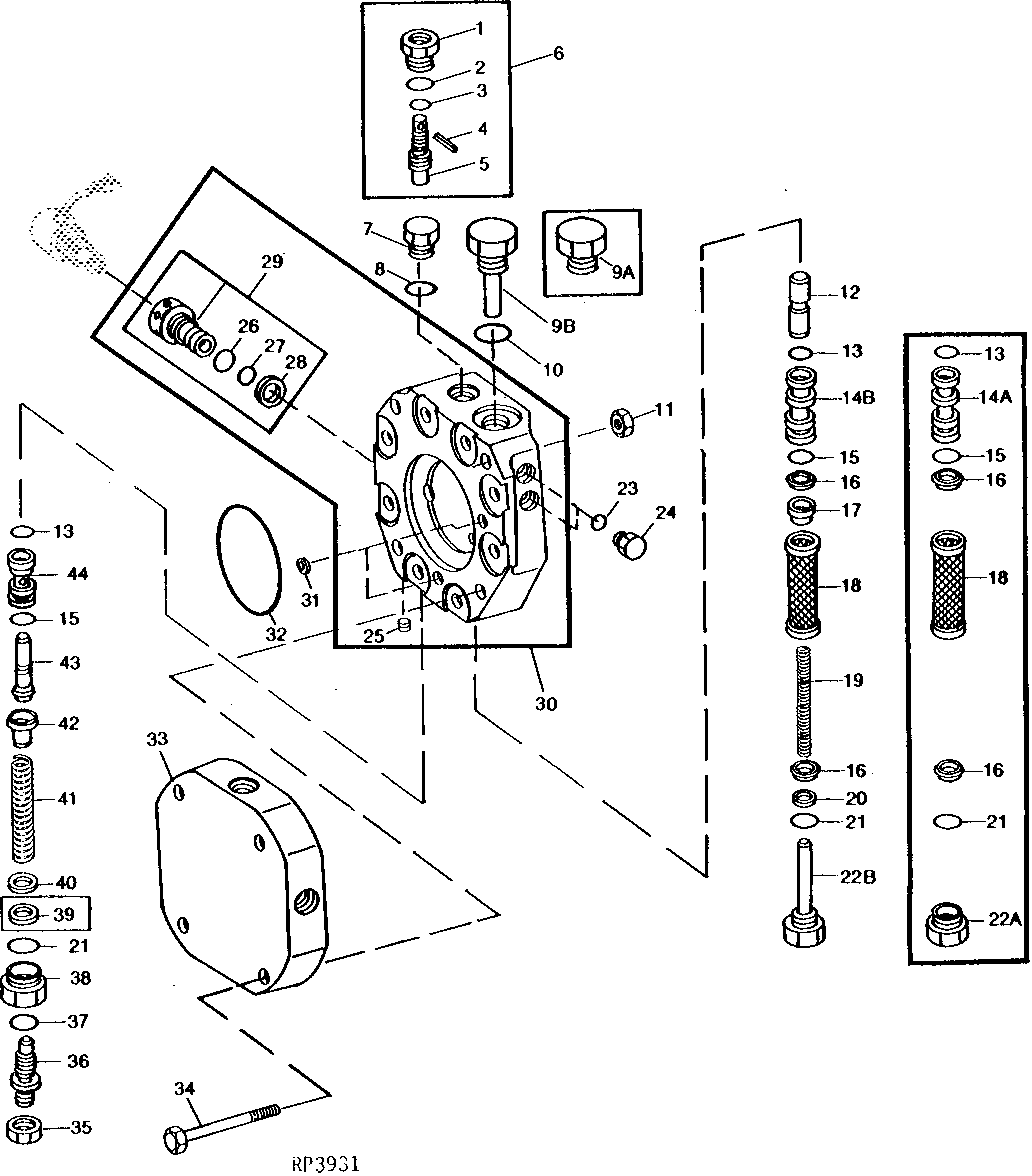

HYDRAULIC PUMP STROKE CONTROL VALVE 98 CM3 (6 IN.3) - 100 CM3 (6 IN.3) [02B10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27475	1	FITTING	-
2	R26448	1	O-Ring	-
3	A4365R	1	O-Ring	-
4	34H254	1	Spring Pin	1/8" X 1-1/2"
5	R27171	1	SCREW	-
6	AR33249	1	SCREW	(MANUAL DESTROKE)
7	R27218	1	Fitting Plug	(LESS MANUAL DESTROKE)
8	R26448	1	O-Ring	(LESS MANUAL DESTROKE)
10	R26906	1	O-Ring	-
11	14H1040	4	Nut	1/2" HS, SAE 8
12	R27172	1	VALVE	-
13	R27564	2	O-Ring	-
15	R27166	2	O-Ring	-
16	R27174	2	PACKING	-
17	R27167	1	GUIDE	-
18	R27173	1	FILTER ELEMENT	-
19	R27159	1	SPRING	-
20	24H1298	1	Washer	3/8" X 5/8" X 0.032"
20	R27170	1	SHIM	0.010"
21	U12547	2	O-Ring	(SUB FOR (2) F3171R)
23	R26287	2	O-Ring	-
24	R27216	2	DRAIN PLUG	-
25	15H560	1	Pipe Plug	1/16", (USE WITH R51913)
26	R26375	1	O-Ring	(USE WITH R51913)
27	T40308	1	O-Ring	(USE WITH R51913)
28	T57374	1	Back-Up Ring	(USE WITH R51913) (USE WITH AR90378)
29	AR90378	1	PLUG	(USE WITH R51913) (SUB FOR AR52495) (LESS ELECTRIC DESTROKE SOLENOID)
30	RE13612	1	HOUSING	(MARKED R51913 OR R54194) (SUB FOR AR56771)
31	R56755	2	WASHER	(SUB FOR A4847R)
32	R56759	1	O-RING	(SUB FOR A4728R)
33	R51244	1	ADAPTER FITTING	-
34	19H1781	4	CAP SCREW	1/2" X 3-1/2"
35	14H1021	1	NUT	7/16"
36	AR52254	1	SET SCREW	(SUB FOR AR51929, THIS APPLICATION)
37	R28782	1	O-Ring	-
38	R55907	1	FITTING	(SUB FOR R28781, THIS APPLICATION)
39	R42260	1	WASHER	(NO LONGER REQUIRED)
40	R48808	1	Washer	-
41	R55908	1	SPRING	-
42	R71563	1	GUIDE	(SUB FOR R55909)
43	R70559	1	CONTROL VALVE	(SUB RE10712, R41057 AND R27166) (SUB FOR R27472 OR R65194)
44	R69262	1	SLEEVE	(SUB RE10712, R41057 AND R27166) (SUB FOR R27471 OR R65192)
9A	R27474	1	Drain Plug	-
9B	AR51745	1	DRAIN PLUG	-
14A	R70335	1	SLEEVE	(SUB FOR R53693)
14B	R70351	1	SLEEVE	(SUB FOR R27476)
22A	R27175	1	Drain Plug	-
22B	AR26646	1	DRAIN PLUG	-

HYDRAULIC PUMP STROKE CONTROL VALVE 98 CM3 (6 IN.3) - 100 CM3 (6 IN.3) [02B10]
