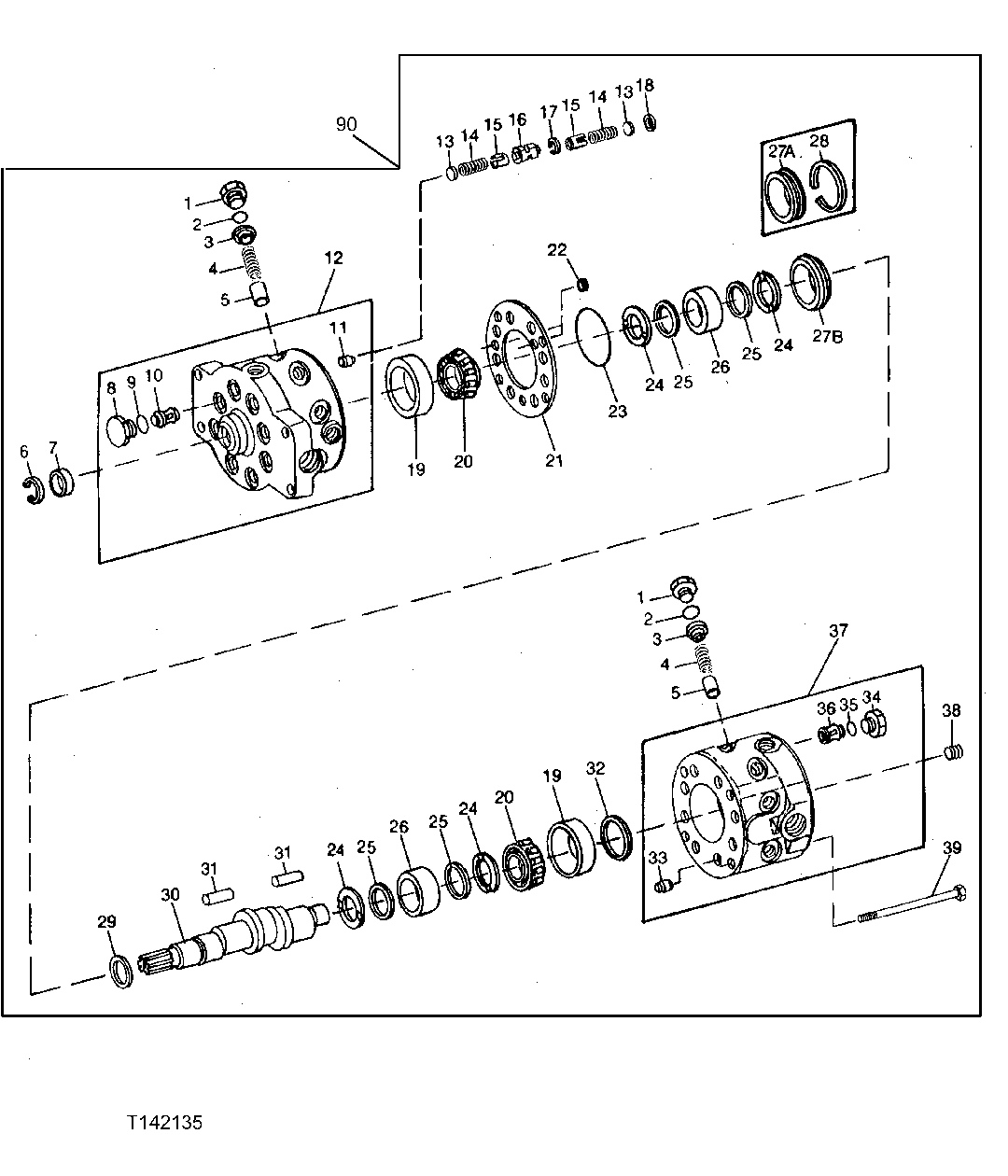

HYDRAULIC PUMP 98 CM3 (6 IN.3) (PUMP LESS SERIAL PLATE) [02B05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R45438	16	Fitting	-
2	R495R	16	O-Ring	(SUB R56463 AND AR101236, THIS APPLICATION)
2	R56463	16	O-Ring	(SUB FOR R495R)
3	AR101236	2	SHIELD	(SET OF 8) (SUB FOR R56749)
4	AR76762	2	SPRING	(SET OF 8) (SUB FOR AR55186)
5	R27150	16	PISTON	-
6	R26137	1	Snap Ring	-
7	RE28790	1	SEAL	(SUB FOR AR52224)
8	R78293	8	FITTING	-
9	R27149	8	O-Ring	-
10	AR53301	8	VALVE	(INLET)
11	R105583	8	Valve Seat Insert	-
12	AR55337	1	HOUSING	PRIMARY, (MARKED R51237) (SUB AR102495)
13	R49297	16	DISK	-
14	R39228	16	SPRING	-
15	R48738	16	GUIDE	-
16	R66353	8	STOP	(SUB FOR R54193)
17	B387R	8	SNAP RING	-
18	R107239	8	Packing	(SUB FOR R56754 OR (8) R69279)
19	JD8223	2	Bearing Cup	-
20	JD8192	2	BEARING CONE	-
21	R51242	1	PLATE	-
22	R56755	2	WASHER	(SUB FOR A4847R)
23	R56757	1	O-Ring	(SUB FOR H64810 OR R56758)
24	R71254	4	THRUST WASHER	(BRONZE) (SUB FOR R53005)
25	R53006	4	WASHER	-
26	R53004	2	BEARING RACE	-
28	R43383	1	Snap Ring	(USE WITH R51236)
29	R77611	1	SEALING WASHER	(SEALING) (SUB FOR R54192, R68252 OR RE11777)
30	R51235	1	SHAFT	-
31	R51966	52	NEEDLE ROLLER	-
32	R27478	1	SHIM	0.15 MM (.006")
32	R27479	1	SHIM	0.25 MM (.010")
33	R105583	8	Valve Seat Insert	-
34	R51912	8	FITTING	-
35	R27149	8	O-Ring	-
36	AR53301	8	VALVE	(INLET)
37	AR55336	1	HOUSING	SECONDARY, (MARKED R51234) (SUB AR102495)
38	15H280	1	Pipe Plug	1-1/4"
39	R89610	4	Screw	(SUB FOR R51243)
90	AR53067	1	HYDRAULIC PUMP	(SUB AR102495)
90	AR68863	1	HYDRAULIC PUMP	(SUB AR102495) (SUB FOR AR53067)
27A	R51236	1	SLEEVE	(SUB R70726)
27B	R70726	1	SLEEVE	-

HYDRAULIC PUMP 98 CM3 (6 IN.3) (PUMP LESS SERIAL PLATE) [02B05]
