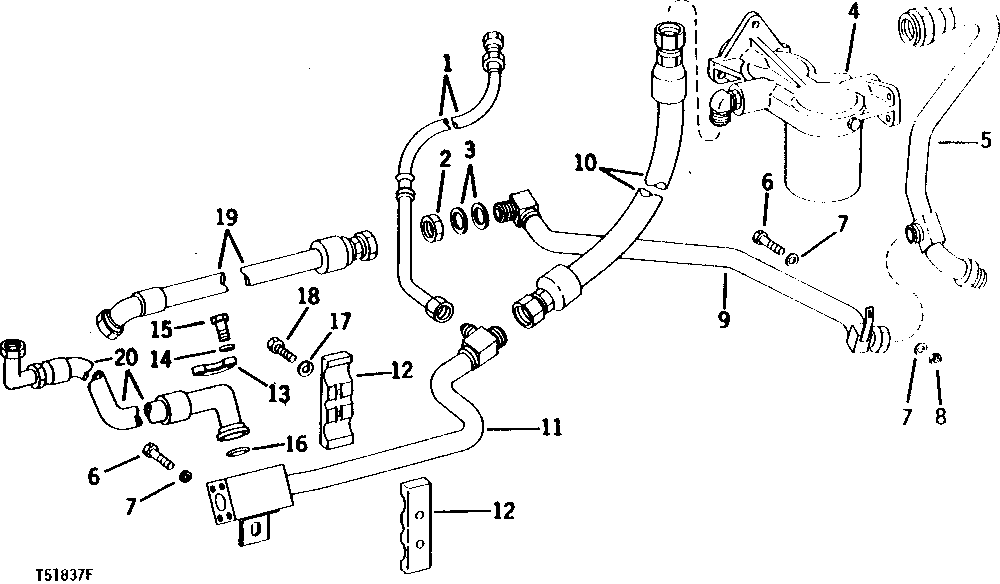

HYDRAULIC FILTER RETURN AND TRANSMISSION CHARGE LINES (SERIAL NO. -228307) [02B20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT36982	1	HYDRAULIC HOSE	1-1/16" X 584 MM (23") X 1-1/16", RETURN LINE TEE TO STEERING VALVE
2	R36619	1	NUT	-
3	T141566	2	THRUST WASHER	(SUB FOR T21424)
4	-	1	Part 4	-
5	AT36297	1	OIL LINE	FILTER OUTLET, FILTER BASE TO FRONT CHARGE HOSE
6	19H1741	2	CAP SCREW	1/2" X 1-1/8"
7	24H1625	3	Washer	17/32" X 1" X 0.120"
8	14H1040	1	Nut	1/2", (SUB FOR 14H809)
9	-	1	Part 9	FILTER OUTLET LINE TEE TO REAR CHARGE PUMP HOSE ( AT36306 NO LONGER AVAILABLE)
10	AT36303	1	HYDRAULIC HOSE - FABRICATE	1-5/8" X 625 MM (24-1/2") X 1-5/8"
11	AT36304	1	OIL LINE	FILTER RETURN TO MANIFOLD
12	T37099	2	HALF CLAMP	-
13	R29424	2	Flange Fitting	-
14	12H304	4	Lock Washer	3/8"
15	19H3483	4	Cap Screw	3/8" X 1-1/8"
16	A4730R	1	O-Ring	-
17	12H301	1	Lock Washer	1/2"
18	19H3057	1	Cap Screw	HS, SAE 8, 1/2" X 2-3/4"
19	AT36307	1	HYDRAULIC HOSE	1-5/16" X 838 MM (33") X 1-5/16", TRANSMISSION PUMP OUTLET TO FRONT CHARGE LINE, 838.4 MM (1-5/16" X 33")
20	AT36974	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 549 MM (21-1/2") X 3/4", BULLDOZER RETURN

HYDRAULIC FILTER RETURN AND TRANSMISSION CHARGE LINES (SERIAL NO. -228307) [02B20]
