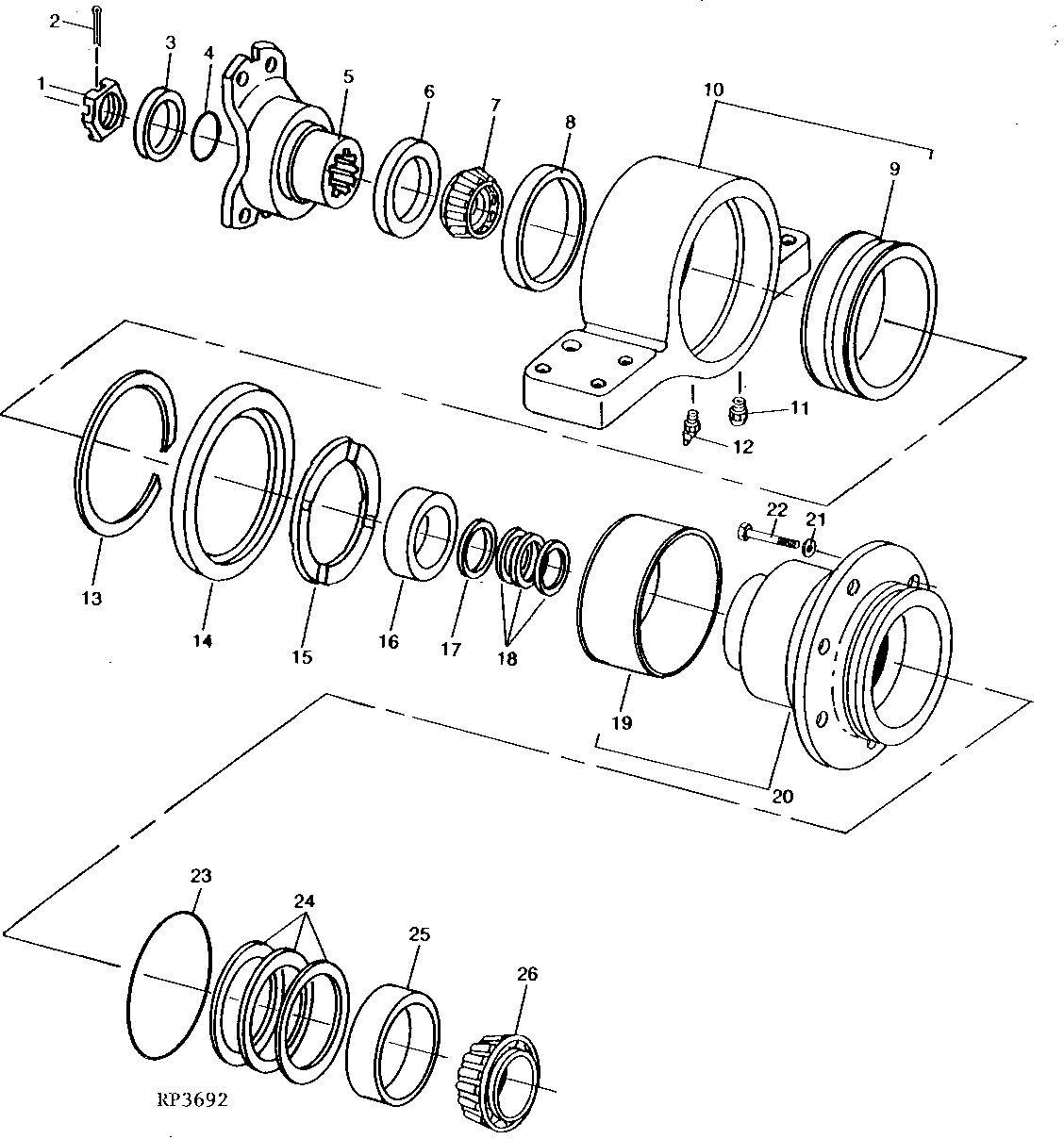

FRONT DIFFERENTIAL OSCILLATING SUPPORT AND UNIVERSAL YOKE WITH QUILL [01H01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48776	1	Nut	-
2	11M7032	1	Cotter Pin	5 X 50 MM
3	R48734	1	Washer	-
3	R48735	1	Washer	-
3	R48733	1	Washer	-
4	U10289	1	O-Ring	-
5	R44127	1	UNIVERSAL JOINT YOKE	-
6	R37410	1	Seal	(SUB RE45312)
7	JD8974	1	Bearing Cone	-
8	AR69355	1	SEAL	(SUB FOR AR52259)
9	R48580	1	BUSHING	(SUB R55522)
9	R55522	1	Bushing	-
10	AR57095	1	SUPPORT	(MARKED R52481) (SUB AR87840, AR89969, E14814 AND JD7778)
10	AR87840	1	SUPPORT	(MARKED R67430) (SUB AR98735)
11	E14814	1	Pressure Relief Fitting	-
12	JD7778	1	Lubrication Fitting	-
13	R42227	1	Snap Ring	-
14	AR52258	1	SEAL	-
15	R56298	1	Thrust Washer	(SUB FOR R48688)
16	JD8240	1	Bearing Cup	-
17	R135535	1	Spacer	(SUB FOR R45201)
18	R45197	1	Shim	0.18MM (.007")
18	R45198	1	Shim	0.25MM (.010")
18	R45199	1	Shim	0.30MM (.012")
18	R45200	1	Shim	0.38MM (.015")
19	R48583	1	SLEEVE	(USE WITH AR66777)
19	R69022	1	SLEEVE	(USE WITH AR89969)
20	AR89969	1	BEARING HOUSING W/O BEARING	(SUB AR98735)
20	AR66777	1	BEARING HOUSING W/O BEARING	(SUB FOR R54110) (SUB AR89969, AR87840, E14814 AND JD7778)
21	R47172	11	Washer	-
22	R68206	11	Cap Screw	-
23	R27796	1	O-Ring	-
24	R35365	1	Shim	0.08MM (.003")
24	R35366	1	Shim	0.18MM (.005")
24	R35367	1	Shim	0.25MM (.010")
25	JD8280	1	Bearing Cup	-
26	JD10377	1	Bearing Cone	(SUB FOR JD9004)

FRONT DIFFERENTIAL OSCILLATING SUPPORT AND UNIVERSAL YOKE WITH QUILL [01H01]
