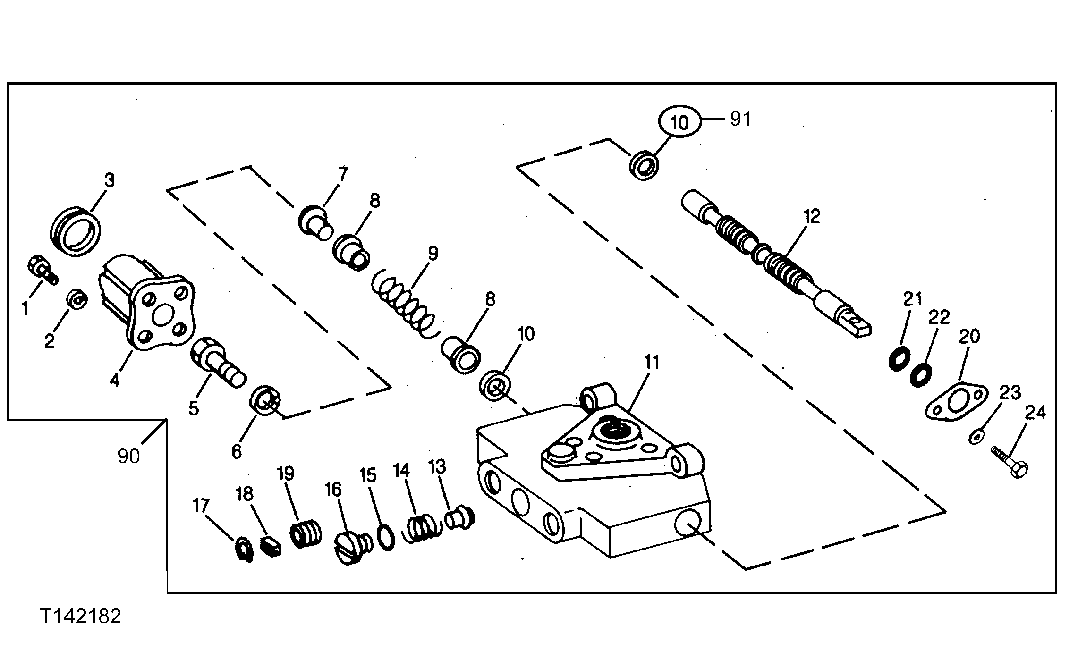

FOUR-WAY SECTION WITH ORIFICE COVER (SERIAL NO. 291755- ) [02J14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1174	4	SCREW	1/4" X 1"
2	12H302	4	Lock Washer	1/4"
3	U17387	1	DIAPHRAGM	-
4	T75985	1	COVER	(USE WITHOUT T106147)
4	T118894	1	CAP	(USE WITH T106147)
5	19H3295	1	Screw	HS, SAE 8, 3/8" X 3/4", (SUB FOR U40662)
6	U11298	1	LOCK WASHER	-
7	U17391	1	ROUND RETAINER	-
8	U17395	2	ROUND RETAINER	-
9	T34974	1	SPRING	-
10	T122063	2	O-RING	(A) (SUB FOR (2) T27593) (USE WITHOUT T106147)
10	T122064	2	O-RING	(USE WITH T106147) (SUB FOR T106371, THIS APPLICATION)
11	-	1	Part 13	(SUB AT84784)
12	-	1	Part 14	(SUB AT84784)
13	U17396	1	POPPET	-
14	U17406	1	SPRING	-
15	U17409	1	O-Ring	-
16	U17393	1	FITTING	-
17	R33282	1	Snap Ring	-
18	T62161	1	ORIFICE	-
19	T62162	1	PLUG	-
20	T106147	1	PLATE	-
21	T118736	1	SEAL	(USE WITH T106147)
22	T118737	1	THRUST WASHER	(USE WITH T106147)
23	12H302	2	Lock Washer	1/4", (USE WITH T106147)
24	19H2701	2	SCREW	1/4" X 5/8", (USE WITH T106147)
90	AT59597	1	VALVE	(SUB AT84784)
90	AT84784	1	SPOOL VALVE	-
91	AT46362	1	SEAL KIT	SEAL REPAIR (INCLUDES ALL PARTS IDENTIFIED BY (A))

FOUR-WAY SECTION WITH ORIFICE COVER (SERIAL NO. 291755- ) [02J14]
