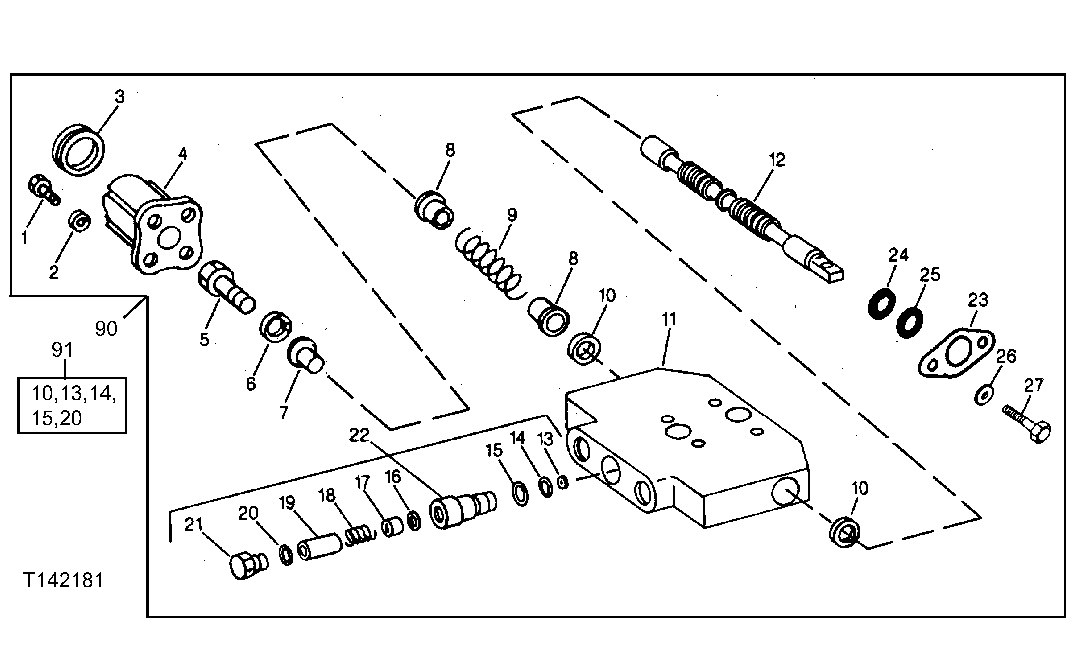

FOUR-WAY SECTION WITH FLOW CONTROL (SERIAL NO. -291754) [02J13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1174	4	SCREW	1/4" X 1"
2	12H302	4	Lock Washer	1/4"
3	U17387	1	DIAPHRAGM	-
4	T75985	1	COVER	(USE WITHOUT T106147)
4	T118894	1	CAP	(USE WITH T106147)
5	19H3295	1	Screw	HS, SAE 8, 3/8" X 3/4", (SUB FOR U40662)
6	U11298	1	LOCK WASHER	-
7	U17391	1	ROUND RETAINER	-
8	U17395	2	ROUND RETAINER	-
9	T34974	1	SPRING	-
10	T122063	2	O-RING	(A) (SUB FOR (2) T27593) (USE WITHOUT T106147)
10	T122064	2	O-RING	(USE WITH T106147) (SUB FOR T106371, THIS APPLICATION)
11	-	1	Part 13	(SUB AT84784)
12	-	1	Part 14	(SUB AT84784)
13	R27564	1	O-Ring	(A) (SUB FOR W19905)
14	T47765	1	BACK-UP RING	(A)
15	U17409	1	O-Ring	(A)
16	T47768	1	SNAP RING	-
17	-	1	Part 19	(SUB AT84784)
18	T47767	1	SPRING	-
19	-	1	Part 21	(SUB FOR T47766) ( 22H1030 NO LONGER AVAILABLE)
20	R26286	1	O-Ring	(A)
21	R27094	1	Drain Plug	-
22	AT84784	1	SPOOL VALVE	FLOW CONTROL ASSEMBLY, (SUB FOR AT46363)
23	T106147	1	PLATE	-
24	T118736	1	SEAL	(USE WITH T106147)
25	T118737	1	THRUST WASHER	(USE WITH T106147)
26	12H302	2	Lock Washer	1/4", (USE WITH T106147)
27	19H2701	2	SCREW	1/4" X 5/8", (USE WITH T106147)
90	AT46361	1	VALVE	(SUB AT84784)
90	AT59597	1	VALVE	-
90	AT84784	1	SPOOL VALVE	-
91	AT46362	1	SEAL KIT	(INCLUDES ALL PARTS IDENTIFIED BY (A))

FOUR-WAY SECTION WITH FLOW CONTROL (SERIAL NO. -291754) [02J13]
