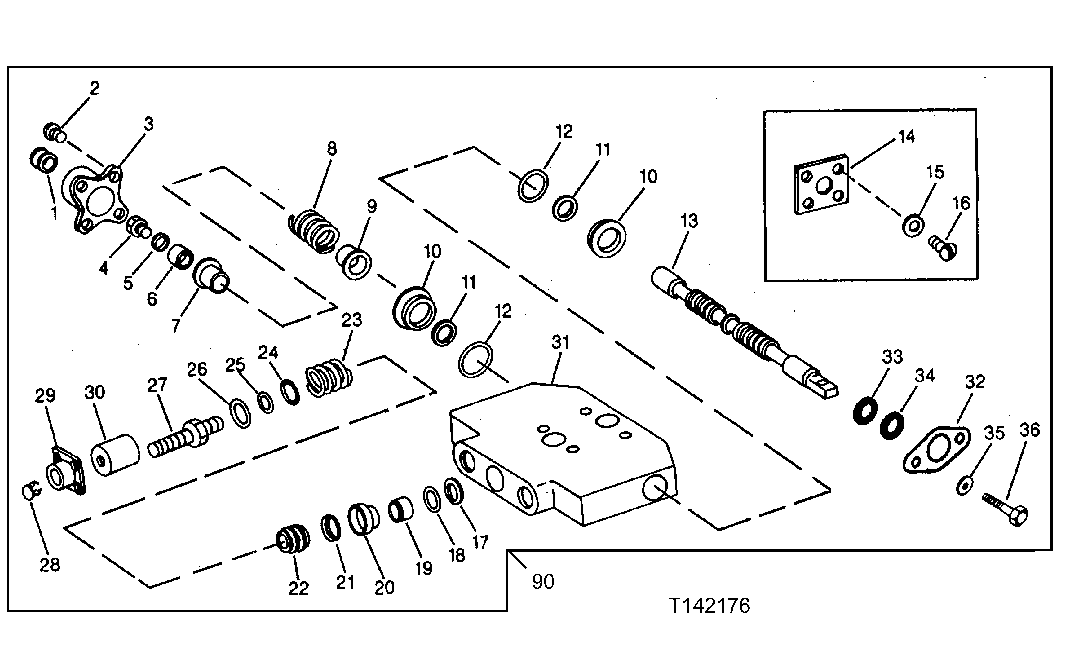

FOUR-WAY SECTION WITH FLOW CONTROL (SERIAL NO. -199824) [02I16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U17387	1	DIAPHRAGM	-
2	21H1174	4	SCREW	1/4" X 1"
3	T118894	1	CAP	(USE WITH T106147)
3	T75985	1	COVER	(USE WITHOUT T106147)
4	19H3295	1	Screw	HS, SAE 8, 3/8" X 3/4", (SUB FOR U40662)
5	U11298	1	LOCK WASHER	-
6	-	1	Part 7	(SUB AT84784)
7	U17391	1	ROUND RETAINER	-
8	T34974	1	SPRING	-
9	U17395	1	ROUND RETAINER	-
10	-	2	Part 11	(SUB AT84784)
11	T122063	2	O-RING	(SUB FOR (2) T27593) (USE WITHOUT T106147)
11	T122064	2	O-RING	(USE WITH T106147) (SUB FOR T106371, THIS APPLICATION)
12	-	2	Part 14	(SUB AT84784)
13	-	1	Part 15	(SUB AT84784)
14	-	1	Part 16	(SUB AT84784)
15	12H302	4	Lock Washer	1/4"
16	21H1310	4	SCREW	1/4" X 1/2"
17	-	1	Part 19	(SUB AT84784)
18	-	1	Part 20	(SUB AT84784)
19	-	1	Part 21	(SUB AT84784)
20	-	1	Part 22	(SUB AT84784)
21	T44185	1	LOCKING COLLAR	-
22	-	1	Part 24	(SUB AT84784)
23	-	1	Part 25	(SUB AT84784)
24	-	1	Part 26	(SUB AT84784)
25	-	1	Part 27	(SUB AT84784)
26	-	1	Part 28	(SUB AT84784)
27	-	1	Part 29	(SUB AT84784)
28	-	1	Part 30	(SUB AT84784)
29	U17388	1	COVER	-
30	-	1	Part 32	(SUB AT84784)
31	-	1	Part 33	(SUB AT84784)
32	T106147	1	PLATE	-
33	T118736	1	SEAL	(USE WITH T106147)
34	T118737	1	THRUST WASHER	(USE WITH T106147)
35	12H302	2	Lock Washer	1/4", (USE WITH T106147)
36	19H2701	2	SCREW	1/4" X 5/8", (USE WITH T106147)
90	AT40544	1	DRAIN VALVE	(SUB AT84784)
90	AT59597	1	VALVE	(SUB AT84784)
90	AT84784	1	SPOOL VALVE	COMPLETE

FOUR-WAY SECTION WITH FLOW CONTROL (SERIAL NO. -199824) [02I16]
