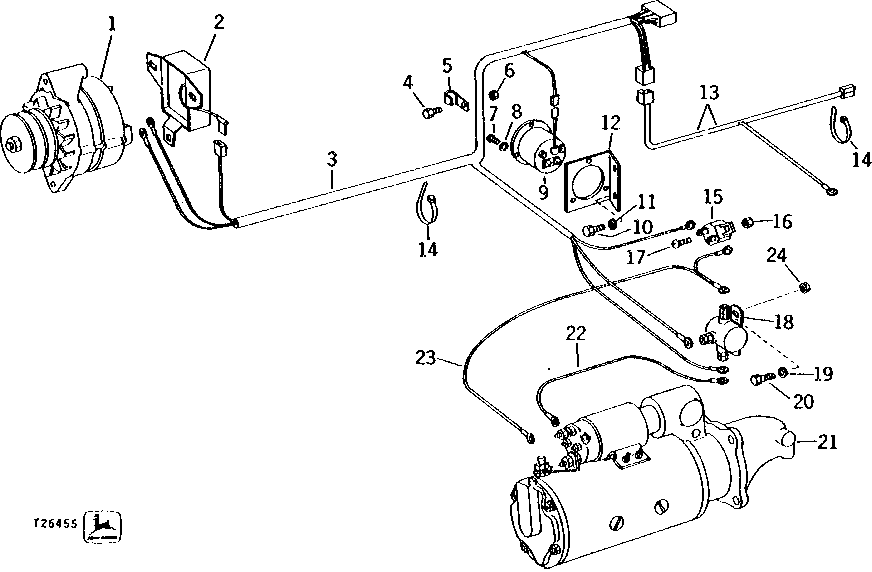

ENGINE AND TRANSMISSION WIRING HARNESS [02L07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY1900	1	ALTERNATOR	(SUB FOR AT36220) (MOTOROLA NO. 8TA2003DS) (WHEN EQUIPPED WITH CANOPY)
2	AT37636	1	VOLTAGE REGULATOR	-
3	-	1	Part 3	ENGINE ( AT36520 NO LONGER AVAILABLE) (SUB AT58036, THIS APPLICATION)
4	19H1648	1	Cap Screw	3/8" X 3/4"
5	T19935	1	Clamp	-
6	14H812	1	NUT	3/8"
7	21H1308	3	Screw	0.138" X 3/8"
8	12H321	3	Washer	0.138"
9	AT160120	1	HOUR METER	(SUB FOR AT33995 OR AT61458)
10	19H2284	2	Cap Screw	3/8" X 7/8"
11	12H304	2	Lock Washer	3/8"
12	T37287	1	BRACKET	HOUR METER
13	-	1	Part 13	TRANSMISSION ( AT36521 NO LONGER AVAILABLE) (SUB AT58037, THIS APPLICATION)
14	R44302	12	Tie Band	(SUB FOR T38630)
15	AR47711	1	CIRCUIT BREAKER	(MOUNTED ON SUMP TANK)
15	AT57645	2	CIRCUIT BREAKER	-
16	14H778	2	Nut	0.190"
17	21H1312	2	SCREW	0.190" X 1"
18	AM53945	1	Solenoid	(SUB FOR AM52191)
18	AT68973	1	Relay	(SUB FOR AT40955, THIS APPLICATION) (SUB RE38391)
18	RE38391	1	Starter Relay	-
19	12H302	2	Lock Washer	1/4"
20	19H1948	2	Cap Screw	1/4" X 3/4"
21	AR77254	1	STARTER MOTOR	(SUB FOR AR55639)
21	TY6667	1	STARTER MOTOR	(12-VOLT) (REMANUFACTURED) (JOHN DEERE) (SUB FOR TY6618)
22	-	2	Part 26	(SUB FOR AR56826, NO LONGER AVAILABLE) (SUB FOR AT36523)
23	AT74523	1	WIRING LEAD	(SUB FOR AT36522)
24	14H778	2	Nut	0.190"

ENGINE AND TRANSMISSION WIRING HARNESS [02L07]

Нет текстового описания
