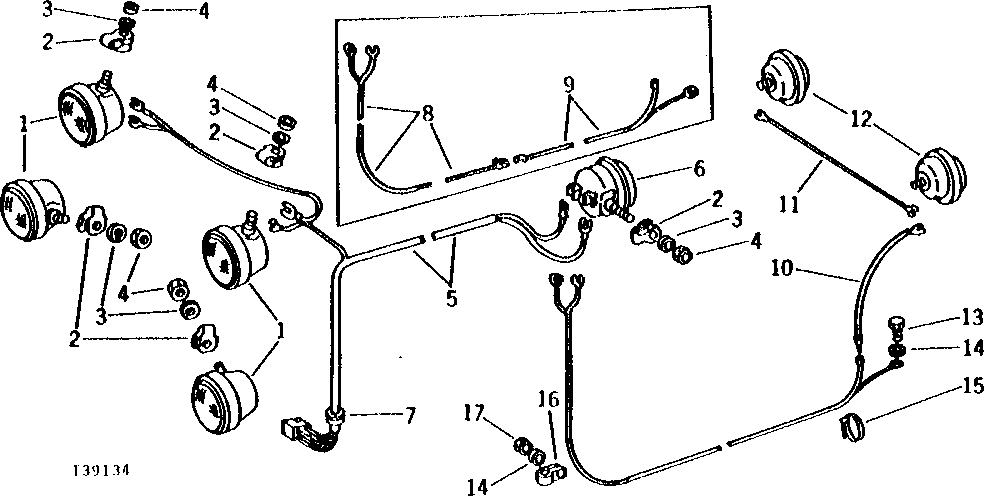

CANOPY AND BOOM LIGHT WIRING HARNESS [02L13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR77326	4	FLOODLAMP	(TWO ON FRONT OF CANOPY AND TWO IN GRILLE HOUSING)
1	AT54595	4	FLOODLAMP	(TWO ON FRONT OF CANOPY AND TWO IN GRILLE HOUSING) (SUB FOR AR28166, THIS APPLICATION)
2	M1482T	5	CLAMP	-
3	12H301	5	Lock Washer	1/2"
4	14H1040	6	Nut	1/2", (SUB FOR 14H809)
5	AT36519	1	WIRING HARNESS	-
6	AR77326	1	FLOODLAMP	REAR, (SUB FOR AT16288)
7	T24833	1	GROMMET	(SUB FOR R45210, THIS APPLICATION)
8	AT40862	1	WIRING HARNESS	(SUB AT46435)
9	AT40863	1	WIRING HARNESS	LOG ARCH WIRING, (SUB AT46435)
10	AT40864	1	WIRING LEAD	LOG ARCH HARNESS TO BOOM LAMPS
11	AT40865	1	WIRING LEAD	LAMP RIGHT TO BOOM LAMP LEFT
12	AT13380	2	FLOODLAMP	(MOUNTED IN BOOM)
12	AT51316	2	FLOODLAMP	(MOUNTED IN BOOM) (SUB FOR AR27923, THIS APPLICATION)
13	19H2284	1	Cap Screw	3/8" X 7/8"
14	24H1682	4	Washer	13/32" X 7/8" X 0.120"
15	R44302	15	Tie Band	-
16	T28862	4	Clamp	-
17	H129201	3	Lock Nut	(SUB FOR T32552)
18	AT46435	1	WIRING HARNESS	LOG ARCH WIRING AND BOOM LIGHTS FOR CANOPY

CANOPY AND BOOM LIGHT WIRING HARNESS [02L13]

Нет текстового описания
