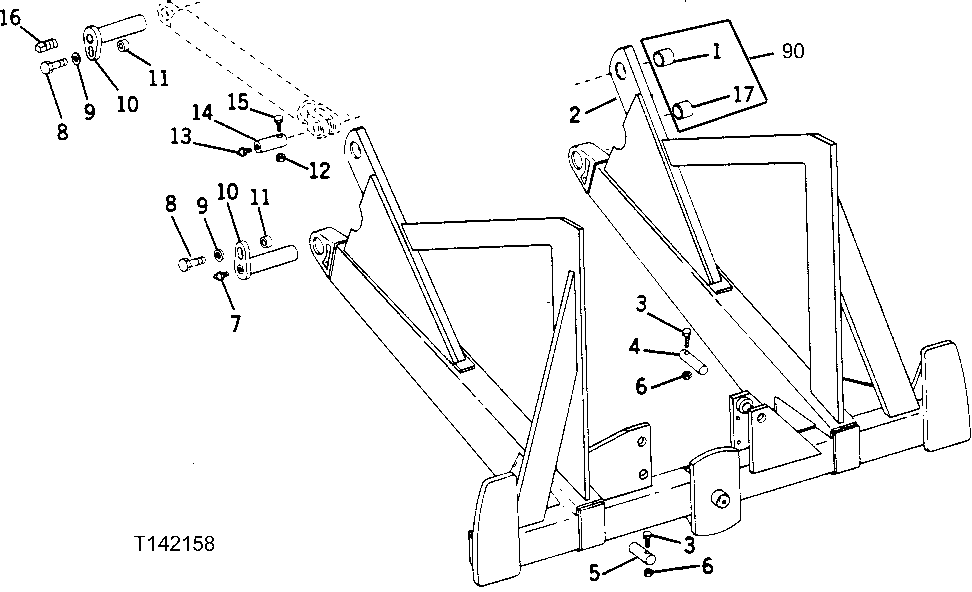

C-FRAME, PINS AND BUSHINGS (SERIAL NO. 228308- ) [02E16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T29885	2	BUSHING	(C)
2	-	1	Part 2	(SUB AT48162)
3	19H1912	2	Cap Screw	3/8" X 3-1/2"
4	U17267	1	PIN	(TILT CYLINDER HEAD END)
5	T79357	1	PIN	(TILT CYLINDER ROD END) (SUB FOR T32733)
6	H129201	2	Lock Nut	(SUB FOR T32552) 3/8"
7	JD7759	2	Lubrication Fitting	STRAIGHT, 1/8"
8	19H2898	4	Cap Screw	1/2" X 1-1/4"
9	24H1211	4	Washer	9/16" X 1-3/8" X 0.105"
10	AT35345	2	PIN	-
11	28H935	4	SPACER	1/2" X .438"
12	BP12214	2	Lock Nut	1/2"
13	JD7781	2	Lubrication Fitting	45°, 1/8"
14	T36415	1	PIN FASTENER	(LIFT CYLINDER TO BLADE LIFT FRAME)
15	19H2211	2	Cap Screw	1/2" X 5"
16	15H638	2	Pipe Plug	1/8"
17	T33141	4	BUSHING	(C) LOWER PIVOT
90	AT48162	1	FRAME	(INCLUDES PARTS MARKED (C) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE LOCATED ON PAGE SELECTIVE CONTROL VALVE OIL LINES (70-52))
