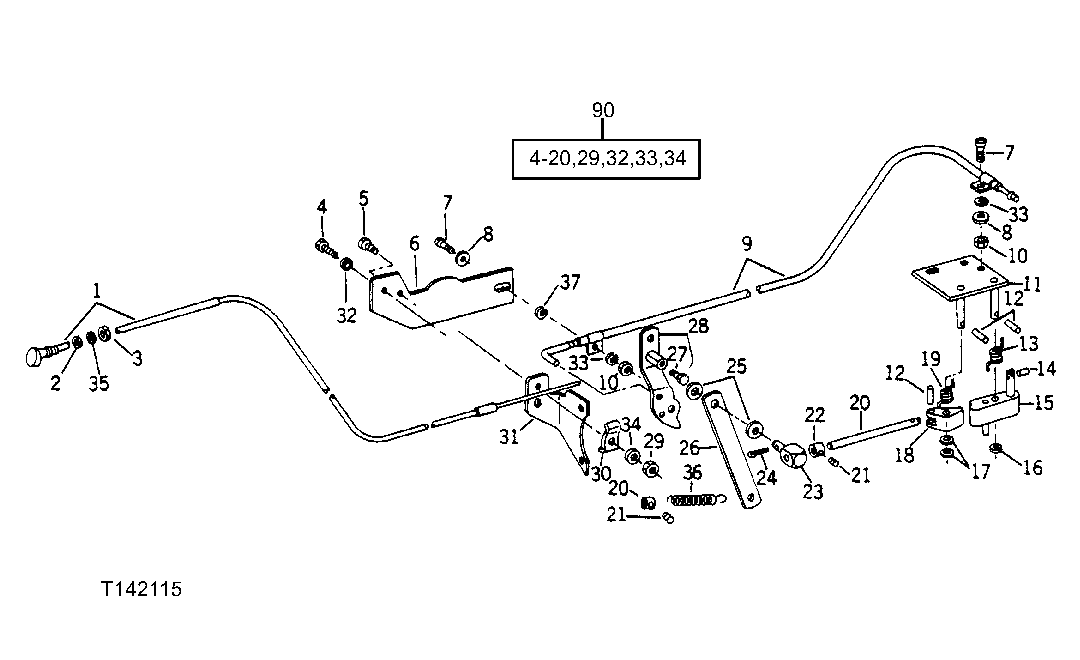

ANEROID CONTROLS AND FUEL SHUT-OFF (ENGINE SERIAL NO. 383899-430385) [01E16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR61973	1	PUSH PULL CABLE	(FUEL SHUT-OFF)
2	24M7096	1	Washer	0.413" X 0.709" X 0.063"
3	14H774	1	Nut	3/8"
4	21H1319	1	Screw	(B) 0.164" X 7/8"
5	37H44	1	Screw	(B) 0.154" X 3/8"
6	R57841	1	GUIDE	(B)
7	21H1295	2	Screw	(B) 0.190" X 5/8"
8	24H1283	2	Washer	(B) 7/32" X 1/2" X 0.049"
9	AR69541	1	PUSH PULL CABLE	(B)
10	14H631	2	Nut	(B) 0.190"
11	AR69539	1	BRACKET	(B)
12	34H228	3	SPRING PIN	(B) 3/32" X 9/16"
13	R57885	1	SPRING	(B) (YELLOW)
14	34H206	1	SPRING PIN	(B) 5/64" X 1/4"
15	AR73544	1	BELLCRANK	(B) (SUB FOR AR69538) (ALSO ORDER R60649)
16	B1664R	1	SHIM	(B)
17	24H1286	1	Washer	(B) 9/32" X 1/2" X 1/16", (SUB FOR R31577, THIS APPLICATION)
18	R60649	1	LATCH	(B) (SUB FOR R57838) (ALSO ORDER AR73544)
19	R57714	1	SPRING PIN	(B) (GREEN)
20	R57840	1	SHEAR PIN	(B)
21	R30725	1	SCREW	-
22	R54294	1	SHIFT COLLAR	-
23	R42912	1	SWIVEL	-
24	11M7077	1	Cotter Pin	1.600 X 25 MM
25	24H1286	2	Washer	9/32" X 1/2" X 1/16"
26	R55065	1	LEVER	-
27	R60921	1	SCREW	-
28	AR63565	1	LEVER	-
29	14H605	1	Nut	(B) 0.164"
30	R53300	1	CLIP	-
31	R55066	1	BRACKET	-
32	12M7084	1	Lock Washer	(B) 4.300 MM
33	12H246	2	LOCK WASHER	(B) 0.190"
34	12H315	1	Lock Washer	(B) 0.164"
35	12H304	1	Lock Washer	3/8"
36	R26372	1	SPRING	-
37	12H295	1	Lock Washer	0.190"
90	AR74611	1	KIT	STARTING FUEL CONTROL (FOR ENGINES PRIOR TO ENGINE SERIAL NO. 383898) (SUB FOR AR70084) (CONTAINS ALL PARTS IDENTIFIED BY (B))

ANEROID CONTROLS AND FUEL SHUT-OFF (ENGINE SERIAL NO. 383899-430385) [01E16]
