Открытый узел

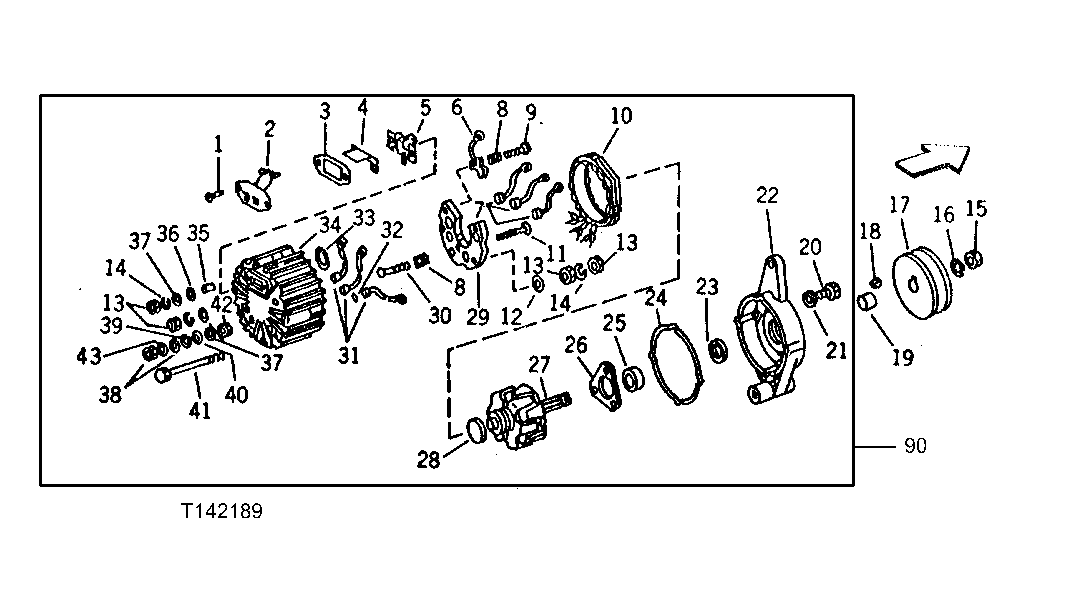

ALTERNATOR (MOTOROLA NO. 8TA2003DS) (WHEN EQUIPPED WITH CANOPY) (SERIAL NO. -228377) [03B10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37H47	2	SCREW	NO. 8 X 1/2"
2	-	1	Part 2	( AT38685 USE IF AVAILABLE)
3	-	1	Part 3	( T54446 USE IF AVAILABLE)
4	-	1	Part 4	( T25357 NO LONGER AVAILABLE) (SUB T46862 IF AVAILABLE)
5	-	1	Part 5	( AT38684 USE IF AVAILABLE)
6	-	1	Part 6	( AT23186 USE IF AVAILABLE)
7	-	3	Part 7	RECTIFYING POSITIVE AT23184 USE IF AVAILABLE
8	-	5	Part 8	( T25350 USE IF AVAILABLE)
9	-	2	Part 9	( T25348 USE IF AVAILABLE)
10	-	1	Part 10	( AT23183 USE IF AVAILABLE)
11	-	1	Part 11	OUTPUT TERMINAL ( T25347 USE IF AVAILABLE)
12	R39804	3	WASHER	-
13	14H778	10	Nut	0.190"
14	12H246	9	LOCK WASHER	0.190"
15	14H866	1	Nut	5/8"
16	12H294	1	Lock Washer	5/8"
17	AT38961	1	PULLEY	-
18	26H9	1	SHAFT KEY	1/8" X 5/8"
19	-	1	Part 19	( T25343 USE IF AVAILABLE)
20	21H1299	3	SCREW	0.164" X 3/8"
21	12H315	3	Lock Washer	0.164"
22	-	1	Part 22	FRONT ( AT23181 USE IF AVAILABLE)
23	-	1	Part 23	( T25345 USE IF AVAILABLE)
24	-	1	Part 24	( T25344 USE IF AVAILABLE)
25	JD9449	1	Ball Bearing	FRONT, (SUB FOR AT23188)
26	-	1	Part 26	( T25346 USE IF AVAILABLE)
27	-	1	Part 27	( AT23182 USE IF AVAILABLE)
28	AT23189	1	Ball Bearing	REAR
29	-	1	Part 29	POSITIVE DIODE ( T25352 USE IF AVAILABLE)
30	-	3	Part 30	( T25349 USE IF AVAILABLE)
31	-	3	Part 31	RECTIFYING NEGATIVE AT23185 USE IF AVAILABLE
32	-	3	Part 32	( T25355 USE IF AVAILABLE)
33	R15030	1	O-RING	-
34	-	1	Part 35	REAR ( T46540 USE IF AVAILABLE)
34	AT38683	1	HOUSING	REAR, (SUB T46540 IF AVAILABLE)
35	-	1	Part 36	( T25353 USE IF AVAILABLE)
36	-	2	Part 37	( T25354 USE IF AVAILABLE)
37	24H1283	1	Washer	7/32" X 1/2" X 0.049"
38	14H860	2	Nut	1/4"
39	12H302	1	Lock Washer	1/4"
40	24H1285	1	Washer	17/64" X 7/16" X 0.065"
41	R15045	4	SCREW	-
42	-	1	Part 43	( T25360 USE IF AVAILABLE)
43	12H297	1	Lock Washer	INTERNAL-TOOTH, 1/4"
90	TY1900	1	ALTERNATOR	(SUB FOR AT36220) (SUB AR84306, THIS APPLICATION) LESS PULLEY AND REGULATOR, 22 AMPHERE (MOTOROLA) (REMANUFACTURED)

ALTERNATOR (MOTOROLA NO. 8TA2003DS) (WHEN EQUIPPED WITH CANOPY) (SERIAL NO. -228377) [03B10]

Нет текстового описания
