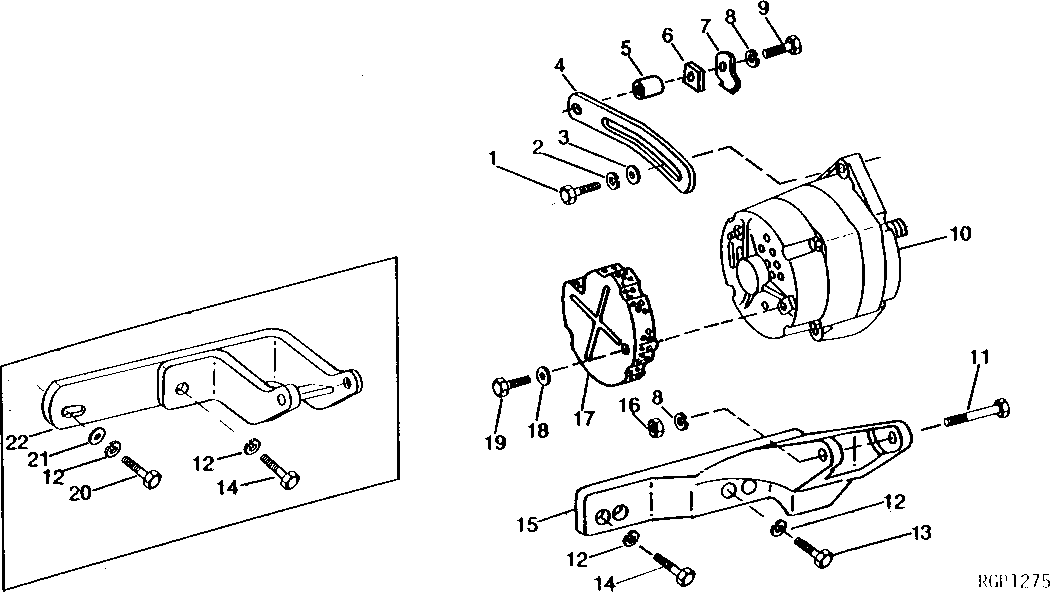

ALTERNATOR AND MOUNTING BRACKET (ENGINE SERIAL NO. 228378- ) [03B08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2127	1	Cap Screw	5/16" X 7/8"
2	12H303	1	Lock Washer	5/16"
3	24H1122	1	Washer	3/8" X 7/8" X 0.083"
4	T32853	1	Strap	-
5	28H1496	1	Spacer	-
6	R31655	1	STRAP	-
7	R27528	1	CLAMP	-
8	12H304	2	Lock Washer	3/8"
9	19H2284	1	Cap Screw	3/8" X 7/8"
10	TY6686	1	Alternator	(REMANUFACTURED) (SUB FOR RE27109 OR RE31694)
10	TY6625	1	Alternator	(REMANUFACTURED) (SUB FOR AR93446)
10	TY6686	1	Alternator	(REMANUFACTURED) (SUB FOR RE31694 OR RE27109)
10	RE31694	1	Alternator	(DELCO-REMY NO. 1101345)
10	-	1	Part 10	(SUB FOR AR84306, AR93446, RE13797 OR RE27109, THIS APPLICATION) (SUB RE31694 OR TY6686) (ALSO ORDER R71248, 12M7006, 19M7163 AND 19M7065)
11	19H1912	1	Cap Screw	3/8" X 3-1/2"
12	12H293	2	Lock Washer	7/16"
13	19H3205	1	Cap Screw	7/16" X 1-1/2"
14	19H2731	1	Cap Screw	7/16" X 1-3/8"
15	R70372	1	BRACKET	-
16	14H1076	1	Nut	3/8"
17	AT45617	1	SHIELD	-
18	24H1136	1	Washer	11/32" X 11/16" X 0.065"
19	19H2705	1	Cap Screw	5/16" X 1"
20	19H1773	1	CAP SCREW	7/16" X 1-1/8"
21	24M7044	1	Washer	13 X 20 X 2 MM
22	AR72363	1	BRACKET	(SUB R70372 AND 19H1978)

ALTERNATOR AND MOUNTING BRACKET (ENGINE SERIAL NO. 228378- ) [03B08]
