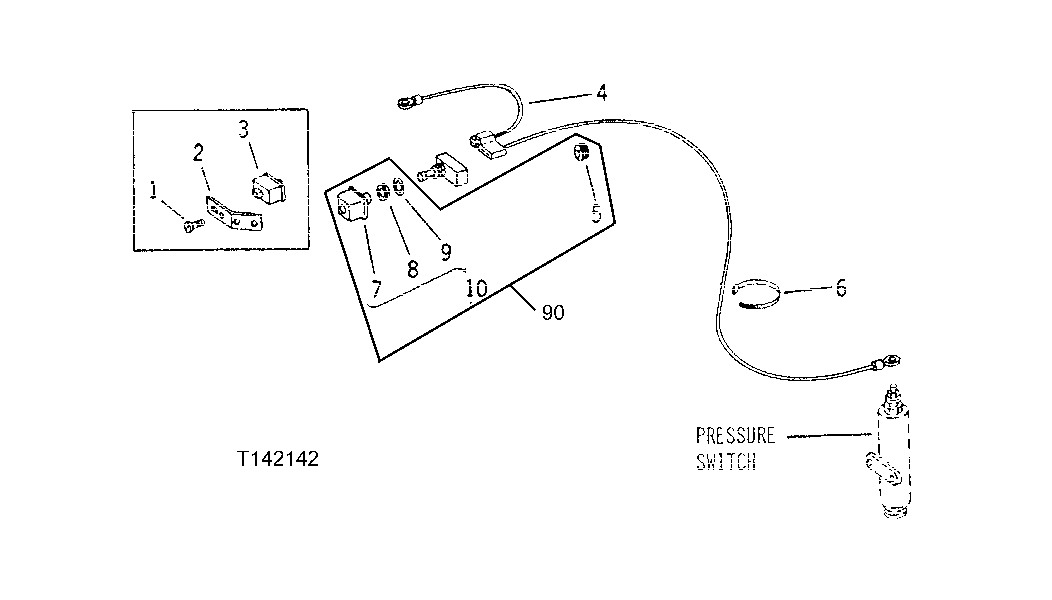

ACCUMULATOR PRESSURE WARNING SWITCH WIRING HARNESS (WITH AUXILIARY STEERING ACCUMULATOR) [02C06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37H13	1	Screw	NO. 8 X 7/8", (USE WITH AT41776)
2	T42905	1	BRACKET	(USE WITH AT41776)
3	AT41780	1	AUDIBLE WARNING ALARM	(USE WITH AT41776)
4	AT62547	1	WIRING LEAD	(SUB FOR AT41777) (ALSO ORDER AT43442)
5	R27180	1	Grommet	(A)
6	R44302	4	Tie Band	(SUB FOR T38630)
7	T61054	1	LENS	(A)
8	-	1	Part 8	(A) ( T52039 USE IF AVAILABLE)
9	-	1	Part 9	(A) ( T52040 USE IF AVAILABLE)
10	AT43442	1	AUDIBLE WARNING ALARM	(A)
90	AT58771	1	MOUNTING PARTS	(SUB FOR AT41776 AND AT48915) (SUB AT71041) (ALSO ORDER AT41779 ACCUMULATOR) (ALSO ORDER (4) AR105277 ACCUMULATORS) (INCLUDES PARTS MARKED (A) ON THIS PAGE PLUS ONE T43753 SOLENOID LEAD, FOUR R44302 B T56890 SAFETY LABEL AND PARTS ON PAGES LISTED IN FOOTNOTE LOCATED ON PAGE ACCUMULATOR PRESSURE WARNING SWITCH (79-30))

ACCUMULATOR PRESSURE WARNING SWITCH WIRING HARNESS (WITH AUXILIARY STEERING ACCUMULATOR) [02C06]

Нет текстового описания
