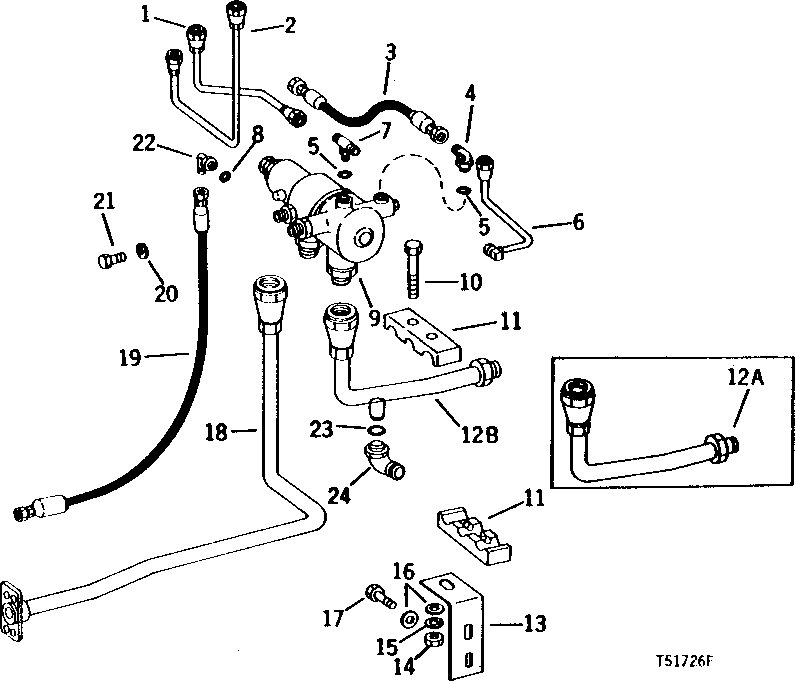

ACCUMULATOR AND PRESSURE CONTROL VALVE OIL LINES [02B23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT37487	1	BRAKE LINE	ACCUMULATOR TO PRESSURE CONTROL VALVE
2	AT37490	1	LINE	ACCUMULATOR TO BRAKE VALVE, (SUB AR45235, AT37092, R26286 AND T18891)
3	AT34784	1	HYDRAULIC HOSE - FABRICATE	9/16" X 508 MM (20") X 9/16", (SUB FOR AT37524)
4	AT35601	1	FITTING	-
4	AT35121	1	Elbow Fitting	-
5	R26448	2	O-Ring	-
6	AT37488	1	OIL LINE	-
7	AT36465	1	Tee Fitting	-
8	R26286	1	O-Ring	-
9	-	1	Part 10	( AT36308 - NO LONGER AVAILABLE)
10	19H1820	1	Cap Screw	1/2" X 3"
11	T37099	2	HALF CLAMP	-
13	T38332	1	ANGLE	-
14	14H1040	1	Nut	1/2", (SUB FOR 14H809)
15	12H301	1	Lock Washer	1/2"
16	24H1625	3	Washer	17/32" X 1" X 0.120"
17	19H3385	2	Cap Screw	1/2" X 1-1/8"
18	AT36302	1	OIL LINE	-
19	AT34784	1	HYDRAULIC HOSE - FABRICATE	9/16" X 508 MM (20") X 9/16", (SUB FOR AT37524)
19	AT36984	1	HYDRAULIC HOSE - FABRICATE	1/2" X 889 MM (35") X 1/2"
20	R42729	3	Washer	-
21	19H2284	3	Cap Screw	3/8" X 7/8"
22	AT37092	1	ELBOW FITTING	-
23	R26448	1	O-Ring	-
24	AT35121	1	Elbow Fitting	-
12A	AT36299	1	LINE	(SUB AT55830, R27218 AND R26448)
12B	AT55830	1	LINE	-

ACCUMULATOR AND PRESSURE CONTROL VALVE OIL LINES [02B23]
