WIRING HARNESS AND BATTERY CABLES [01J07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

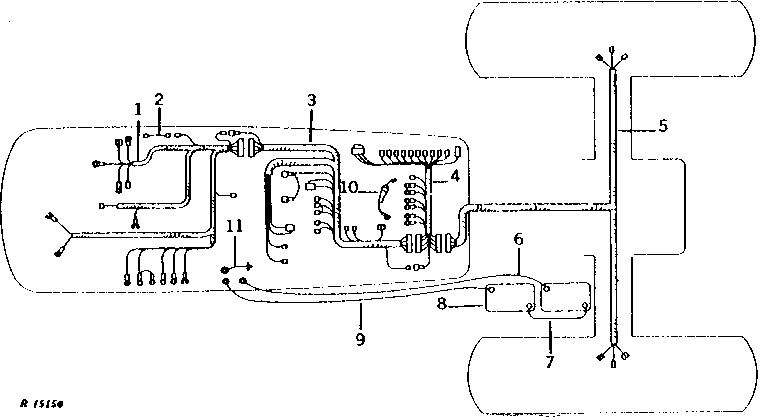

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T13744	1	Clamp	-
1	R45211	5	Clamp	-
1	28H1862	1	Washer	3/8" X 7/32"
1	19H2252	1	CAP SCREW	1/2" X 1-3/16"
1	12H304	1	Lock Washer	3/8"
1	24H1305	1	Washer	13/32" X 13/16" X 0.065"
1	R44302	1	Tie Band	-
1	AR47461	1	WIRING HARNESS	ALTERNATOR TO MAIN WIRING HARNESS
2	-	1	Part 9	TO HORN, (SUB AR46730) (SEE PAGE 80-6)
3	A3411R	1	Grommet	DASH LAMP LEAD TO DASH
3	-	1	Part 17	FOR NO FLASHER ( AR41694, NO LONGER AVAILABLE)
3	F3084R	1	CLIP	DASH LAMP LEAD TO DASH
3	B1828R	1	Bushing	-
3	T13814	1	Clamp	MAIN WIRING HARNESS TO L.H. DASH TO CONTROL SUPPORT SCREW
3	R27539	1	CLAMP	MAIN WIRING HARNESS TO CONTROL SUPPORT
3	AR48594	1	Flasher	WARNING LAMP, (SUB FOR AR38453)
3	AR49350	1	WIRING HARNESS	(SUB FOR AR47460)
4	AR47498	1	WIRING HARNESS	CONTROL SUPPORT COVER
5	AR41684	1	WIRING HARNESS	LAMP
6	AR47005	1	GROUND CABLE	NEGATIVE
7	AR47003	1	BATTERY CABLE	BATTERY
8	AR46116	2	DRY CHARGED BATTERY	6 VOLT, 900 COLD CRANKING AMPS AT 3°F, 430 MINUTE RESERVE CAPACITY AT 25 AMPS
9	AR47004	1	BATTERY CABLE	POSITIVE
9	R49921	1	Clamp	BATTERY CABLES TO CLUTCH HOUSING, (SUB FOR R44605)
9	19H1648	1	Cap Screw	3/8" X 3/4", CABLE CLAMP TO CLUTCH HOUSING
9	12H304	1	Lock Washer	3/8"
10	AR47547	1	WIRING LEAD	WITH FUSE
10	AR47548	1	Fuse	25 AMP
11	AR46820	1	WIRING LEAD	6 ROUND (STARTER)
