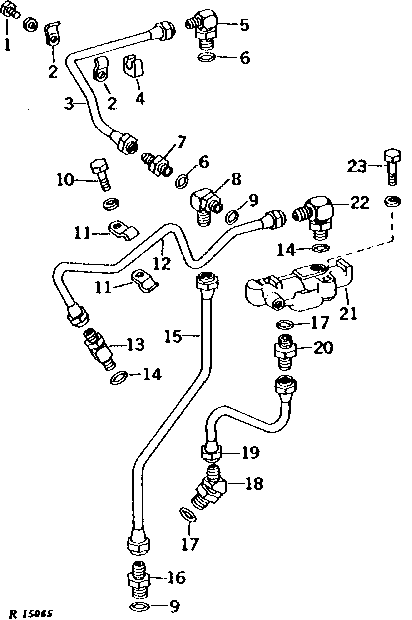

UPPER PRESSURE CONTROL VALVE OIL PIPES [01F21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	1	Lock Washer	3/8"
1	19H1648	1	Cap Screw	3/8" X 3/4"
2	R31183	2	CLAMP	-
3	AR45683	1	LINE	SELECTIVE CONTROL VALVE PRESSURE
4	-	1	Part 5	( R26989 - NO LONGER AVAILABLE)
5	AT35120	1	Elbow Fitting	(SUB FOR AR37017 AND AT32337)
6	R26375	3	O-Ring	-
7	R27237	1	Fitting	-
8	AR35718	1	TEE FITTING	-
9	R26906	2	O-Ring	-
10	19H2676	1	Cap Screw	3/8" X 1"
10	12H304	1	Lock Washer	3/8"
11	R42357	2	CLAMP	-
12	AR31988	1	OIL LINE	PRESSURE CONTROL VALVE TO STEERING VALVE
13	R49018	1	FITTING	(SUB FOR AR35725)
14	R26286	2	O-Ring	-
15	AR35717	1	OIL LINE	PRESSURE CONTROL VALVE TO CONTROL SUPPORT BASE
16	R27270	1	Fitting	-
17	R26287	2	O-Ring	-
18	AR35223	1	ELBOW FITTING	-
19	AR44632	1	OIL LINE	PRESSURE CONTROL VALVE TO STEERING VALVE
20	R27527	1	ADAPTER FITTING	-
21	R40559	1	HOUSING	-
22	RE56322	1	Tee Fitting	(SUB FOR AR26771 OR AT32333)
23	19H3065	1	Cap Screw	3/8" X 2"
23	19H2633	1	Cap Screw	3/8" X 1-1/2"
23	12H304	2	Lock Washer	3/8"

UPPER PRESSURE CONTROL VALVE OIL PIPES [01F21]

Нет текстового описания
