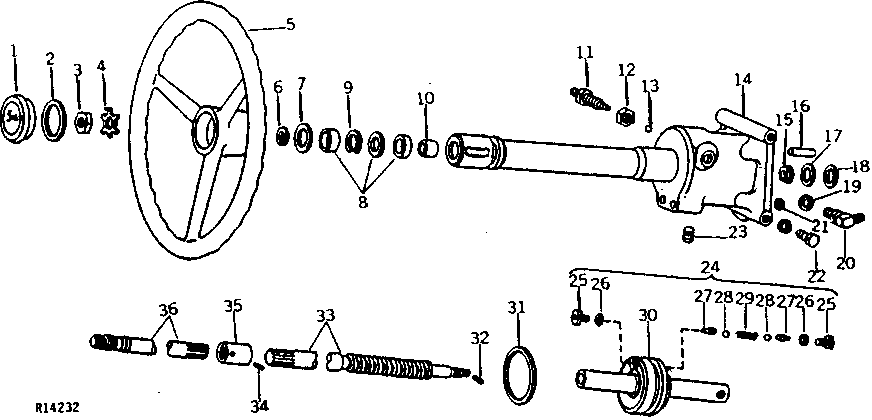

STEERING VALVE CYLINDER, SHAFT, AND PISTON [01E23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R47998	1	CAP	(SUB FOR R34324 AND R45792, THIS APPLICATION)
2	B3690R	1	O-Ring	-
3	14H904	1	Nut	3/4"
4	R71650	1	LOCK WASHER	-
5	AR26625	1	STEERING WHEEL	(SUB FOR T17148, THIS APPLICATION)
6	B169R	1	SNAP RING	-
7	R42629	1	WASHER	-
8	R32730	1	SEAL	(A) (SUB FOR AR34172, THIS APPLICATION)
9	R26933	1	SNAP RING	-
10	R27320	1	BUSHING	-
11	R27299	1	SCREW	-
12	R27453	1	Nut	-
13	400R	1	Ball	1/4"
14	AR32700	1	CYLINDER	STEERING VALVE, WITH BUSHING, BEARING, PLUG AND DOWEL PINS, (MARKED R34118) (SUB AR47289)
14	AR47289	1	CYLINDER	STEERING VALVE, WITH BUSHING, BEARING, PLUG AND DOWEL PINS, (MARKED R45297)
15	R27087	1	WASHER	-
16	R32186	2	DOWEL PIN	-
17	R26441	1	BACK-UP RING	(A)
18	A3606R	1	O-RING	(A)
19	R26448	1	O-Ring	(A)
20	AT35121	1	Elbow Fitting	(SUB FOR AR26725)
21	AR67783	1	O-RING KIT	(A) STEERING VALVE CYLINDER TO COVER PACKING, (SUB FOR AR42009)
22	19H3239	4	Cap Screw	3/8" X 1-1/4"
22	12H304	4	Lock Washer	3/8"
23	15H558	1	Pipe Plug	1/8"
24	AR30297	1	PISTON	WITH ROD AND SYNCHRONIZING VALVE SHAFT
25	R31202	2	VALVE	-
26	R26287	2	O-Ring	-
27	R31201	2	SHAFT	-
28	H871R	2	Ball	1/4"
29	R11066	1	SPRING	(SUB FOR A4816R, THIS APPLICATION)
30	AR30298	1	PISTON	WITH ROD
31	R40567	1	WASHER	(A)
32	11M7081	1	Cotter Pin	2.500 X 20 MM
33	R34125	1	SHAFT	-
34	34H282	1	Spring Pin	3/16" X 1"
35	R27319	1	SPLINED COUPLING	-
36	R73737	1	SHAFT	(SUB FOR R37426)
..	AR39585	1	KIT	STEERING PISTON, CYLINDER AND VALVE ASSEMBLY OVERHAUL
