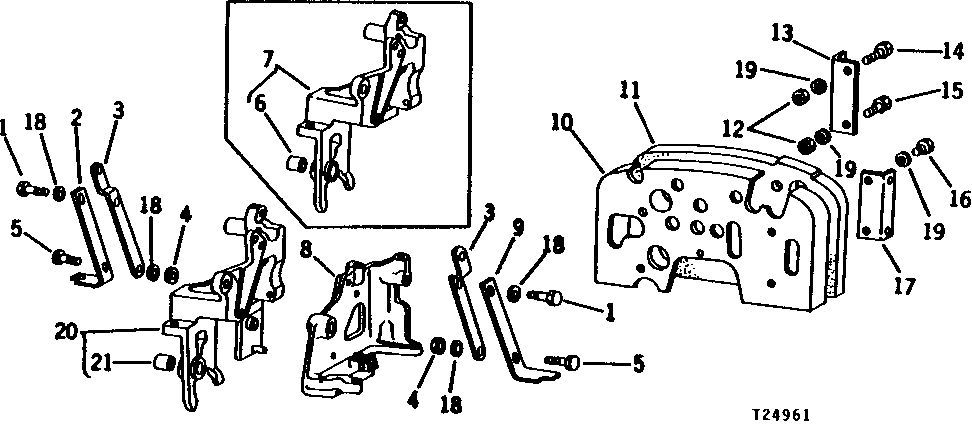

STEERING VALVE BRACKET AND HOOD BAFFLE [01G18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3483	3	Cap Screw	3/8" X 1-1/8"
2	R31231	1	SUPPORT	L.H.
3	R31229	2	SUPPORT	( R31229 NO LONGER AVAILABLE)
4	14H812	2	NUT	3/8"
5	19H2676	1	Cap Screw	3/8" X 1"
6	R27567	1	BUSHING	-
7	AR53470	1	BRACKET	L.H. WITH BUSHING, (MARKED R49637) (SUB FOR AR35577, MARKED R36083)
8	R47079	1	BRACKET	R.H. (SUB FOR R32390)
9	R31230	1	SUPPORT	R.H.
10	-	1	Part 10	( AR34927, NO LONGER AVAILABLE)
11	R56059	1	PAD	(SUB FOR R34562)
12	14H812	2	NUT	3/8", (TRACTORS LESS SELECTIVE CONTROL)
13	R26895	1	ANGLE	(TRACTORS LESS SELECTIVE CONTROLS) ( R26895 NO LONGER AVAILABLE)
14	19H1726	1	Cap Screw	3/8" X 2-1/4", (TRACTORS LESS SELECTIVE CONTROL)
15	19H1765	1	Cap Screw	3/8" X 1-3/4", (TRACTORS LESS SELECTIVE CONTROL)
16	19H2284	2	Cap Screw	3/8" X 7/8"
17	R26895	1	ANGLE	( R26895 NO LONGER AVAILABLE)
18	12H310	5	Lock Washer	3/8"
19	12H304	4	Lock Washer	3/8"
20	AR53470	1	BRACKET	L.H. WITH BUSHING, (MARKED R49637)
21	R27567	1	BUSHING	-

STEERING VALVE BRACKET AND HOOD BAFFLE [01G18]
