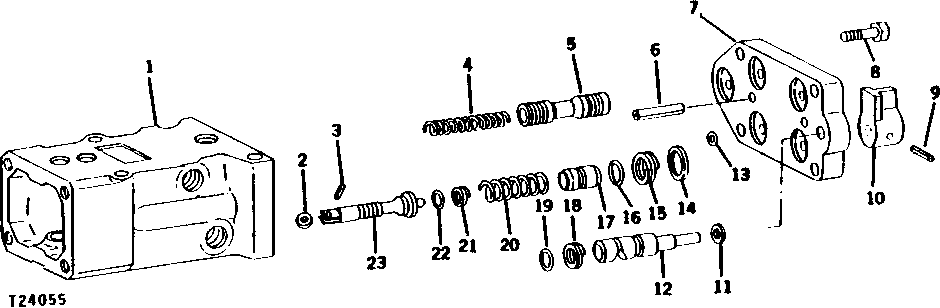

SELECTIVE CONTROL VALVE POPPET, METERING AND FLOW CONTROL VALVES [01G15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR40828	1	HOUSING	(MARKED R40599) WITH GUIDES, METERING SHAFTS AND VALVES
2	R51409	4	SPACER	(SUB FOR R41613)
3	34H242	4	Spring Pin	1/8" X 7/16"
4	R41549	1	SPRING	-
5	R52549	1	SHUT-OFF VALVE	(SUB FOR R41154)
6	34H284	1	Spring Pin	3/16" X 1-1/4"
7	AR40688	1	COVER	(SUB FOR R40899)
8	19H3239	4	Cap Screw	3/8" X 1-1/4"
9	34H231	1	SPRING PIN	3/32" X 3/4"
10	R41338	1	ARM	-
11	R41339	1	Shim	.76 MM (.030")
12	R41333	1	VALVE	(SUB R52547, R52549 AND R52394 VALVE DETENT KIT)
12	R41333	1	VALVE	(SUB R52547 AND R52549) (8SC3 IS A MODEL NO.)
12	R52547	1	VALVE	(8SC4 IS A MODEL NO.)
13	R34812	1	O-Ring	-
14	R26149	6	PACKING	-
15	R41057	1	BACK-UP RING	-
16	R27166	4	O-Ring	-
17	R41156	4	GUIDE	POPPET VALVE
18	R40937	1	Back-Up Ring	-
19	P46051	1	O-Ring	-
20	R65501	2	Spring	(SUB FOR R41055, THIS APPLICATION)
20	R65502	2	Spring	(SUB FOR R41055)
21	R26484	4	Back-Up Ring	(4 USED, PRESSURE VALVE; 2 USED RETURN VALVE)
22	A3917R	4	O-Ring	(4 USED PRESSURE VALVE, 2 USED RETURN VALVE) (SUB FOR R65286)
23	AR56120	4	VALVE	(SUB FOR AR45647 AND AR52629)
..	-	1	Part 27	SINGLE, (TRACTORS WITH ROCKSHAFT) ( AR47473 NO LONGER AVAILABLE)
..	-	1	Part 28	( AR47474, NO LONGER AVAILABLE) SINGLE, (TRACTORS LESS ROCKSHAFT)

SELECTIVE CONTROL VALVE POPPET, METERING AND FLOW CONTROL VALVES [01G15]
