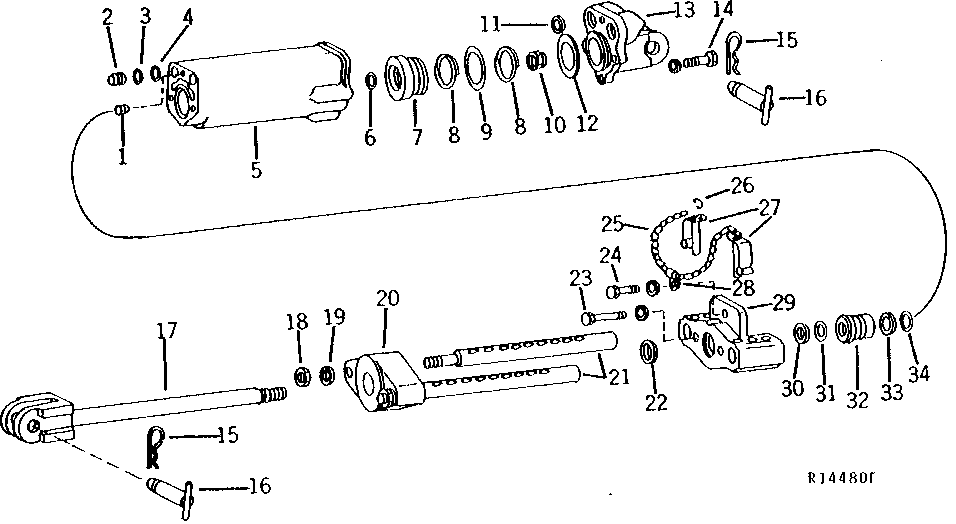

REMOTE CYLINDER PARTS (MECHANICAL STOP) [01H20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	15H561	1	Pipe Plug	1/2"
2	R34131	1	Plug	(A)
3	R32588	1	Back-Up Ring	(A)
4	R459R	1	O-Ring	(A)
5	R35447	1	Cylinder	-
6	R27564	1	O-Ring	-
7	R44297	1	Piston	-
8	R35472	2	Back-Up Ring	(A)
9	F1430R	1	O-Ring	(A)
10	R45620	1	LOCK NUT	(SUB FOR R41198)
11	A4723R	2	Washer	(A)
12	F1427R	1	Washer	(A)
13	R35452	1	Cylinder Head	-
14	19H3653	4	Cap Screw	9/16" X 2"
14	12H317	4	Lock Washer	9/16"
15	A3581R	2	Spring Locking Pin	-
16	AR47825	2	Pin Fastener	(A) (SUB FOR AA6309R)
17	AR45544	1	ROD	(A) WITH YOKE AND PIN
18	14H905	2	Nut	(A) 3/4"
19	12H236	2	Lock Washer	(A) 3/4"
20	R36952	1	Stop	(A)
21	R44287	2	Rod	(A)
22	R35738	1	Seal	(A)
23	19H1726	2	Cap Screw	(A) 3/8" X 2-1/4"
23	12H304	2	Lock Washer	(A) 3/8"
24	19H3483	1	Cap Screw	(A) 3/8" X 1-1/8"
24	12H304	1	Lock Washer	(A) 3/8"
25	R49193	1	Link Chain	(A) (SUB FOR A3184R)
26	D2913R	2	Link	(A)
27	AR45536	2	PIN	(A) WITH SPRING
28	T13073	1	Clip	(A)
29	R44286	1	Guide	(A)
30	R35473	1	Back-Up Ring	(A)
31	R29463	1	O-Ring	(A)
32	R36951	1	Guide	(A)
33	R35474	1	Back-Up Ring	(A)
34	T11220	1	O-Ring	(A)
..	AR45534	1	Kit	TO CONVERT 3-1/2" X 8" REMOTE CYLINDER, WITH HYDRAULIC STOP TO REMOTE CYLINDER WITH MECHANICAL STOP
