Открытый узел

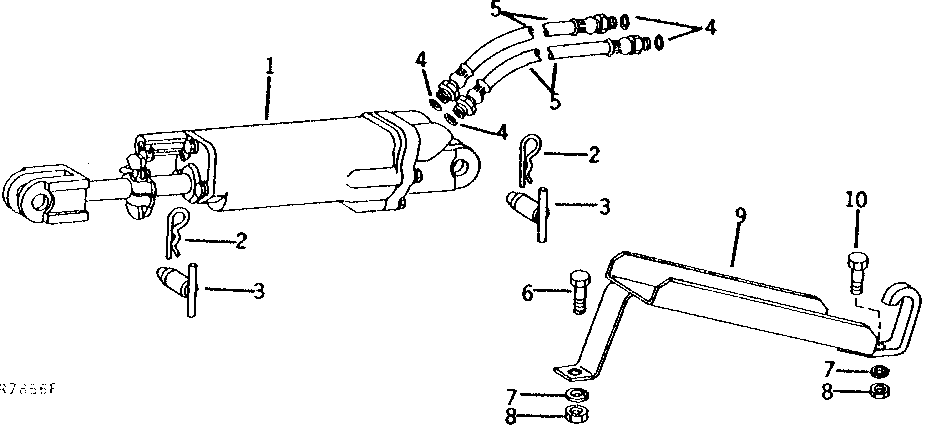

REMOTE CYLINDER, HOSES AND CARRIER [01H18]

REMOTE CYLINDER, HOSES AND CARRIER [01H18]

REMOTE CYLINDER, HOSES AND CARRIER [01H18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

REMOTE CYLINDER, HOSES AND CARRIER [01H18]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	( AA6309R NO LONGER AVAILABLE) (SUB AR36303 IF AVAILABLE)
1	AR35261	1	CYLINDER	HYDRAULIC STOP TYPE, WITH ATTACHING PIN (SUB AR36157)
2	A3581R	2	Spring Locking Pin	MECHANICAL STOP TYPE, WITH ATTACHING PIN (SUB AR36301)
3	AR47825	2	Pin Fastener	-
4	R26375	4	O-Ring	-
5	R36795	2	Hydraulic Hose	3 048 MM (1/2" X 120") LONG
6	19H2898	1	Cap Screw	1/2" X 1-1/4", (TRACTORS WITH ONE CARRIER)
6	19H1820	1	Cap Screw	1/2" X 3", (TRACTORS WITH TWO CARRIERS)
7	12H301	2	Lock Washer	1/2", (TRACTORS WITH ONE CARRIER)
8	14H1040	2	Nut	1/2", (SUB FOR 14H809) (TRACTORS WITH ONE CARRIER)
9	-	1	Part 11	(TRACTORS LESS ROCKSHAFT) ( AR35236 NO LONGER AVAILABLE)
10	19H1815	1	Cap Screw	1/2" X 1-1/4", (TRACTORS WITH ONE CARRIER)
10	19H3057	1	Cap Screw	1/2" X 2-3/4", (TRACTORS WITH TWO CARRIERS)
10	R1801R	2	SPACER	(FOR ROW-CROP TRACTORS LESS ROCKSHAFT)
..	AR36157	1	CYLINDER	HYDRAULIC STOP TYPE, AND HOSES (CONSISTS OF AR35261 REMOTE CYLINDER WITH ATTACHING PINS AND AR36158 FLEXIBLE OIL LINES AND O-RINGS)
..	-	1	Part 16	MECHANICAL STOP TYPE, AND HOSES (CONSISTS OF AR36303 REMOTE CYLINDER WITH ATTACHING PINS AND AR36158 FLEXIBLE OIL LINES AND O-RINGS) ( AR36303 USE IF AVAILABLE)
..	AR45534	1	Kit	TO CONVERT 3-1/2" X 8" REMOTE CYLINDER WITH HYDRAULIC STOP TO REMOTE CYLINDER WITH MECHANICAL STOP
