PISTONS, RINGS, CONNECTING ROD, AND LINERS [01B12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	D2824R	12	SNAP RING	-
2	R35053	6	PISTON PIN	STANDARD
2	R36413	6	BUSHING	(NLA) .003" OVERSIZE (MARKED YELLOW)
2	R36414	6	PISTON PIN	(NLA) .005" OVERSIZE (MARKED RED)
3	R36328	6	BUSHING	-
4	R35049	12	SCREW	(SUB R48316)
4	R66453	12	Cap Screw	(SUB FOR R48316)
5	R48317	12	Sleeve	(USE WITH AR59420) (MARKED R53286)
6	AR36666	6	CONNECTING ROD	(MARKED R40238) (SUB AR70911)
6	AR86987	6	CONNECTING ROD	(MARKED R53286 OR R58881) (SUB SE500084) (SUB FOR AR59420 OR AR70911)
6	SE500084	6	CONNECTING ROD REMAN	(REMANUFACTURED)
7	AR57207	1	BEARING	.002" UNDERSIZE, (PKG. OF TWO R52541) (SUB FOR AR35191)
7	AR57210	1	BEARING	.030" UNDERSIZE, (PKG. OF TWO R52544) (SUB FOR AR35195)
7	AR57209	1	BEARING	.020" UNDERSIZE, (PKG. OF TWO R52543) (SUB FOR AR35193)
7	AR57208	1	BEARING	.010" UNDERSIZE, (PKG. OF TWO R52542) (SUB FOR AR45221)
7	AR53020	1	BEARING	STANDARD (PKG. OF TWO R49385) (SUB FOR AR35661)
8	AR41295	6	PISTON RING KIT	-
9	AR41293	6	PISTON	(MARKED AR41294)
9	AR61896	6	PISTON	(MARKED AR61897) (SUB AR41293, THIS APPLICATION) (SUB RE16549)
9	AR41293	6	PISTON	(MARKED AR41294)
9	RE16549	6	PISTON	-
10	R42366	6	CYLINDER LINER	-
11	AR55950	6	PACKING	-
12	AR55951	6	PACKING	(SUB FOR AR51957)

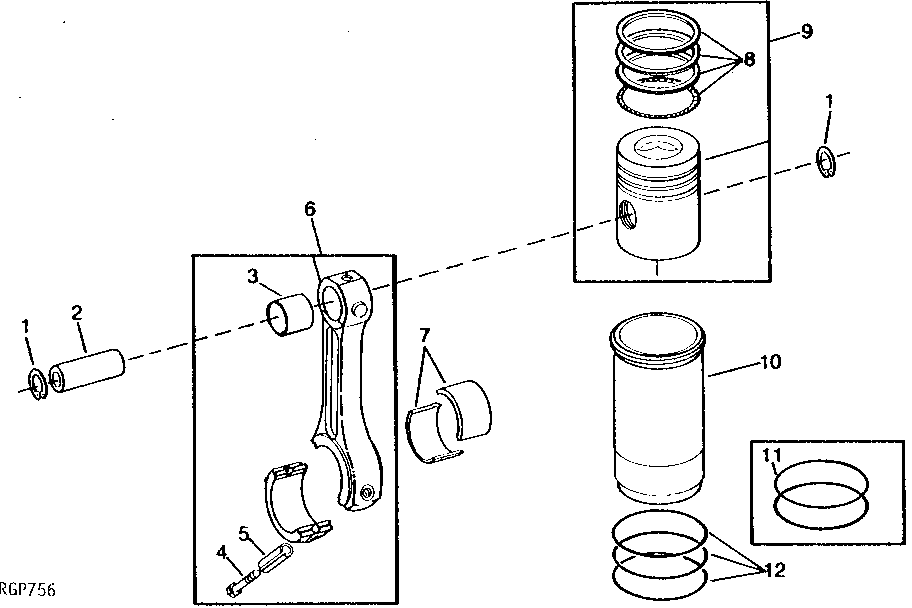

PISTONS, RINGS, CONNECTING ROD, AND LINERS [01B12]
