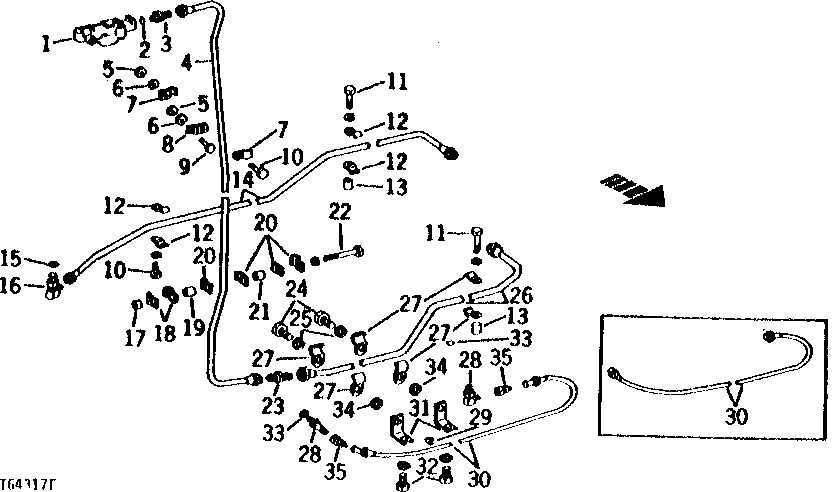

LOWER PRESSURE CONTROL VALVE OIL PIPES [01F22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R40559	1	HOUSING	-
2	R26906	1	O-Ring	-
3	R27270	1	Fitting	-
4	AR35720	1	OIL LINE	HYDRAULIC PUMP TO PRESSURE CONTROL VALVE, REAR
5	14H812	2	NUT	3/8"
6	12H304	2	Lock Washer	3/8"
7	R40663	2	CLAMP	-
8	R40165	1	CLAMP	(NO LONGER AVAILABLE)
9	19H3483	1	Cap Screw	3/8" X 1-1/8"
10	19H1648	3	Cap Screw	3/8" X 3/4"
10	12H304	2	Lock Washer	3/8"
11	12H304	2	Lock Washer	3/8"
11	19H2979	2	CAP SCREW	3/8" X 2"
12	R27531	6	Clamp	-
13	28H1495	2	Spacer	3/8" X 1"
14	AR35236	1	OIL LINE	HYDRAULIC PUMP TO OIL FILTER RELIEF VALVE
15	U12547	1	O-Ring	(SUB FOR F3171R)
16	AR26747	1	ELBOW FITTING	-
17	R28040	1	WASHER	-
18	R27720	2	CLAMP	-
19	28H1527	1	Spacer	3/8" X 1-3/8"
20	R35726	10	CLAMP	-
21	28H1697	1	Spacer	3/8" X 3/4"
22	19H1912	1	Cap Screw	3/8" X 3-1/2"
22	12H304	1	Lock Washer	3/8"
23	R35717	1	Fitting	-
24	19H2284	2	Cap Screw	3/8" X 7/8"
24	12H304	2	Lock Washer	3/8"
25	24H1305	2	Washer	13/32" X 13/16" X 0.065"
26	AR35239	1	OIL LINE	OIL PRESSURE
27	R40663	6	CLAMP	-
27	R47576	6	CLAMP	-
28	AT32335	2	ELBOW FITTING	(SUB FOR AR26746)
29	R21551	2	CLIP	-
30	AT114025	1	HYDRAULIC HOSE - FABRICATE	PUMP SEAL DRAIN, (SUB FOR AR42284 AND AR79710) (ALSO ORDER (2) R64170)
31	R40166	2	ANGLE	-
32	19H1936	2	Cap Screw	3/8" X 3/4"
32	12H304	2	Lock Washer	3/8"
33	R26287	2	O-Ring	-
34	24H1652	2	Washer	13/32" X 11/16" X 7/64"
35	R64170	2	ADAPTER FITTING	-
..	AR21969	1	Plug	-

LOWER PRESSURE CONTROL VALVE OIL PIPES [01F22]

Нет текстового описания
